Steel Light Poles

utility poles

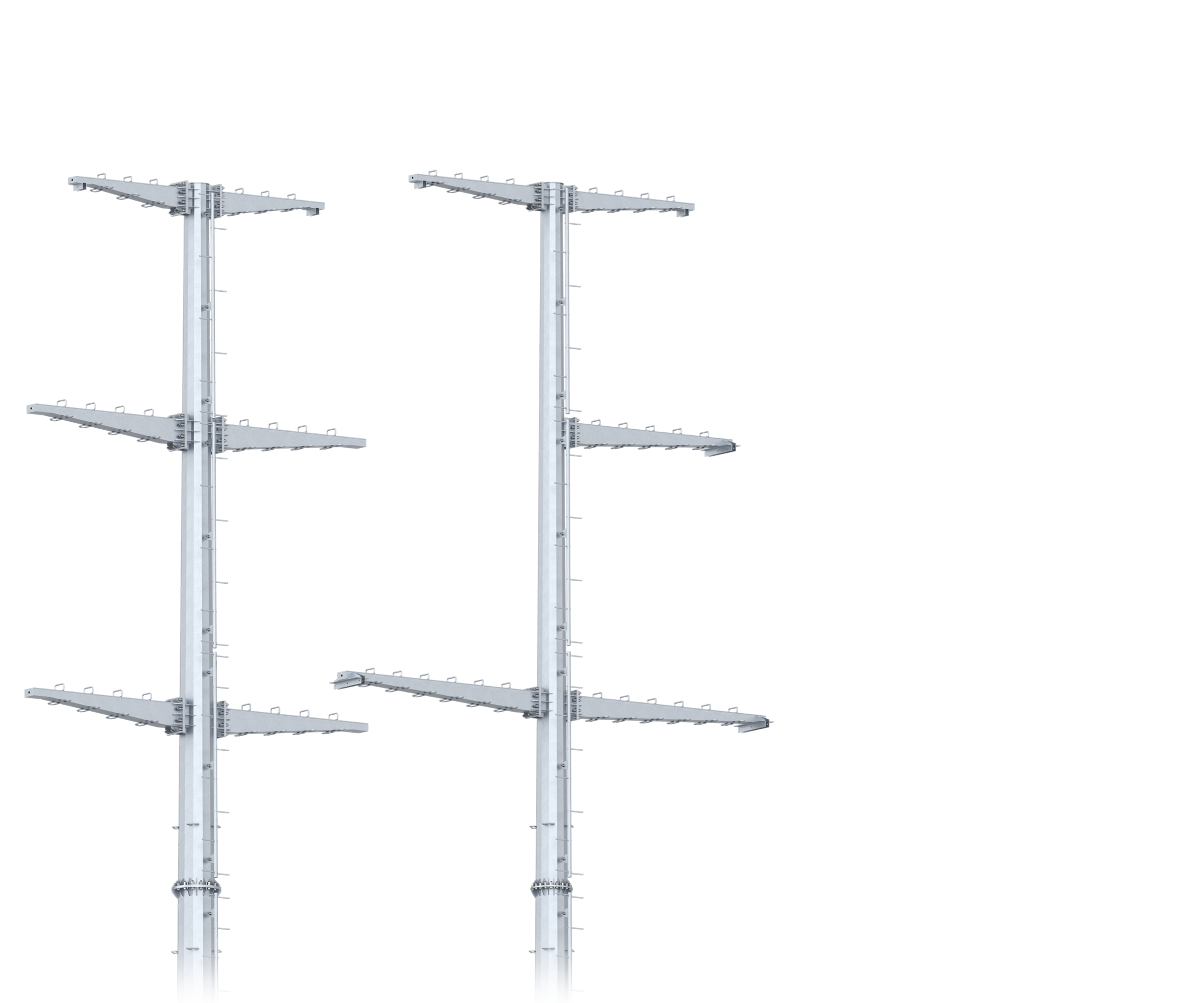

Galvanized Steel Power
Distribution Poles

Strong. Safe. Built for Power Transmission.

Product Description

Utility poles are the ideal solution for locations where regular maintenance, safety, and accessibility are essential. Designed with a built-in hinge mechanism at mid-height, these poles can be lowered by a single operator without the use of ladders, cranes, or elevated work platforms—offering a safer and more cost-effective alternative to traditional fixed poles.

Perfect for street lighting, parking lots, parks, and security areas, mid-hinged poles make lighting maintenance easier, faster, and safer—especially in remote or hazardous environments.

Key Features

High-Strength Steel Structure
Made from Q235/Q345 or ASTM A572-grade steel with tensile strength up to 620 MPa for excellent mechanical performance.

Custom Configurations
Pole height, wall thickness, arm types, flange base, and bracket arrangements are fully customizable per client design.

Customizable Head Frame & Brackets
Modular head frames allow flexible mounting of different light angles, brands, and layouts—ensuring that every lighting project meets exact photometric requirements.

Safe & Fast Installation
Lightweight and easy to transport with pre-drilled mounting holes and precise flange connections for on-site efficiency.

Wide Application Range
Suitable for low-voltage to high-voltage (up to 500kV) transmission, substation support, rural electrification, and communication integration.

Certified Manufacturing
Produced under ISO9001 and CE standards with AWS D1.1 welding certification and NDT-tested structures.

Technical information

Item	Specification
Product Name	Galvanized Steel Utility Pole
Pole Height	6m ~ 35m (customized)
Pole Shape	Tapered / Polygonal / Round / Tubular
Material	Q235, S355, ASTM GR65
Wall Thickness	2.5mm ~ 14mm
Surface Treatment	Hot-Dip Galvanization (≥85μm), optional powder coating
Galvanization Standard	ISO1461 / ASTM A123
Design Wind Speed	Up to 160 km/h (customizable)
Connection Type	Slip Joint / Flange Connection
Mounting Method	Anchor Bolts + Base Plate
Application Areas	Power Transmission & Distribution, Substations, Smart Grid Systems
Voltage Range	LV / MV / HV (up to 500kV)
Minimum Yield Strength	≥355 MPa
Tensile Strength	Up to 620 MPa
Welding Standard	AWS D1.1 (internal & external), flaw detection passed
Certification	CE / ISO9001 / SGS
Service Life	≥30 years with proper maintenance
Operating Temperature	-40°C to +70°C
Warranty	5 Years
