Fastest sample production time
Hot-dip galvanizing, 20 years of corrosion resistance
Perfect after-sales service

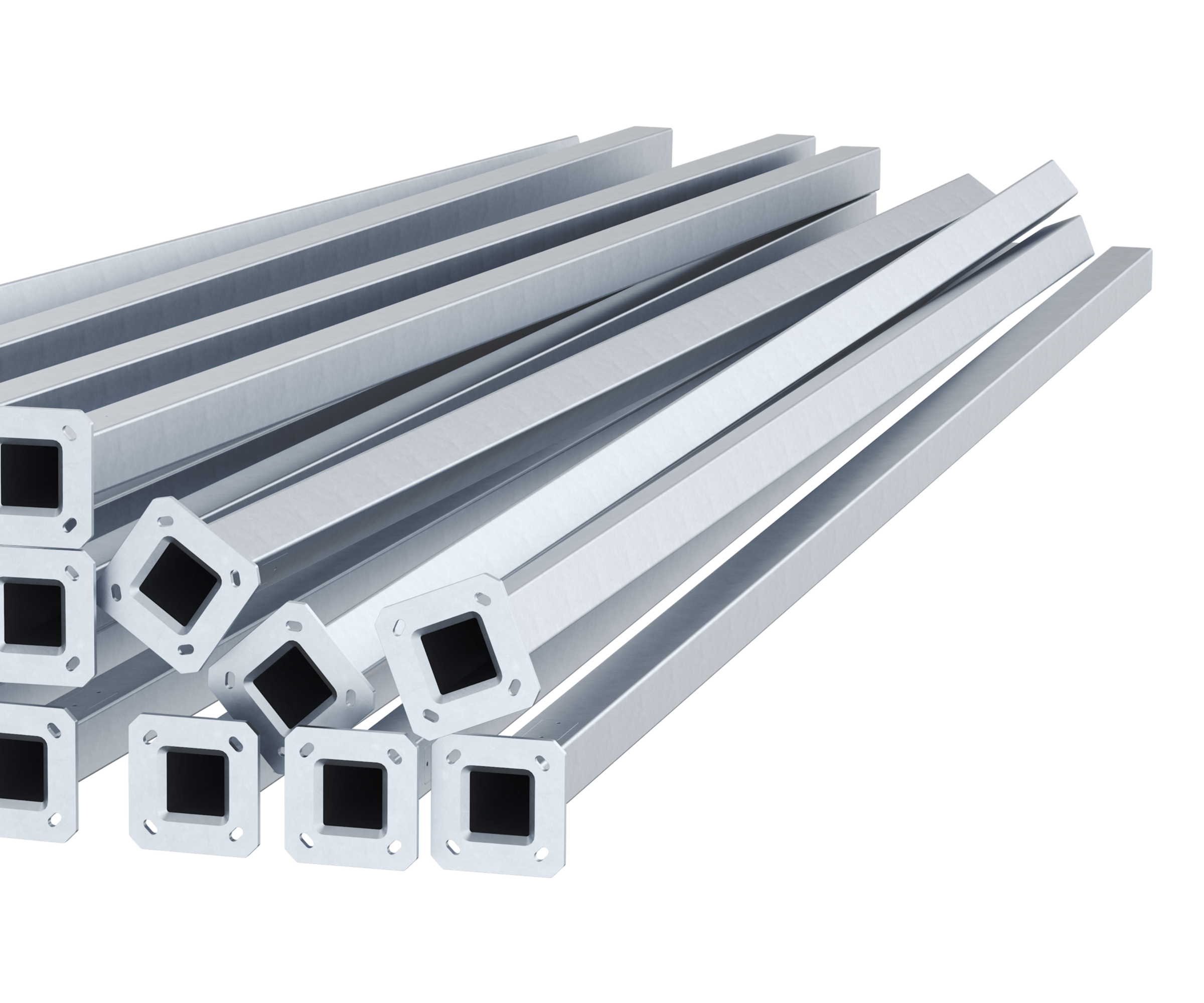

· Square / rectangular tapered or straight pole design
· Material: high-strength steel, stainless steel optional
· Surface: hot-dip galvanized + polyester powder coating
· Excellent corrosion resistance, wind resistance, long service life
· Built-in hand hole, internal wiring, clean and safe
· Customizable height, thickness, color and arm length
· Easy to install and maintain
| Item | Specification |
| Material | Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 |

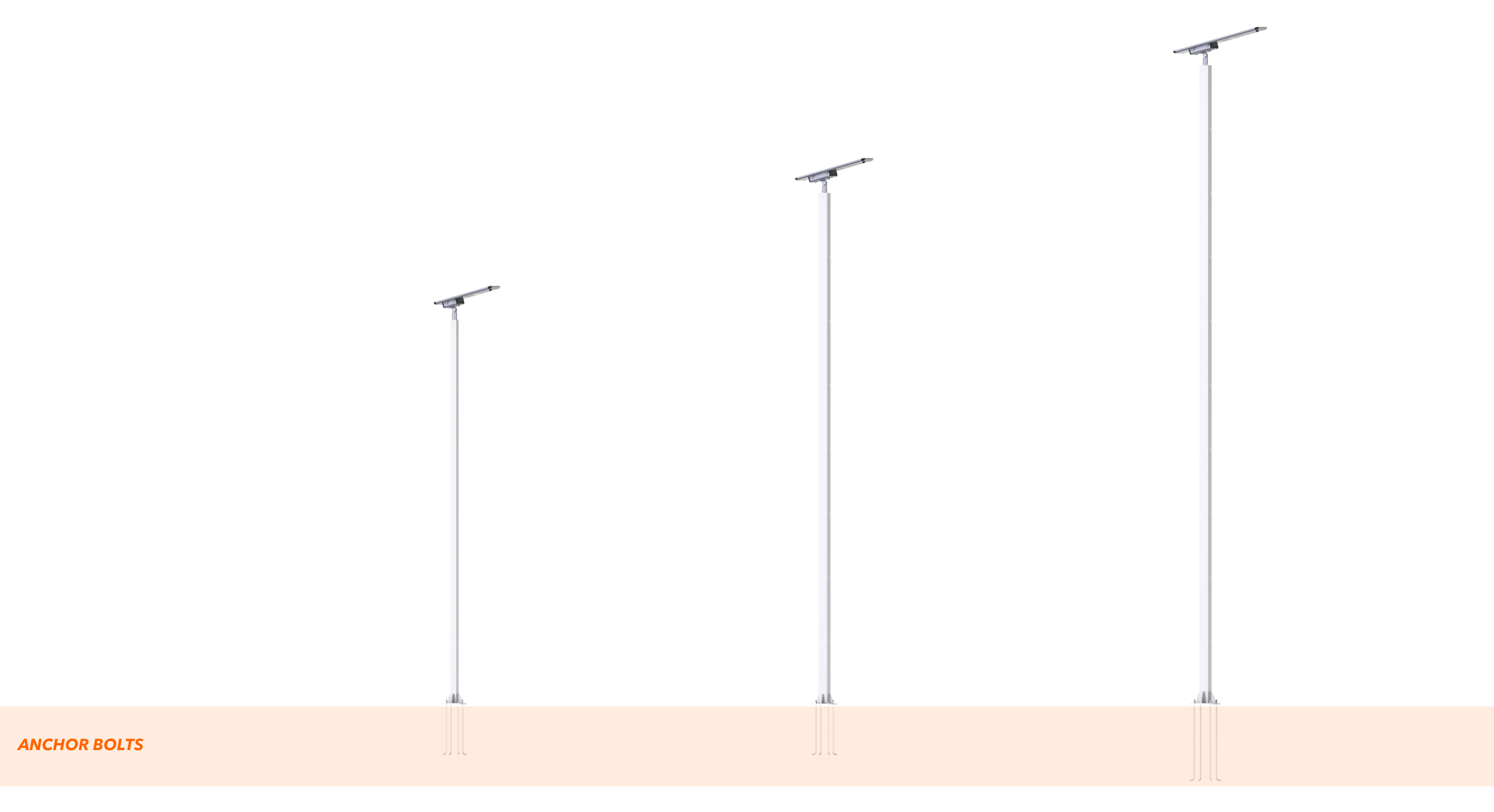

| Height | 4-12M |
| Minimum yield strength | 285Mpa |
| Max ultimate tensile strength | 415Mpa |
| Electroshock resistant protective grade | Grade one |
| Against earthquake grade | 10 |
| Anti-corrosion treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
| Anti-corrosion performance | Class II |
| Decorative finish coat | Durable thermoset polyester powder coat paint finish with nominal 3.0 mil thickness |
| Arm Type | 1,2,2L,3T,3Y,4,MPB |
| Powder coating | Durable thermoset polyester powder coatings provide consistent performance, strong adhesion and UV resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square). Decorative finish coat available in three standard colors; Custom colors available; RAL number |
| Wind Resistance | PreferableAccording to local weather condition, General design strength of wind resistance is ≥150KM/H |
| Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. |
| Hot-Dip Galvanized | Thickness of hot-galvanized>80um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. |
| Anchor bolts | Optional |
| Passivation | Available |
