Steel Light Poles

Splicing
Light Pole

Compact. Modular. Built for Smart Urban Lighting.

Product Description

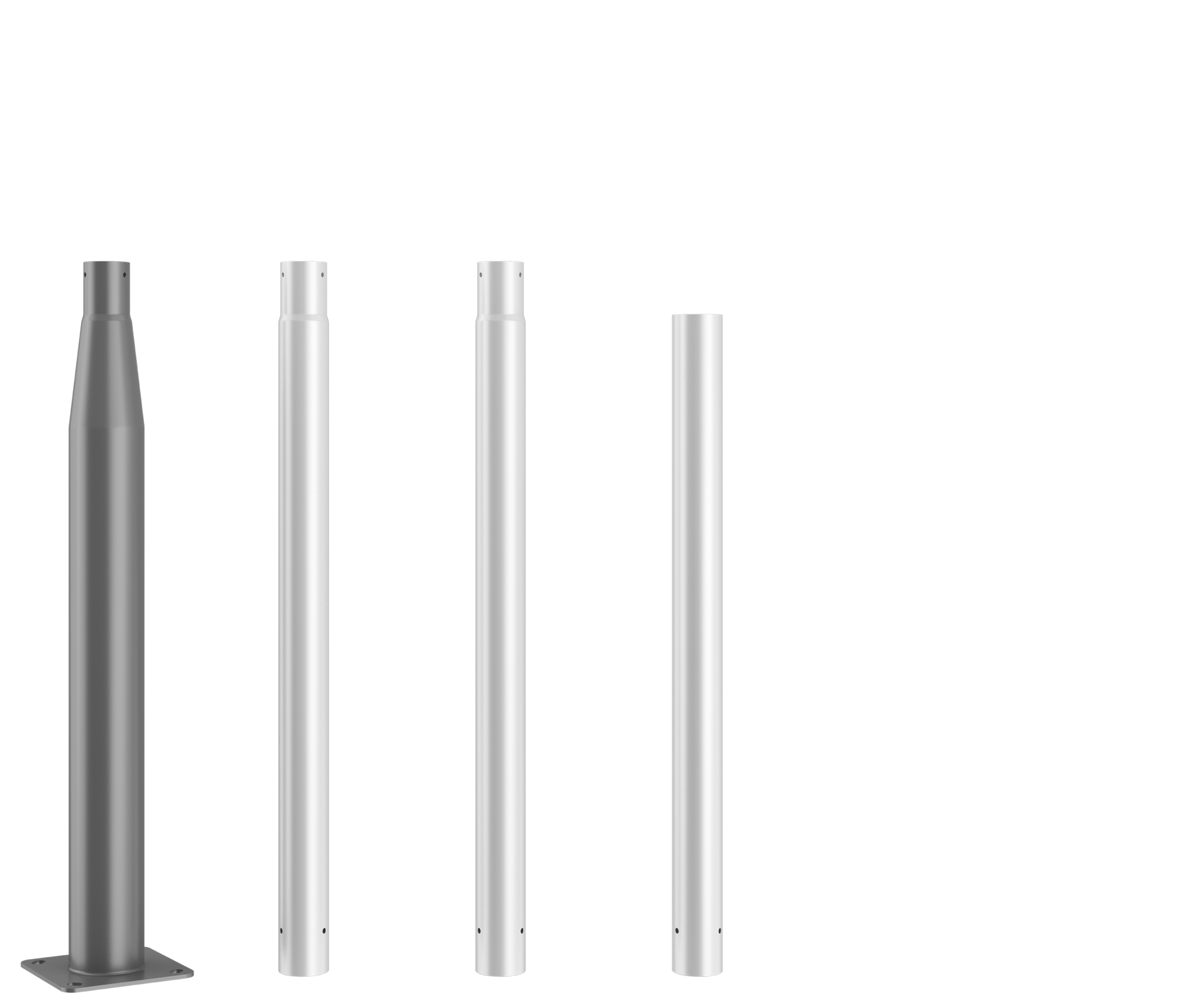

Golden Bright’s Splicing Light Poles offer a space-saving, modular solution for urban and landscape lighting. Made with high-strength Q235 steel and precision slip-joint or flange connections, these poles are easy to transport, install, and customize. Designed for street lights, pathway lighting, residential areas, and commercial landscaping projects, the 2.5m–6m splicing poles come in five versatile height options.

Modular Splicing Design

Multi-section pole segments with slip joint or flange connection simplify transportation and on-site assembly.


Corrosion-Resistant Finish

Hot-dip galvanized with ≥85μm zinc coating, plus optional powder coating in custom RAL colors.

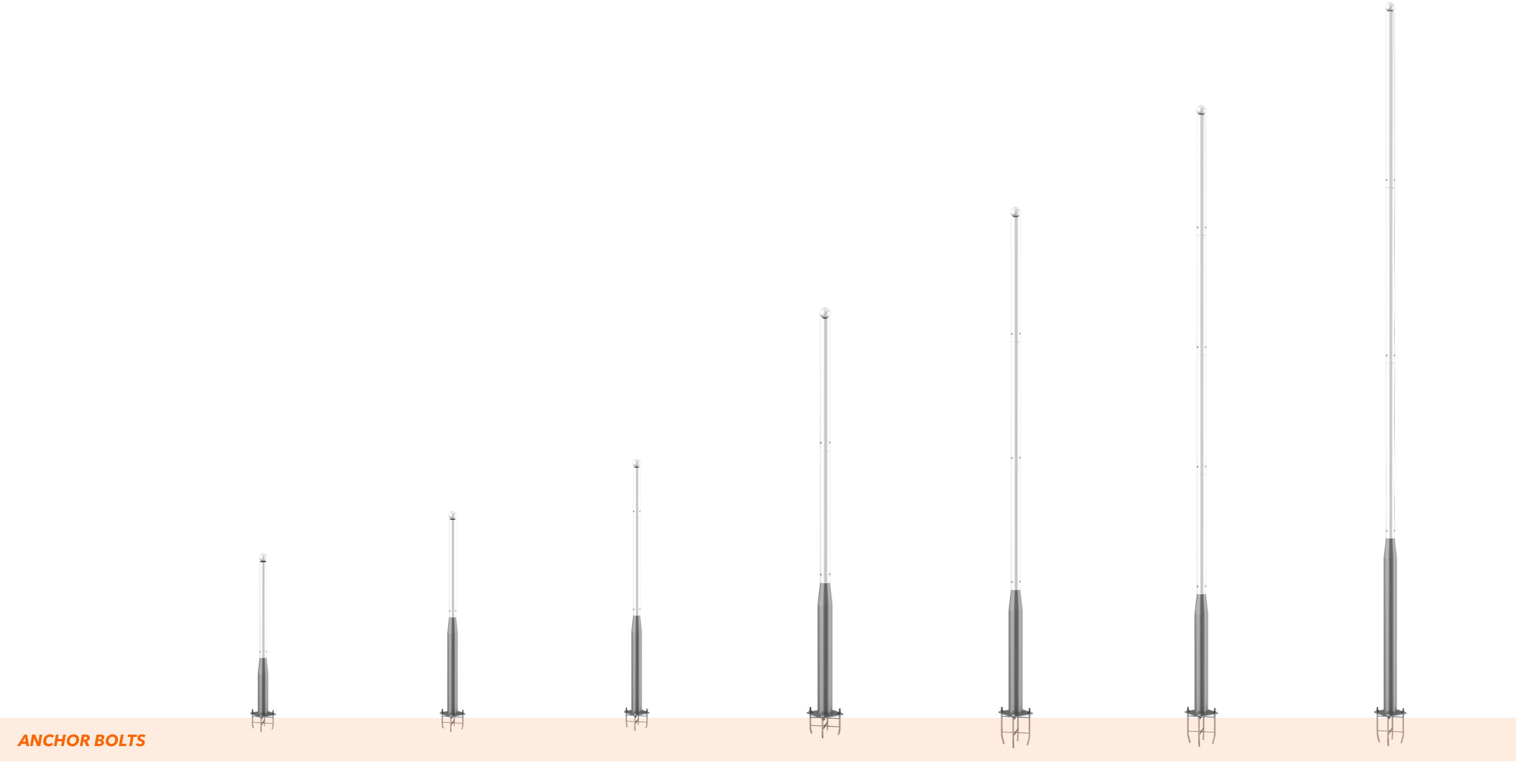

Flexible Height Range

Available in 5 standard sizes: 2.5m, 3m, 4m, 5m, and 6m – ideal for diverse applications like footpaths, courtyards, and public areas.

LED-Compatible Arm Brackets

Supports various lighting arms or top-mount LED fixtures, available with custom mounting holes and spacing.

Tapered Structure

Clean, modern aesthetic with tapered design for strength and stability while maintaining a slim profile.

Efficient Manufacturing & Assembly

Designed for batch production, container optimization, and quick on-site setup with minimal labor.

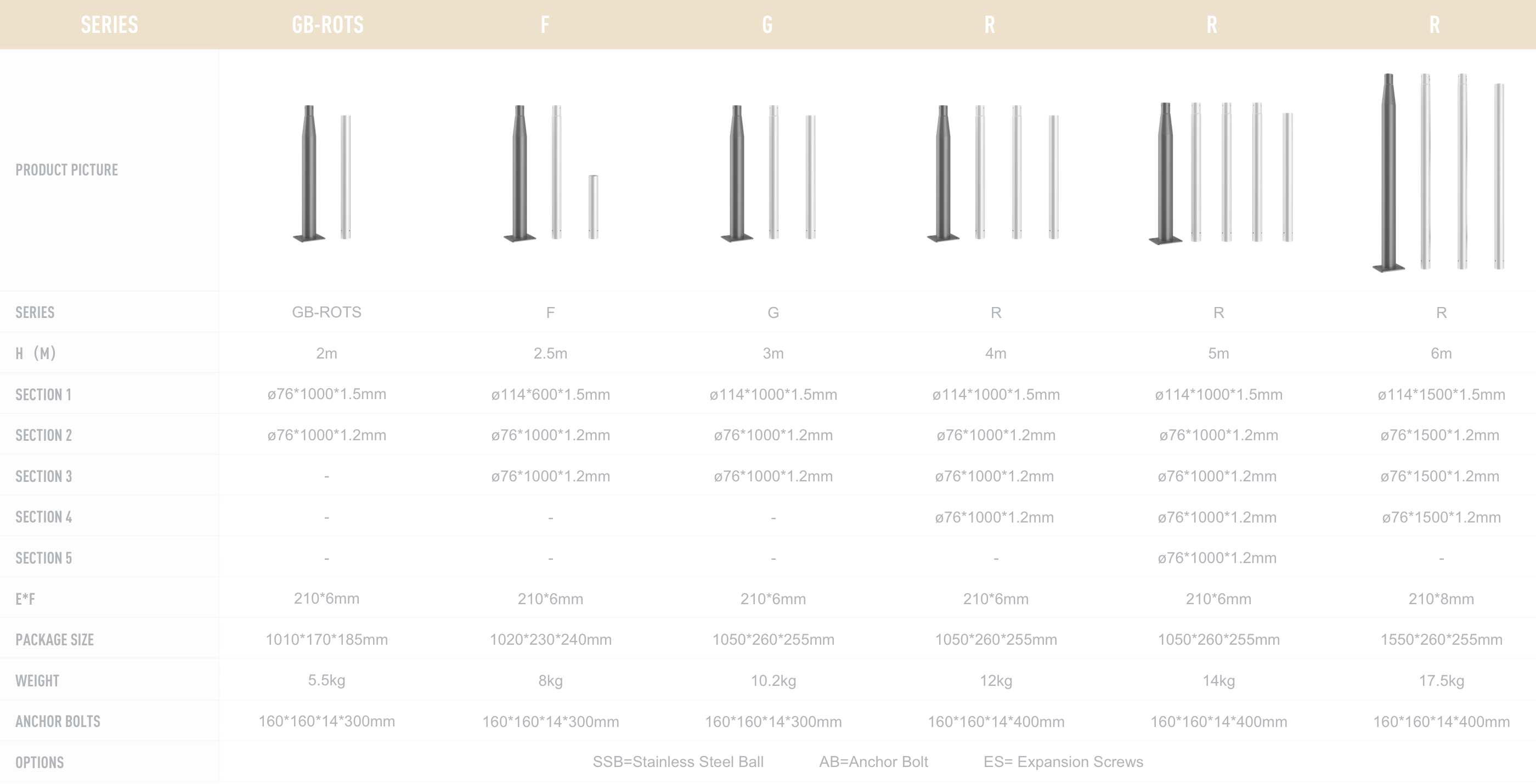

Technical information

* Series: GB-ROTS=Goldenbrght Garden Round Splicing Steel Pole F = Flood lighting G = Garden R = Roadway
* Finish Color: W=white B=Black G=Gray
* Contact factory for custom color options

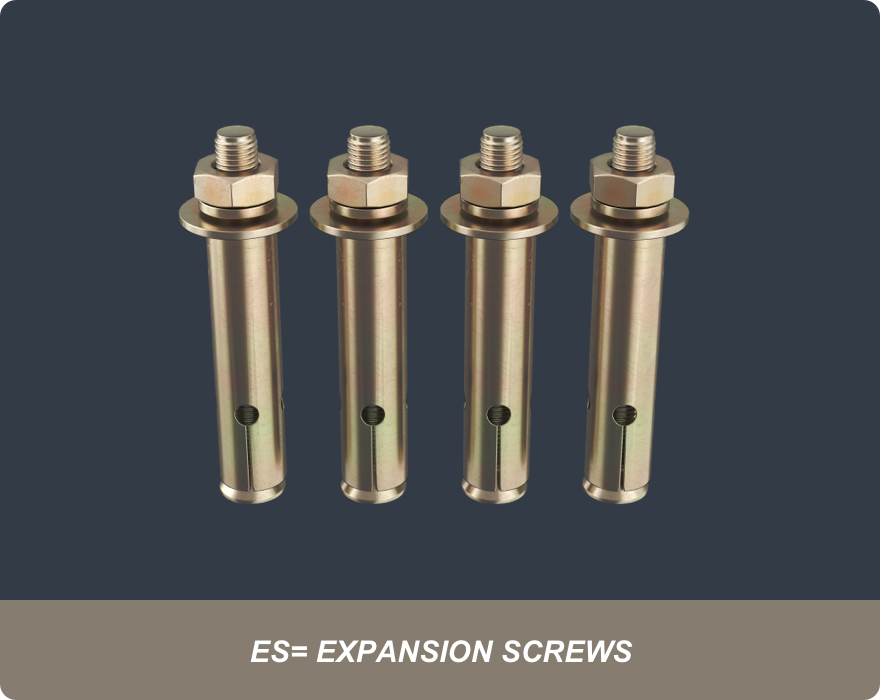

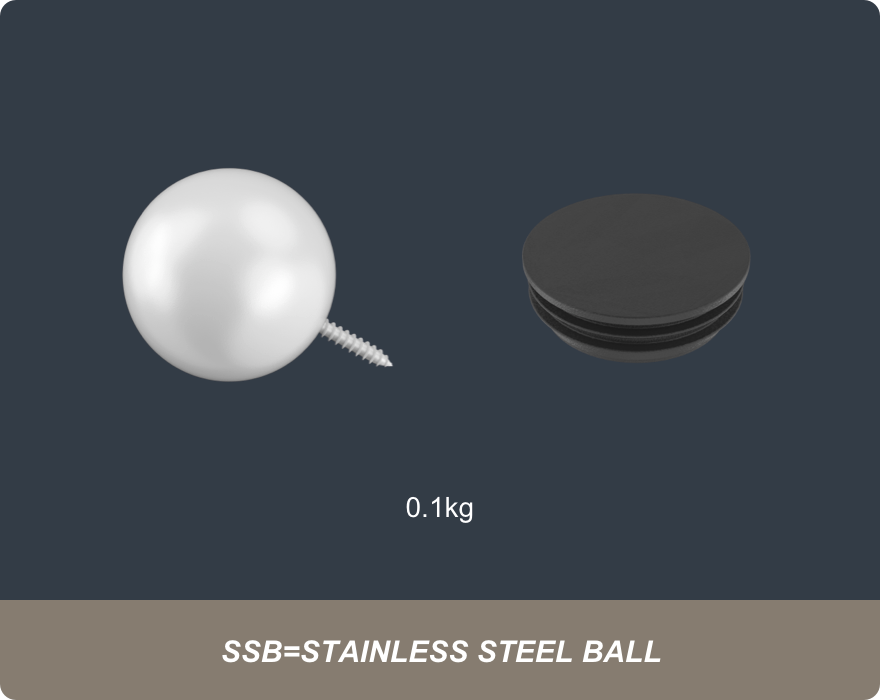

Options

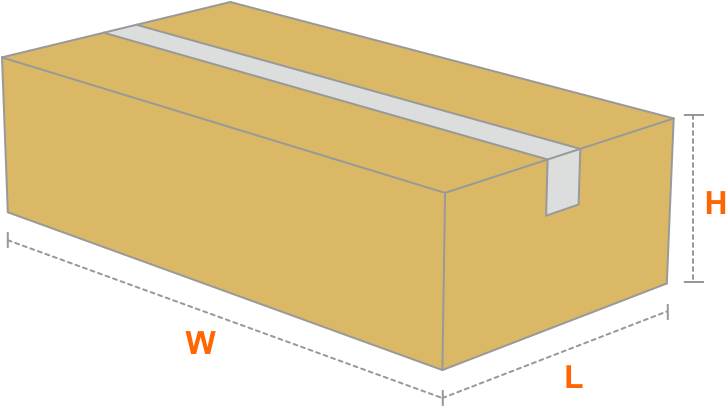

Packing Information

ModelPackage SizeWeight
2m1010*170*185mm5.5kg
2.5m1020*230*240mm8.0kg
3m1050*260*255mm10.2kg
4m1050*260*255mm12kg
5m1050*260*255mm14kg
6m1550*260*255mm17.5kg
