Product Description
Golden Bright's foldable/tiltable street lighting poles are specifically designed for applications requiring frequent maintenance access or where lifting equipment is unavailable. These poles can be manually tilted down for fixture repair, inspection, or cleaning—eliminating the need for ladders or cranes. Ideal for pedestrian paths, village roads, tourist areas, and islands, the structure is safe, convenient, and fully compliant with international outdoor lighting standards.
Product parameters
| Model | |

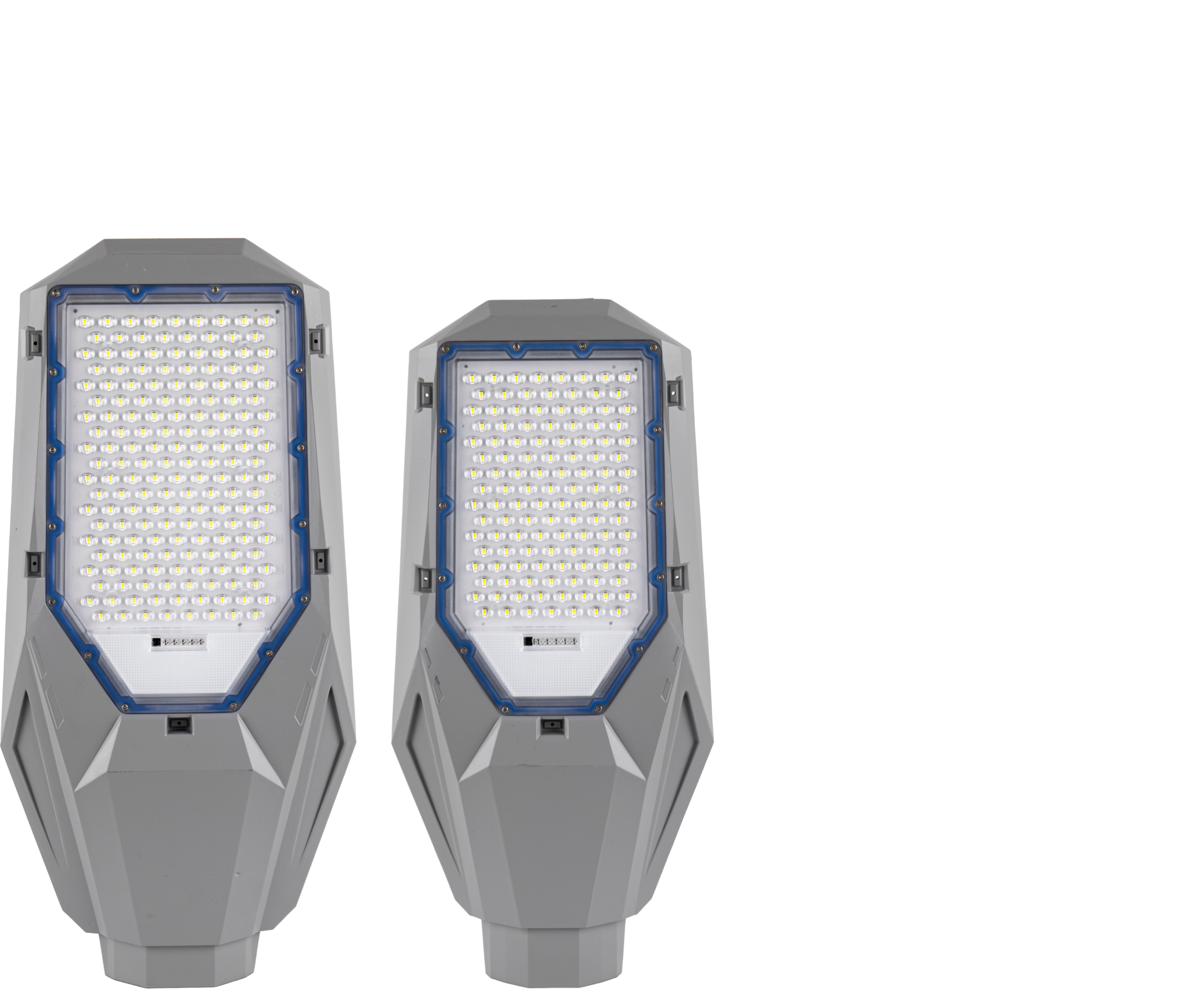

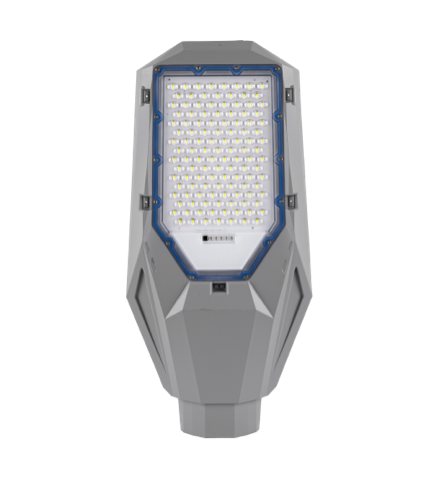

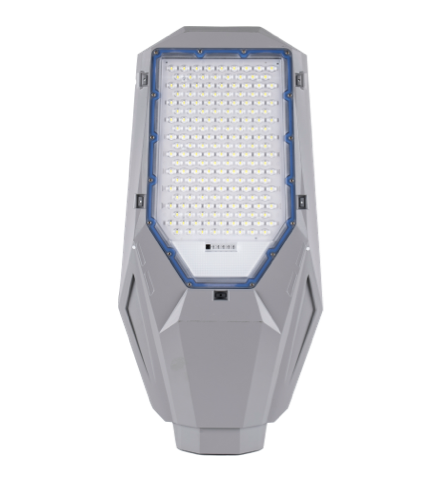

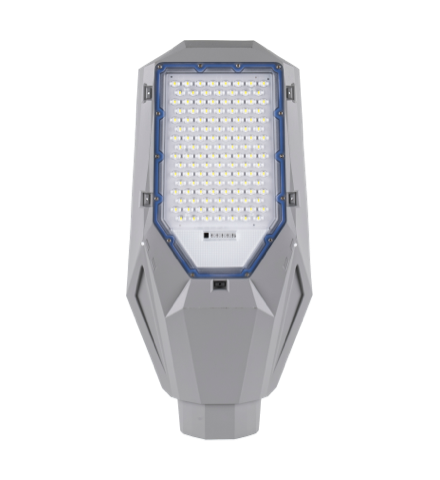

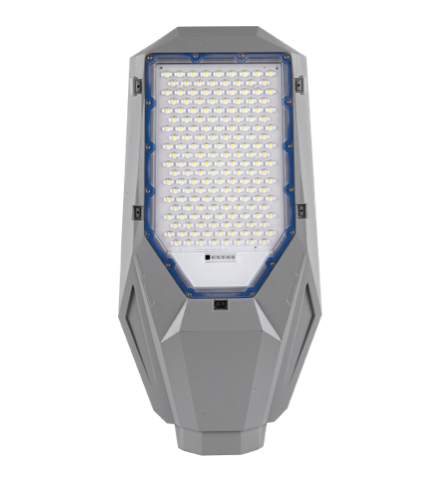

| Product Picture | |
| Battery Parameters | 3.2V/15000mAh 3.2V/20000mAh 3.2V/30000mAh 3.2V/40000mAh |
| Photovoltaic panel power | (6V/20W)
monocrystalline silicon (6V/30W)
monocrystalline silicon (6V/40W)
monocrystalline silicon (6V/50W)
monocrystalline silicon |
| Photovoltaic panel size | 350*350mm 450*350mm 635*350mm 670*445mm |
| LED light source | SMD5730 120 pieces SMD5730 120 pieces SMD5730 170 pieces SMD5730 170 pieces |
| Constant brightness mode luminous flux | |
| Lamp body dimensions | 507*239*55.6mm 507*239*55.6mm 553.6*266*55.6mm 553.6*266*55.6mm |
| Power | |
| Lighting area | |
| Remote control distance | 8-10 m |
| Working Hours | 12H |
| Charging Time | Normal lighting 6-8 hour |
| Charge Cycles | > 2500 times (Remaining 80% nominal capacity) |
| Material Color | aluminium, grey |
| IP Rating | IP65 |
| Temperature and Humidity | Temperature: Charging above 5℃, discharging above -10 °C, working humidity: 95% RH |
Packing Information
| Model | Package Size NET Weight GROSS Weight |
| GB-ZF-100 | |
| GB-ZF-200 | 525*365*385mm 13.5kg 14.4kg |
| GB-ZF-300 | 650*400*380mm 19.8kg 21.05kg |
| GB-ZF-400 | 690*310*555mm 24.25kg 25.5kg |
Product Description
• After removing the lamp body, press and hold the 1.2S button to turn on the device. At this time, the default mode is [induction mode.
• Assemble the lighting fixtures according to the installation instructions.
• Use remote control to set the desired working mode.
• When using the lamp for the first time, charge it first. If the charging time is not long enough, it may affect the lighting duration and brightness when it lights up at night. Wait until the next charging to charge it At full time, work returns to normal.
• In autumn, winter, continuous cloudy or rainy days, the charging effect may weaken and the lighting time may be shortened, which is a normal phenomenon
FUNCTION
Please turn on the switch before installation and charging
Please choose a location that is unobstructed, well lit, and fully exposed
PRECAUTIONS
• Do not connect the light to solar panels that exceed 6 volts to protect the light.
• Do not plug the lamp into a 220V AC power source.3. Please ensure that the lights and solar panels are securely fixed to avoid accidents on windy days.
• Do not disassemble the lamp, otherwise the warranty will be invalidated.
• Please clean the surface of the solar panel every three months to ensure proper lighting.
• Please check if the wires are loose or damaged.
• Please recycle the solar panel batteries as they can be reused after processing.
• The light can only work for more than 12 hours after the battery is fully charged.
