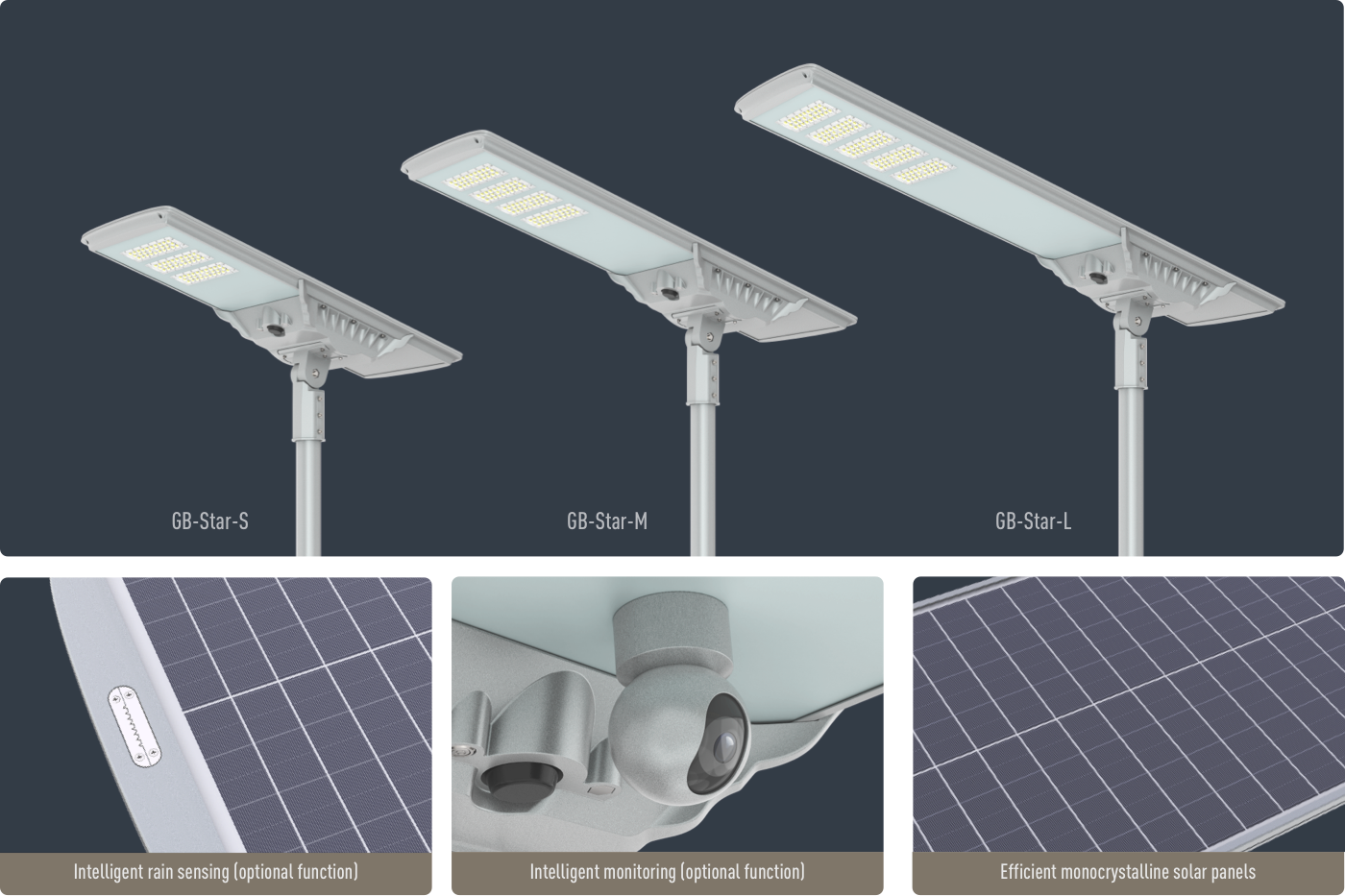

street light

GB-Star SERIES

All in one street light

New intelligent lighting experience with increased convenience and efficiency.

Product Description
The GB-Star series combines advanced lighting technology with efficient photovoltaics, lithium iron phosphate batteries, and smart controllers. Its sleek design includes rain sensing for enhanced safety, HD monitoring, remote control, and innovative bird traps. The system improves performance, simplifies installation, and offers a new intelligent lighting experience with increased convenience and efficiency.

Product Parameters

Model
GB-Star-40W
GB-Star-60W
GB-Star-80W
Street light parameter
Power
40W
60W
80W
Input voltage
12V DC
24V DC
24V DC
ControlsPhotoelectric sensor, timing, dimming, intelligent power-saving, microwave sensor, winter mode
LED chip brandLUMILEDS/CREE 3030/5050
LED module
3*Module
4*Module
4*Module
Lens materialPanlite polycarbonate
Operation temperature-25 ° C to 70 ° C
LED lifespan>80000 hours
Luminous effciency  (+ 3%@ 5000K, > 70Ra)
150lm/W
150lm/W
150lm/W
Luminous flux (+ 3%@  5000K, > 70Ra)
6000lm
9000lm
12000lm
CCT3000K, 4000K, 5000K, 5700K, 6500K
CRI70Ra, 80Ra, 90Ra
Beam angleT2/T3M/T4M
Solar photovoltaic module parameter
Solar photovoltaic panelHigh-Efficiency Monocrystalline Silicon Solar Module ( Back-Contact Premium Option)
Solar panel MPPT  (5td. Dev. ± 3%)
18V/100W Mono
36V/120W Mono
36V/120W Mono
Battery parameter
batteries IFR32700, IFR32140
576WH
12.8V/45AH
768WH
25.6V/30AH
768WH
25.6V/30AH
Charging time5-6 hours
Battery life>2500 Cycles ,@80% Dod, 25°C
Working hours12 hours a day in intelligent mode, 4-5 rainy days
General parameter
Application areaUrban and rural roads, parks, squares and highways
AuthenticationCE、RoSH、IEC、IP65、LM79&LM80、TM21
Protection gradeIP65,IK09
Housing materialHeavy duty die cast aluminum (EN AC-46100)
Surface treatmentUV resistant thermosetting polyester/epoxy primer+UV resistant thermosetting polyestert+anodizing
ColourAny RAL Code, Matte or glossy, customization request
Installation bracket optionsHorizontal and vertical installation, adjustable from 0-90°
Controller TypeMPPT/PWM
 Rain sensing function  (optional)Automatic activation of dual color temperature function in rainy and foggy weather
Suggested installation height
5-6m
6-8m
8-10m
Warranty period5 years

Packing Information

Model
Package Size
NET Weight
GROSS Weight
GB-Star-S
1265*515*165mm
17.5/KG
20.52/KG
GB-Star-M
1505*515*165mm
20.8/KG
24.3/KG
GB-Star-L
1805*515*165mm
24.9/KG
29.82/KG

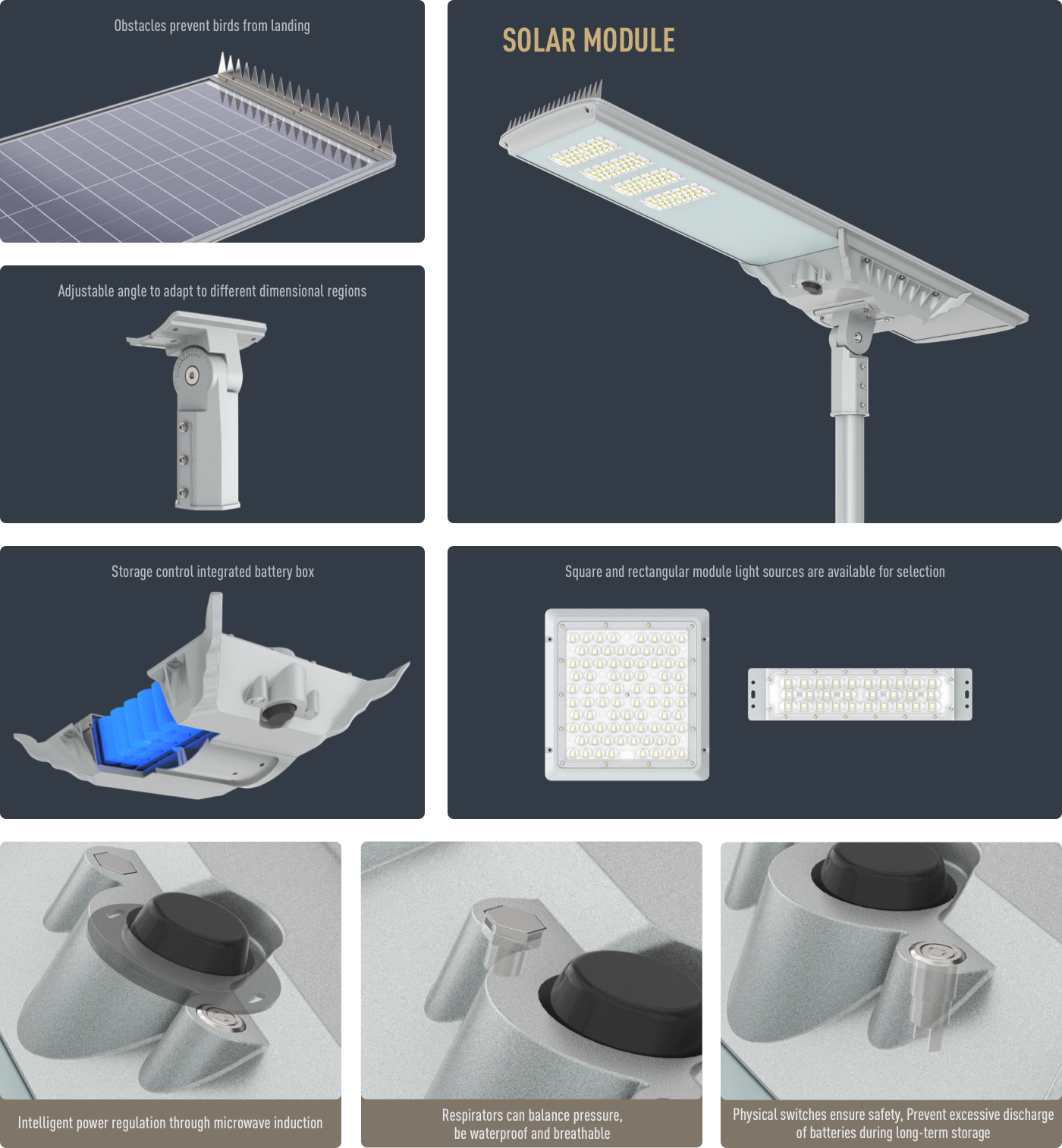

Key Features

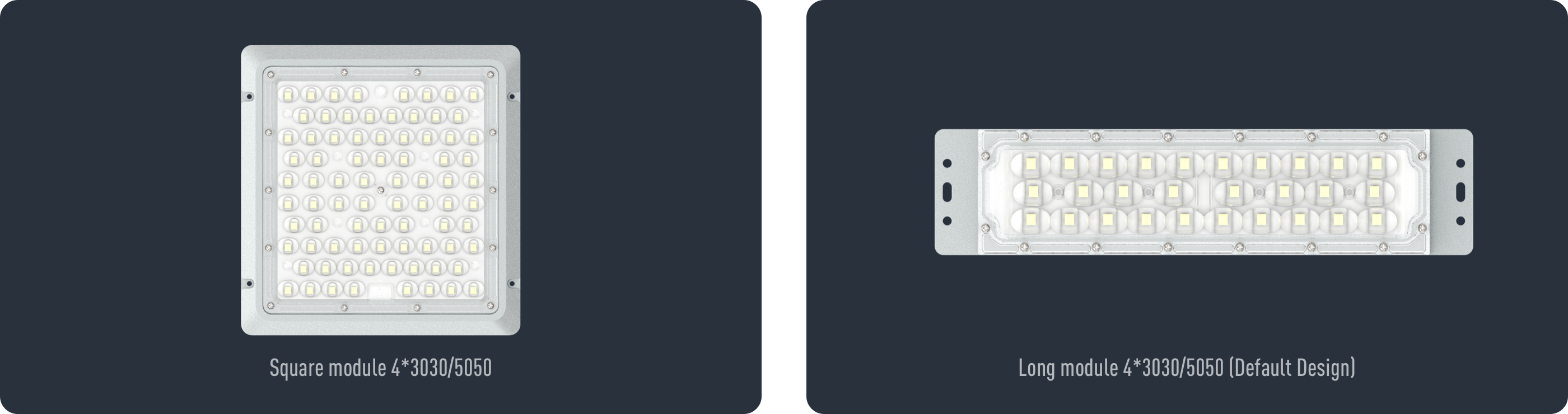

MULTI LIGHT SOURCE MODULE DESIGN

High efficiency LED is used, and the light sealing lens is made of anti ultraviolet PC, which has anti-aging and impact resistance and can be used for a long time. Through a unique optical lens cutoff design, we can eliminate environmental pollution caused by lighting. Innovatively adopting a dual light source module design, users can switch freely according to different environmental needs, accurately adapt to diverse lighting scenes, and flexibly control lighting effects.

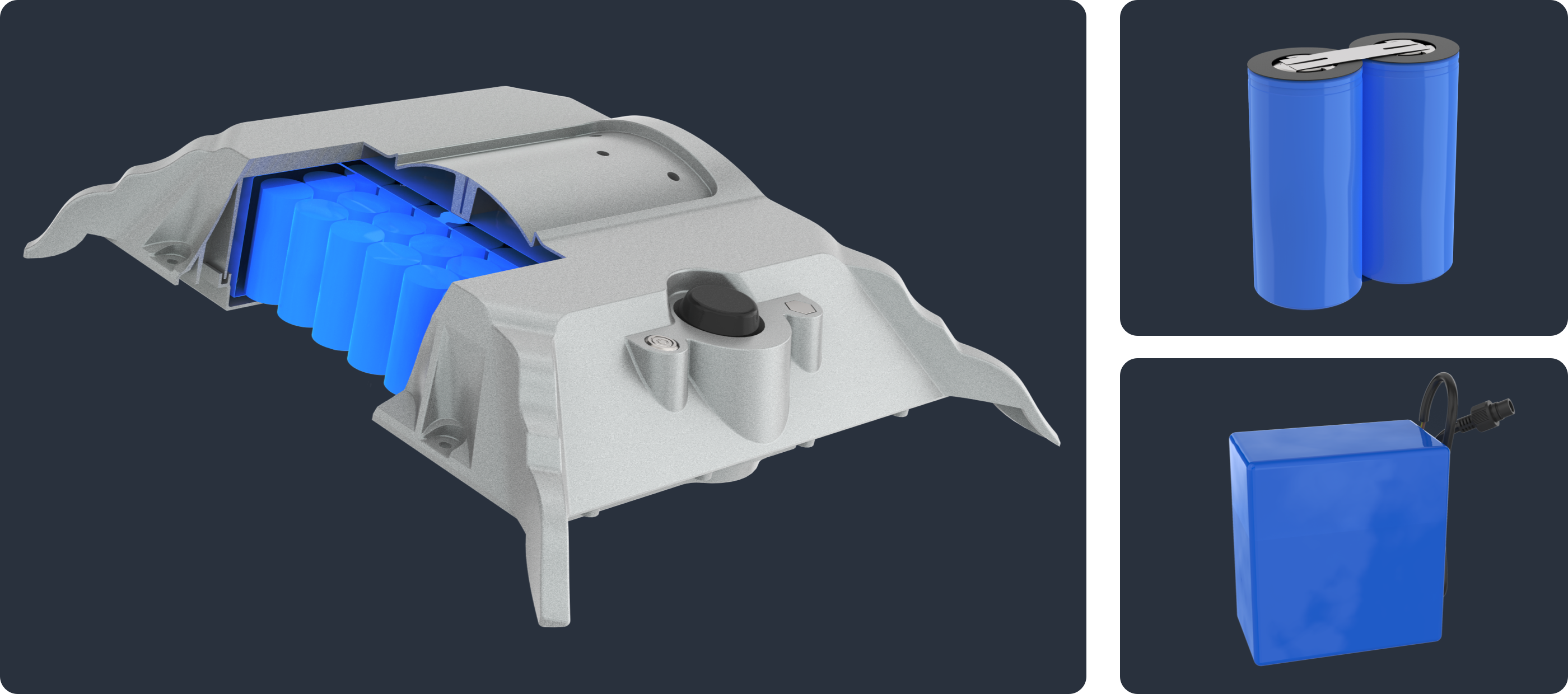

STORAGE CONTROL BATTERY BOX

The battery box adopts high-quality lithium iron phosphate batteries and is equipped with a constant current integrated solar street light controller. It has overcharge and overdischarge protection functions, mainly including: overcharge protection: when the battery voltage reaches the set maximum charging voltage value, the controller automatically stops charging to prevent overcharging and extend the battery life.
‍
Overdischarge protection: When the battery voltage is lower than the set minimum discharge voltage value, the controller automatically disconnects the load to prevent excessive discharge of the battery and avoid battery damage. These two functions ensure efficient system operation, protect the battery, and extend the overall life of the equipment. The battery box has a simple structure, is easy to disassemble, has stable performance, and is easy to maintain.

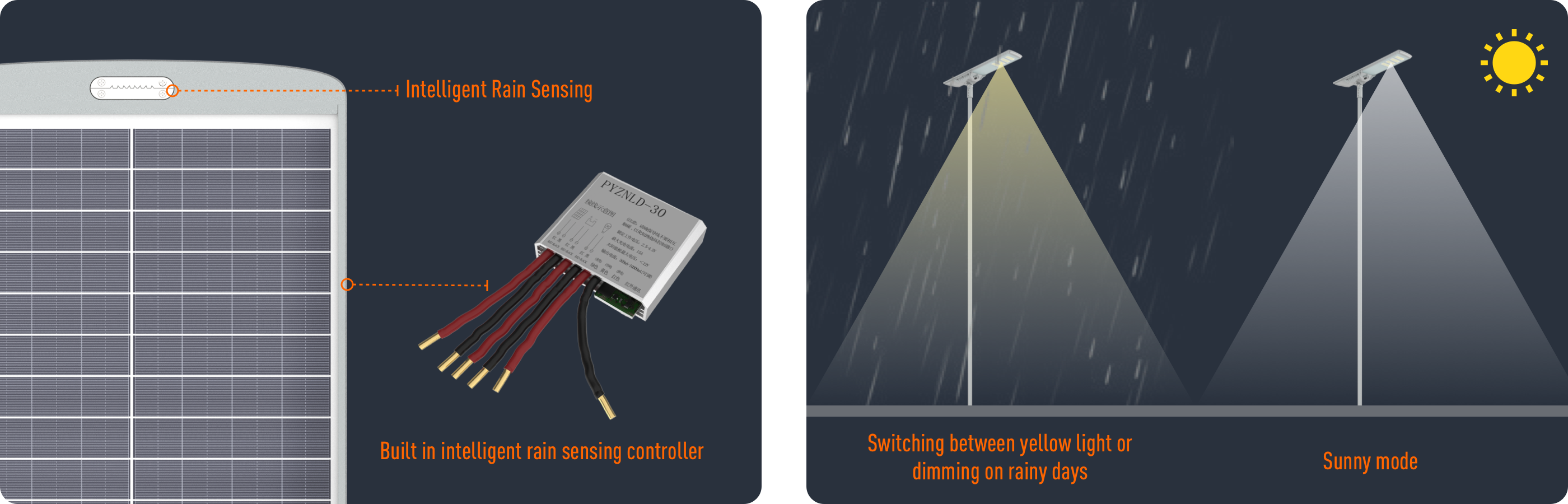

INTELLIGENT RAIN SENSING DESIGN

Mode 1: 100% Power in Rainy/Foggy Weather
Working mode: On sunny days, white light is at 100%, while yellow light stays off. In rain or fog, yellow light operates at 100%, and white light stays off, maintaining 100% power.
Advantages: Improved visibility in poor weather with yellow light's strong penetration; maintains high brightness for safety on main roads and intersections.
‍
Mode 2: 50% Power in Rainy/Foggy Weather
Working mode: On sunny days, white light is at 100%, and yellow light stays off. In rain or fog, both lights reduce to 25%, totaling 50% power.
Advantages: Energy saving with reduced power; balanced lighting with both yellow and white lights for better visibility and efficiency.

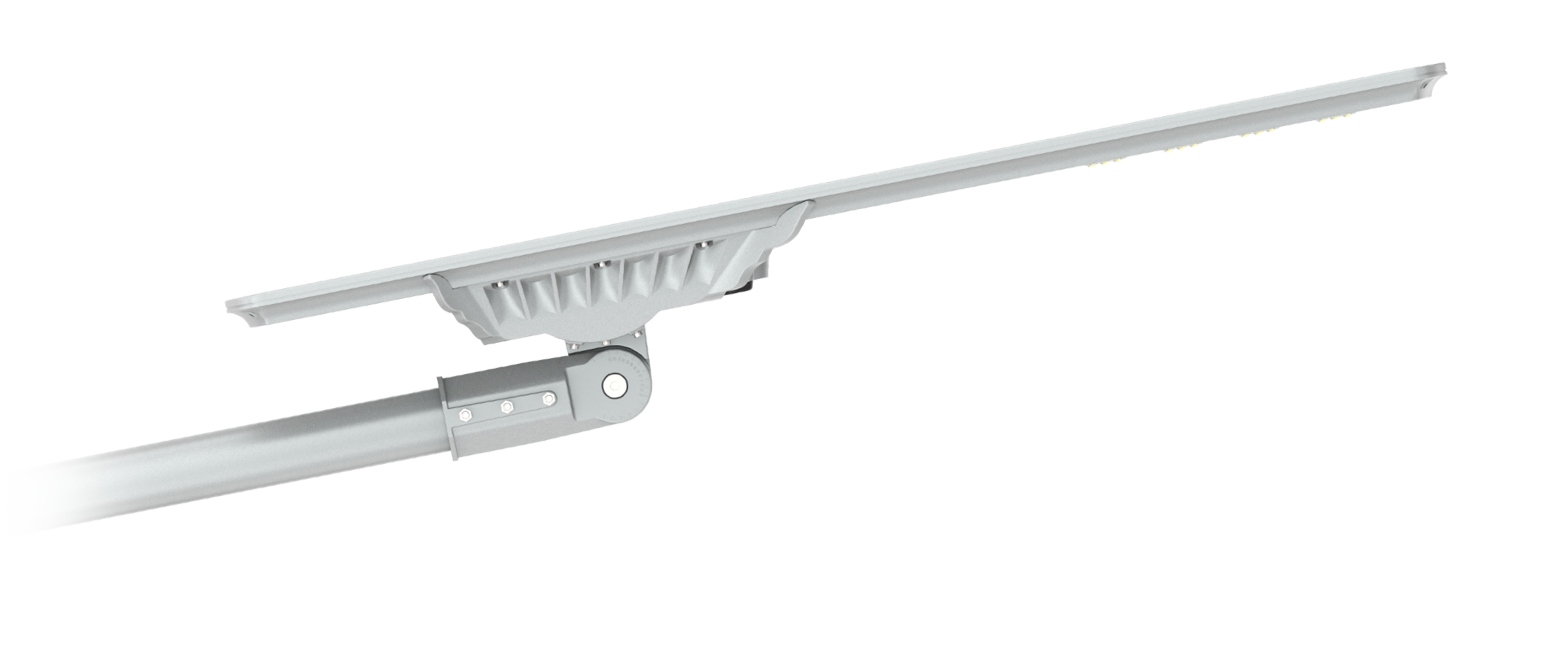

Support Different
Installation Methods
Adjust the installation angle as required, with options for
vertical bolt fixing and horizontal installation.
