Product Description

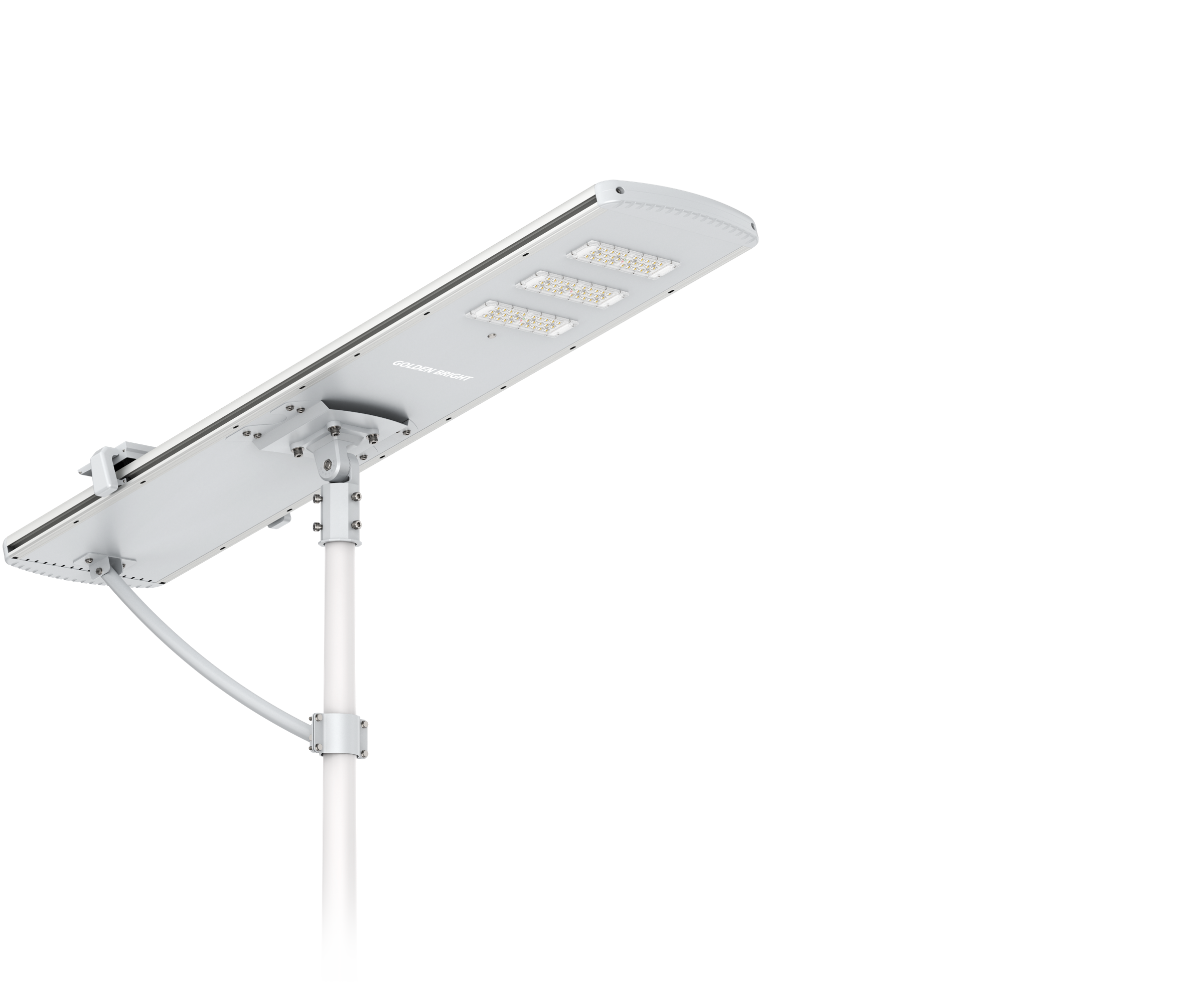

• The Self-Cleaning Solar Street Light is an advanced solar lighting solution designed for high-dust, high-pollution, or low-maintenance environments.
• Equipped with an intelligent automatic cleaning system—including a motorized brush or vibration cleaning technology—the solar panel periodically removes dust, sand, snow, bird droppings, and debris.
• This ensures maximum solar absorption, stable lighting performance, and greatly reduces manual maintenance costs.
Automatic Solar Panel CleaningTapered Octagonal Design
The built-in cleaning system removes dust and debris automatically, keeping the solar panel efficient at all times.
Higher Charging EfficiencyFlexible Installation & Heights
With clean solar panels, energy absorption improves by 20–40%, ensuring longer lighting hours and stable performance.
High-Efficiency Solar + Smart ControlHeavy-Duty Load Capacity
Supports light control, time control, motion sensing, and battery protection for optimized energy usage.
Low Maintenance & Labor SavingCustomizable Fixture Brackets
No need for frequent manual cleaning, especially suitable for long roads, highways, deserts, snowy areas, and hard-to-reach installations.
Product parameters
| Model | GB-SCA1-100w-h |
| Light type | AC/Solar Hybrid |
| Light power | 100W |
| Light Efficacy | 180lm/w |
| Solar panel | 150Wp |
| Battery capacity | 12V150Ah LiFePO4 battery |
| 25℃ 100%DOD Cycle Life | After 5000 cycles, Capacity retention≥80% Initial capacity |
| Controller Type | MPPT Type |
| Charging time(H) | 6 |
| Dimention | 1880*450*50mm |
| Working temperature | -25～60℃ |
| Material | Aluminum+ steel +PMMA |
| LED Type | XUYU 5050 |
| Color temperture | 4000-5000K |
| CRI | 70 |
| Illumination time | 12h |
| Cell type | EVE IFR33140 |
| Controller Model | Depower M2420 |
| IP Rating | IP65 |
| Trademark | Goldenbright |
| Origin | Yangzhou, China |

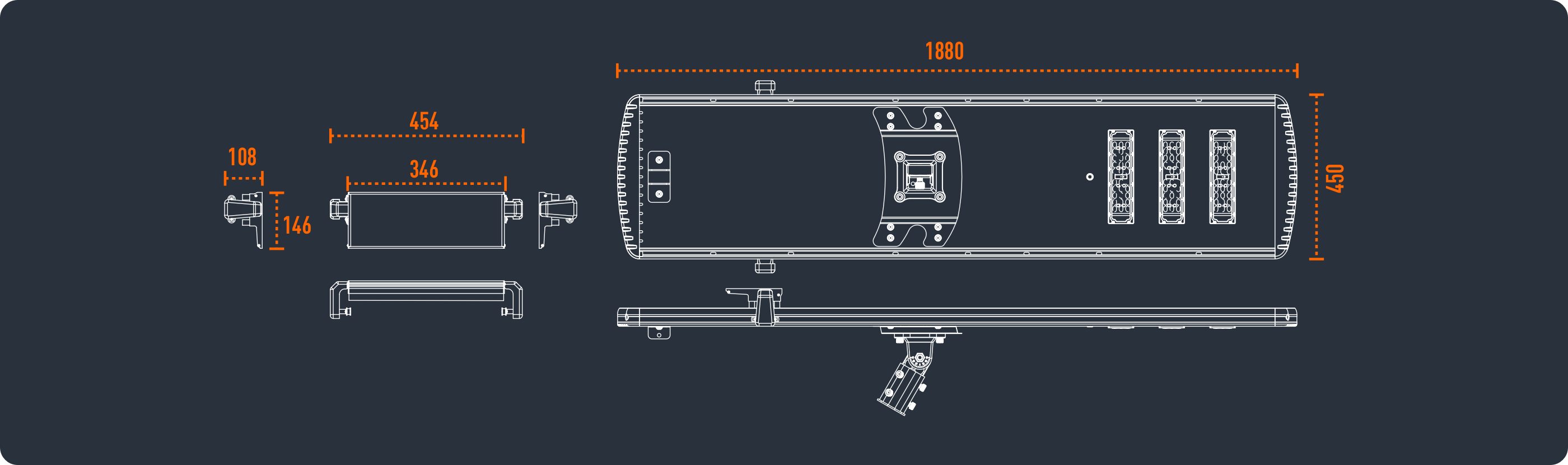

Product Size

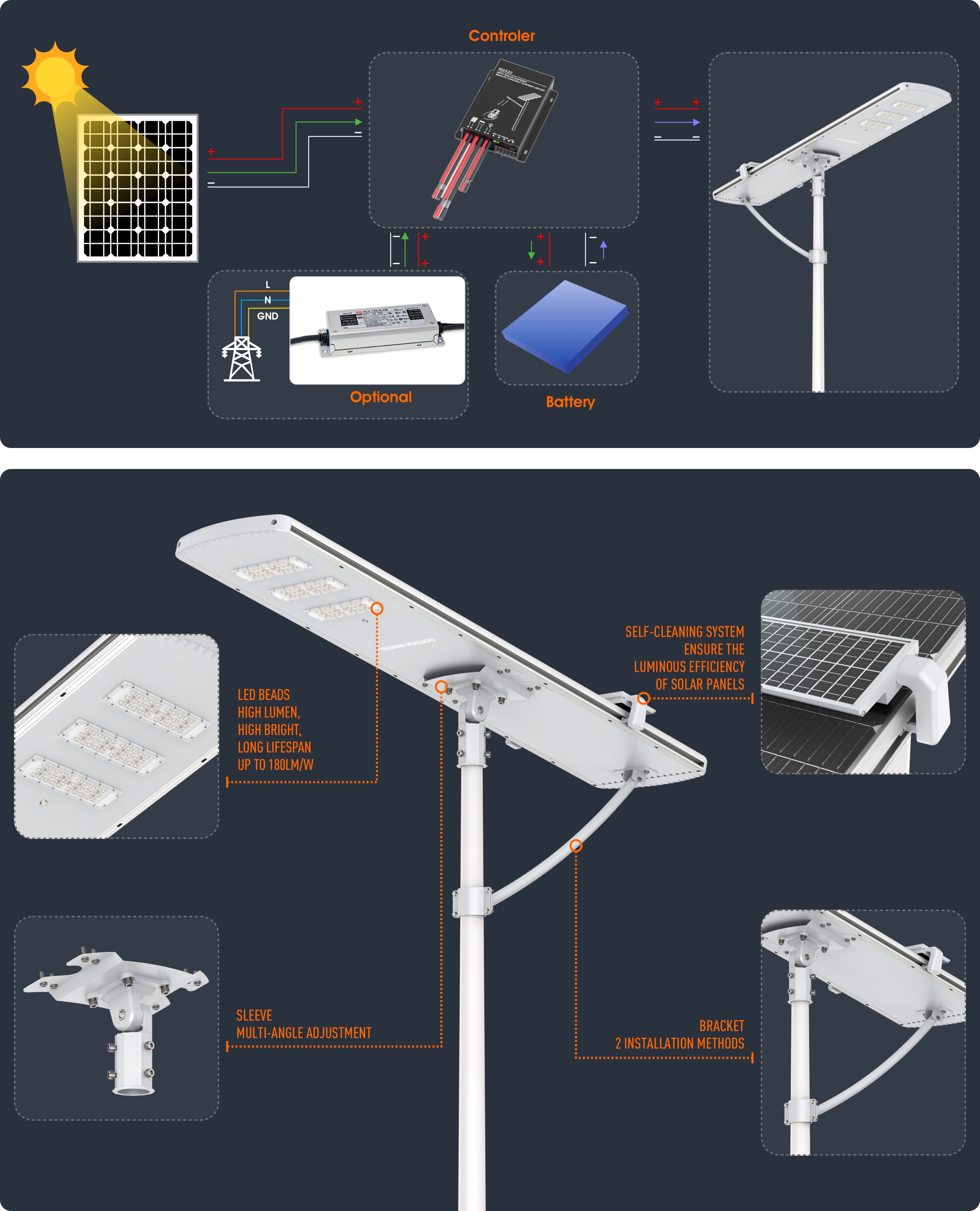

Working Principle

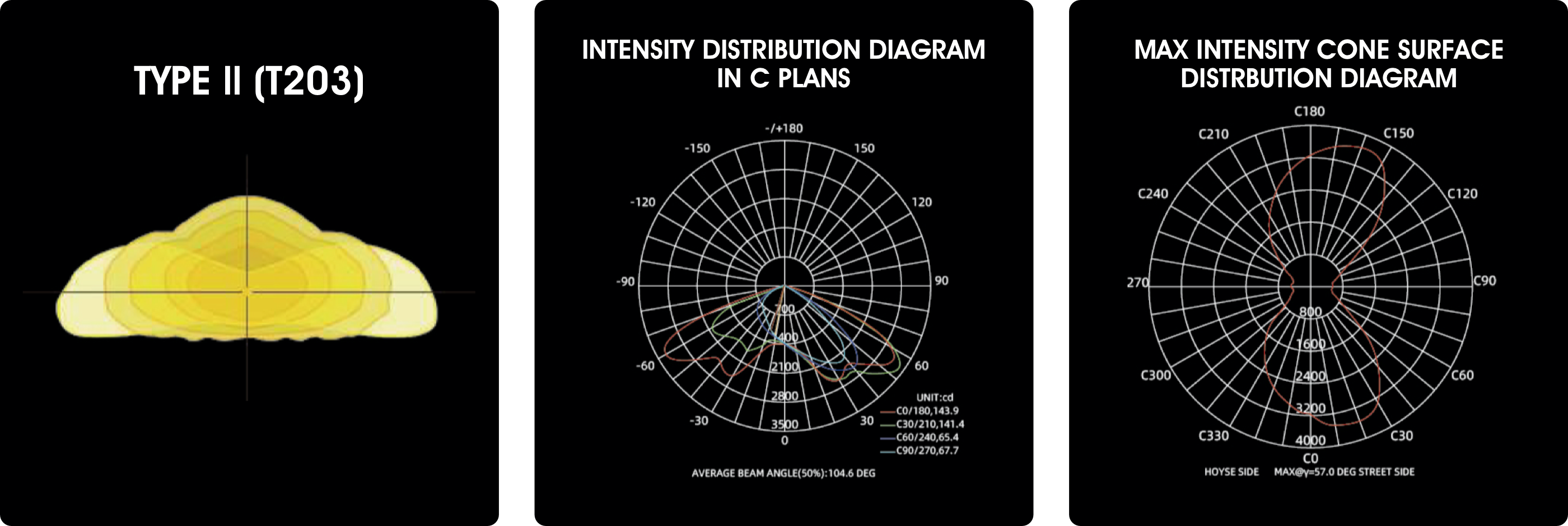

Distribution
Automatic Self-clean System

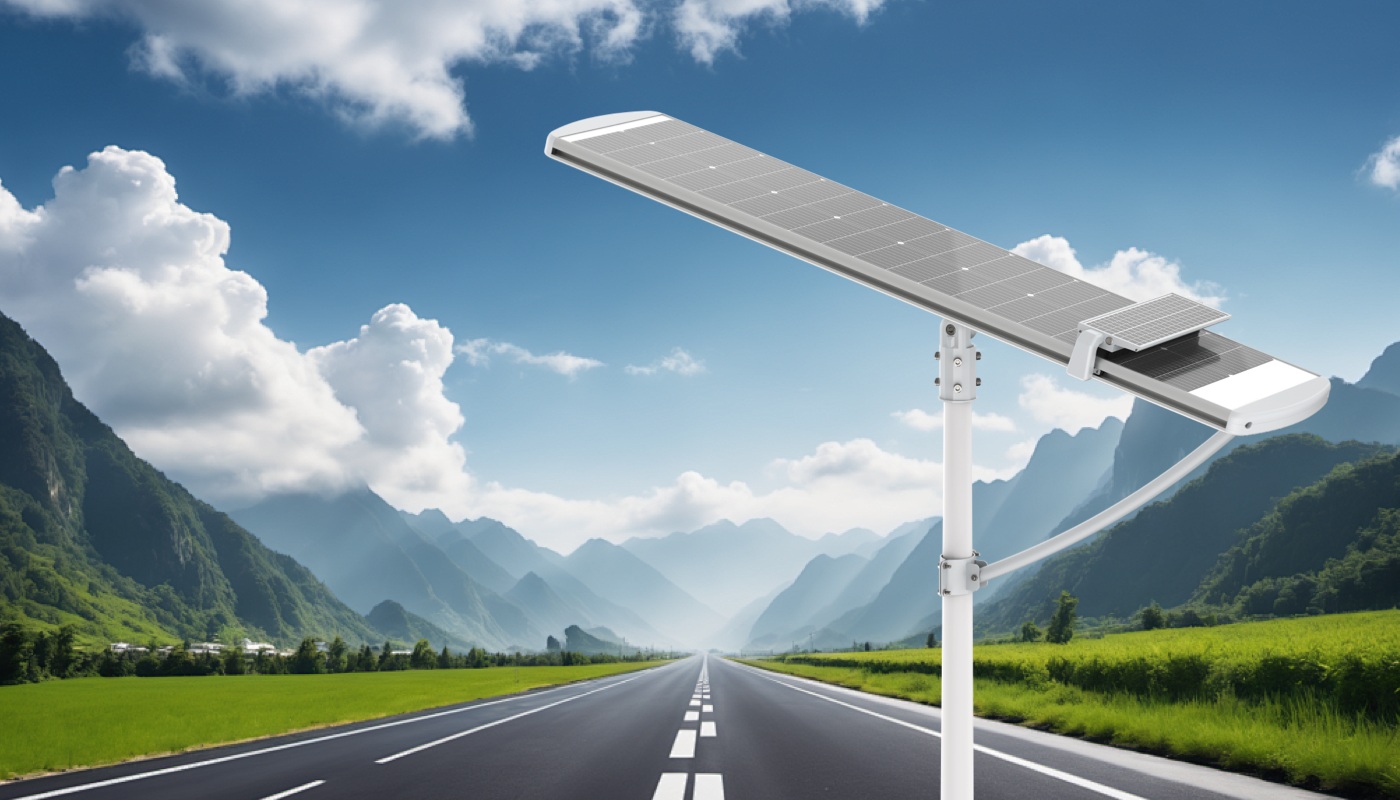

All in One Solar Street Light
Never worry about dust, snow and other particles that could prevent your solar street lights from operating at maximum performance. Easy to install and maintain, our automated self-cleaning system will ensure that the solar panel is always clean and ready to absorb solar energy at the most efficient rate.
Description
• Two independent system-Self clean system and solar street light system work independently. No influence on each other. Very quick and easy installation.
• Self-clean system has 3 years’ warranty. After three years, the wheel on system may need maintenance.
• Built-in fixed working mode. The time you turn on the switch, it will clean one time with three back and forth. After that, automated work without manual operation. Three times a day on breakfast, lunch and supper time. Each time three back and forth. In the morning, when the charging voltage reach 5v, self-clean system will activate automatically. After 4 hours, the self-clean system will activate automatically. On the sunset time when the charging voltage down to 5V, the self-clean system will work automatically.
• The solar panels have specially designed blank areas where the self-clean system can stay when it is not working, thus avoiding blocking the solar panels and ensuring their charging efficiency.

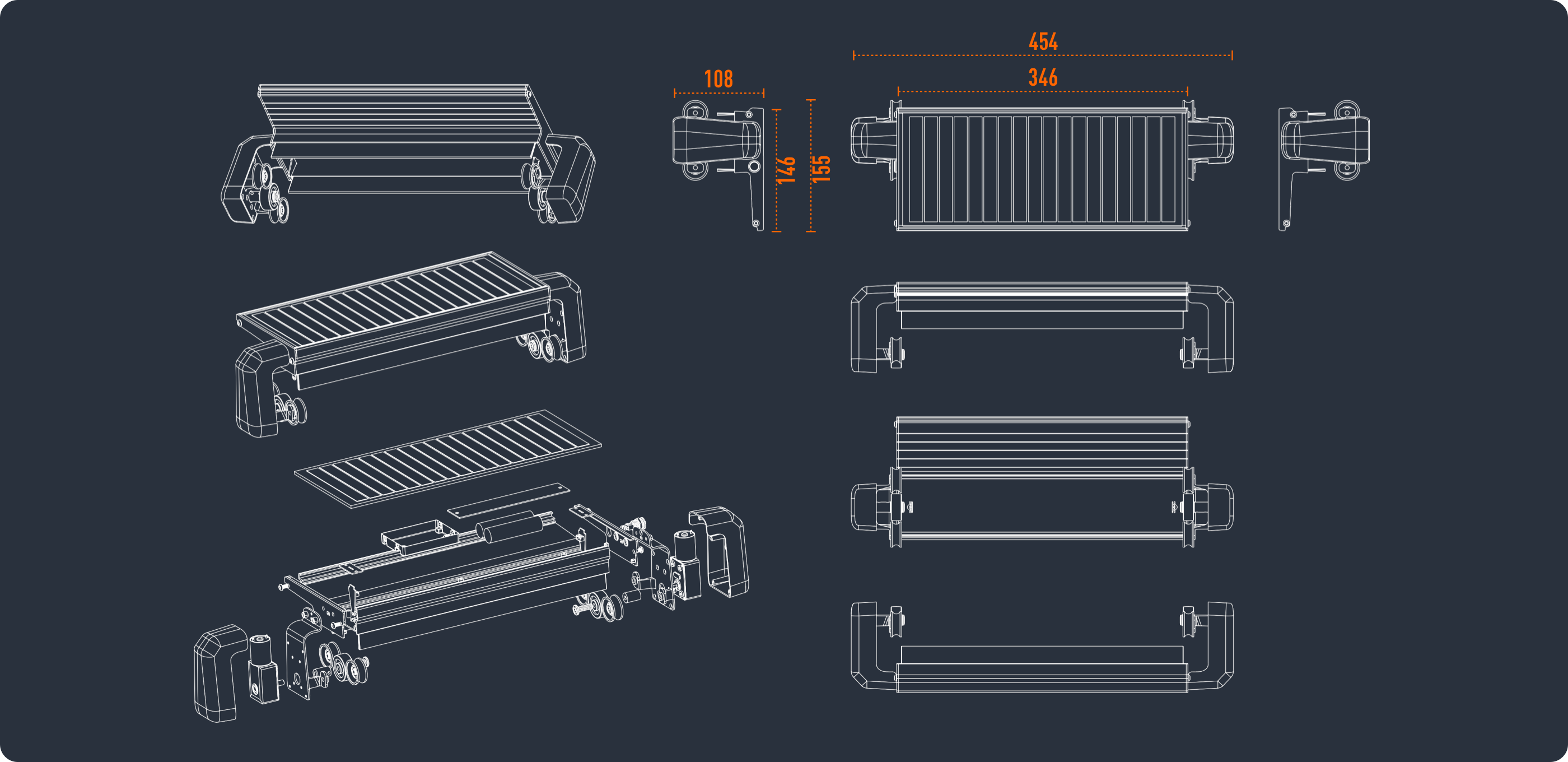

| Model | Photovoltaic panel intelligent cleaning machine |
| Solar Panel | 340*140 16V 9W |
| Battery | 11.1V 2.5A |
| Motor rated power | 9-15V 3A (Single motor) |
| Operating power | 10-12V 0.6-0.8A ≈ 9W (Double motor) |
| Working speed | Speed ratio 1:40; track gliding ≈ 20 seconds/meter |
| Limit | Bilateral synchronous magnetic induction |
| Reverse protection | 5-second delay for rate limiting to 2.5A; 2-second delay for inversion. |
| Size | 454*155*108mm |
| Weight | 1.8KG |
Compared with other companies' products, our lens have a better light distribution and almost no waste
