Industry Light

GB-HB-R SERIES

Industry Light

Exceptionally Designed With A Pure Aluminum Housing

Product Description
• 4 sizes for different wattage from 100W to 240W
• Top and bottom vent convection,high-quality heat dissipation
• High-stability driver from SOSEN(standard)/ Philips,Lifud(option)
• High energy savings compared to systems with traditional discharge lamps
• High light efficiency with perfect light distribution
• Light-on-demand feature with optional motion sensor *
• Dedicated range of mounting accessories *
• Emergency lighting with optional battery *
• Fast ROI thanks to long life span and reduced maintenance
• Compact housing optimised for heat dissipation and reduced dust accumulation

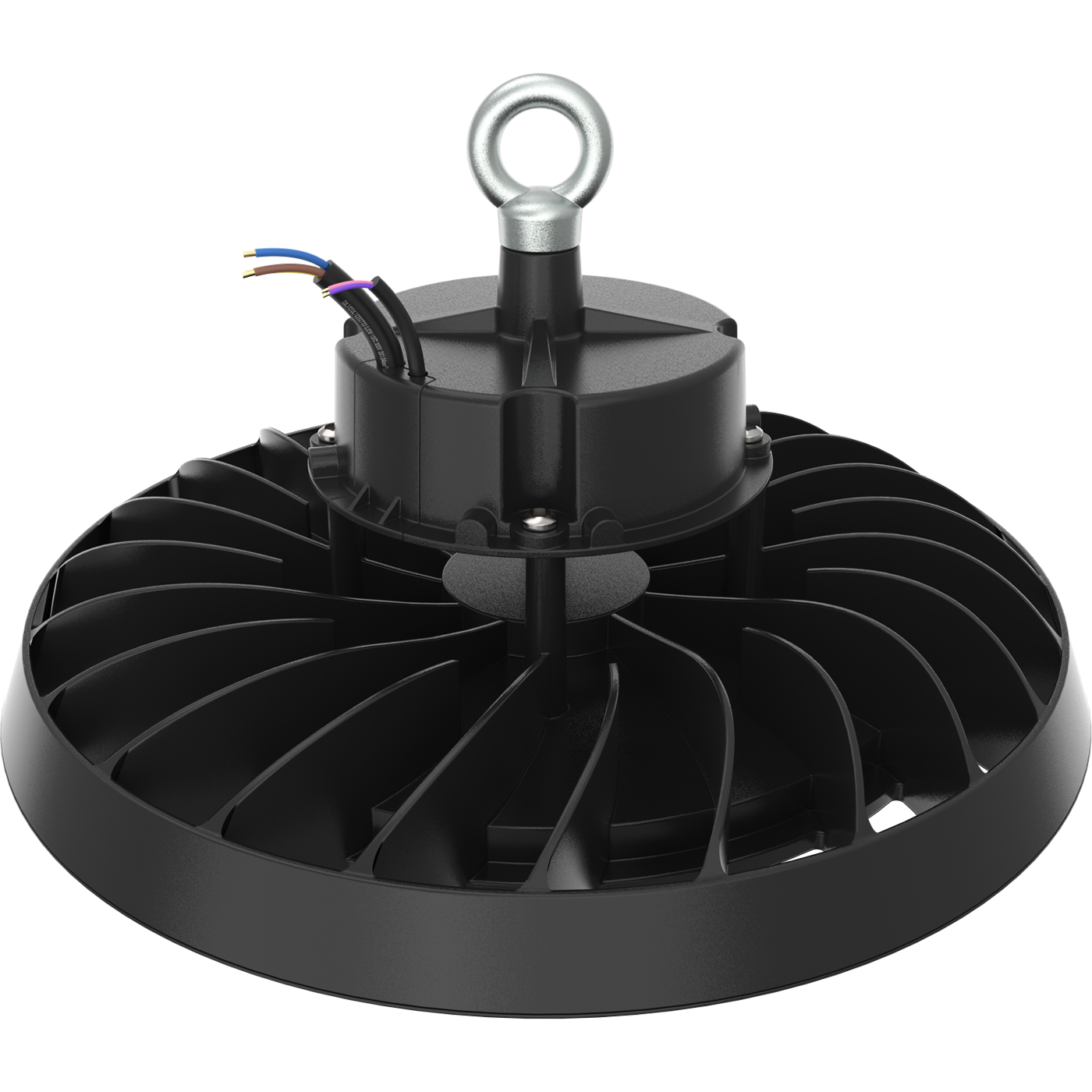

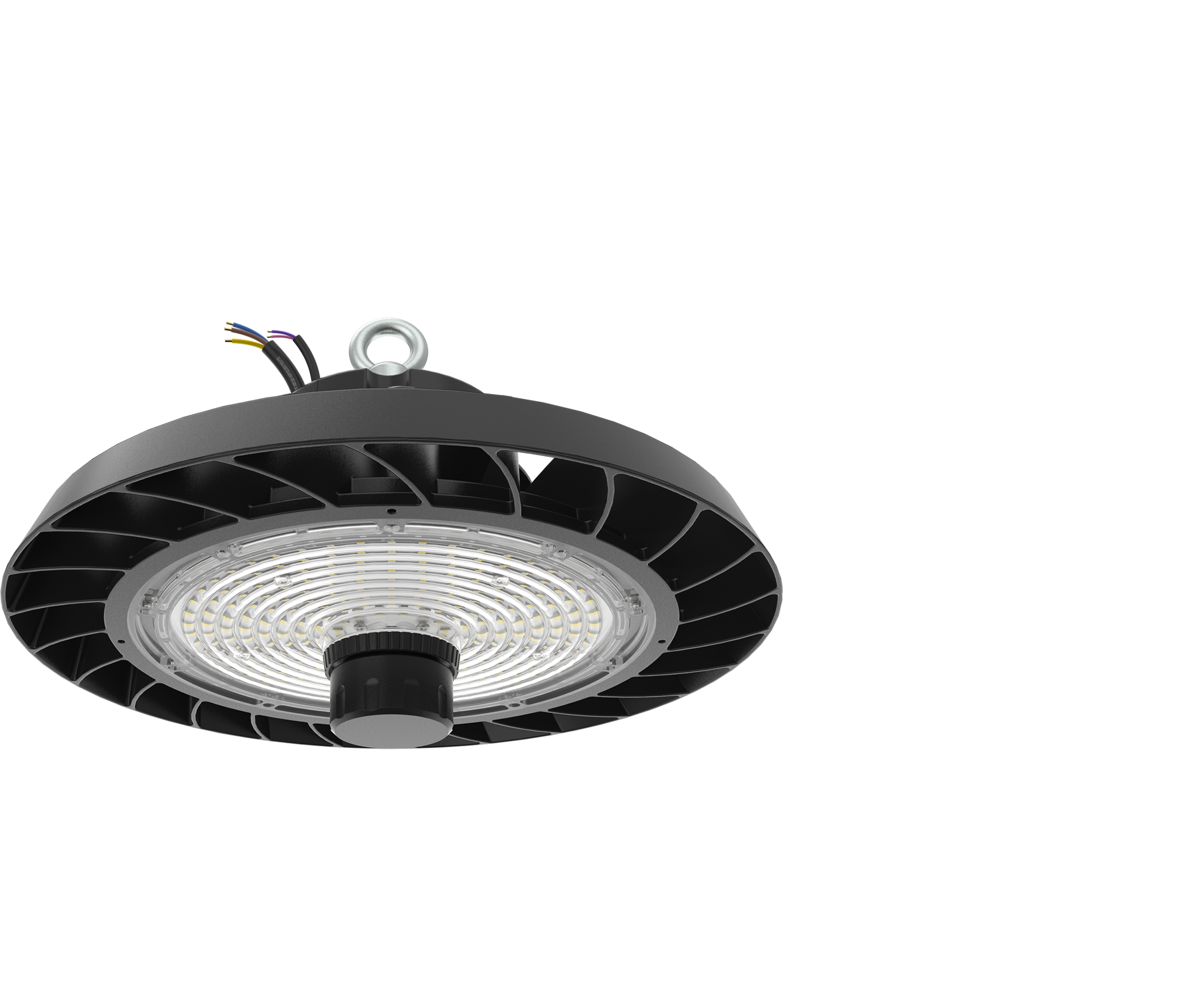

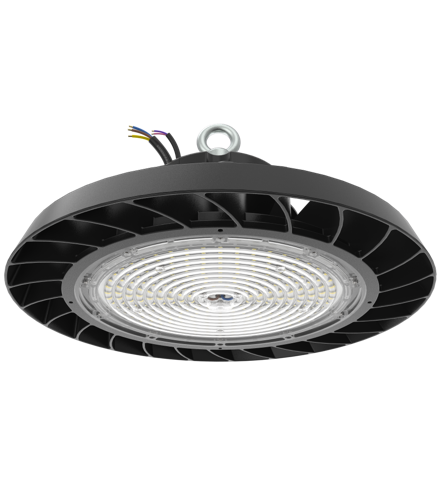

Multi-Angle Display

Precise Beam Angle Design. Unlike most suppliers in this industry use public lens in their UFO Shape High Bay. We design our own lenses to reach a Higher Effiency and precise beam control. It is easy to tell the difference when you have the product on hand to compare.

GB-HB-R Series High Bay

Model
GB-HB-R 01
GB-HB-R 02
GB-HB-R 03
GB-HB-R 04
Product Picture
Number of Modules
160
240
320
420
LED Light Power
100W
150W
200W
240W
LED ChipSMD 2835 (standard)/ Bridgelux, Cree, and Lumileds 3030 are available options
Light Efficacy170lm/w (standard) / 190lm/w, 210lm/w (option)
CRI≥ 70 or ≥ 80
Luminous Flux (3030)
17000lm
22500lm
34000lm
40800lm
Color Temperature2700K, 3000K, 4000K, 5000K, 5700K, 6500K
LED Light LifeUp to 100,000hrs LM70,Ta 25℃
DriverSOSEN (standard) / Philips, Lifud (option)
Driver IsolationClass I EU
Frequency50 / 60Hz
Power Factor≥0.95 cos
Control DimmingPlug and Play Zhaga Microwave Sensor/1-10V dimming
Body Parts MaterialADC12 (standard)
OpticPolycarbonate
Beam Angel60° / 90° / 120°
Optional Configuration6KVA standard/ 10KVA SPD (option)
Operation VoltageAC 85-265V
Operating Temperature-35℃~50℃ / 10% ~ 95% (humidity)
Color Stability3 or 5 MacAdam steps
Warranty5 years

Packing Information

ModelLight SizePackage SizeWeight
GB-HB-R 01ø230*119mmL275*W275*H175mm2.0kg
GB-HB-R 02ø270*122mmL310*W310*H175mm2.5kg
GB-HB-R 03ø310*122mmL360*W360*H175mm3.3kg
GB-HB-R 04ø325*127mmL365*W365*H160mm3.3kg

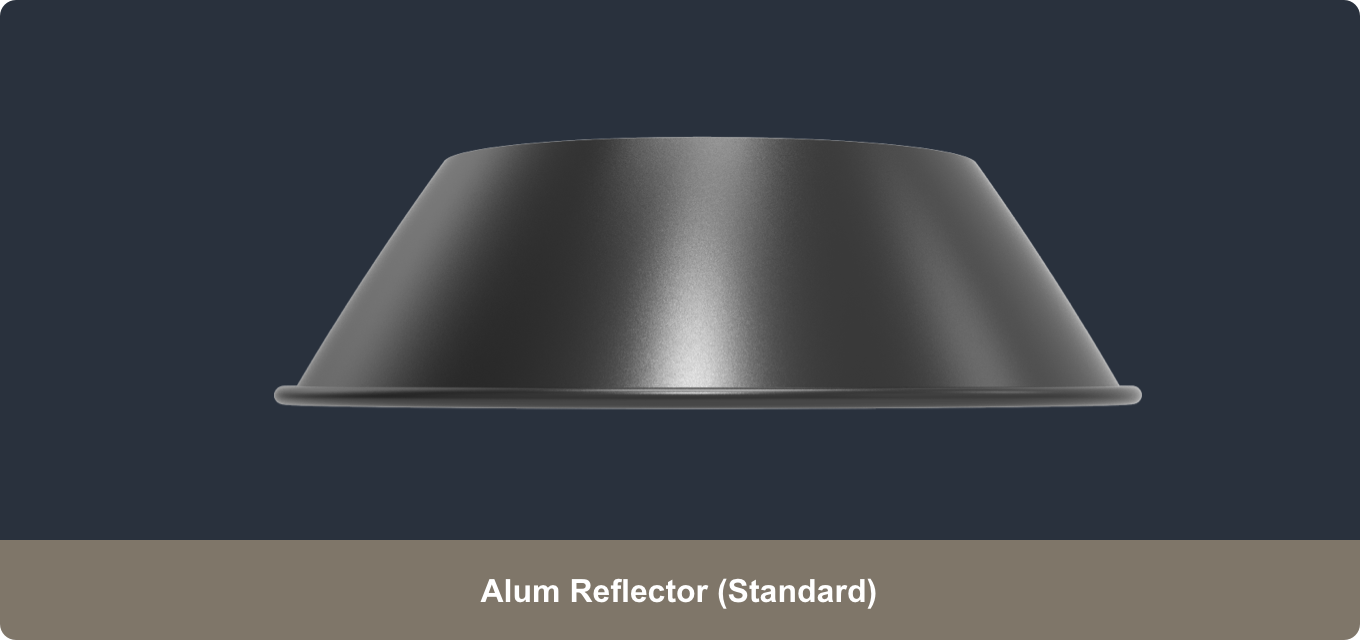

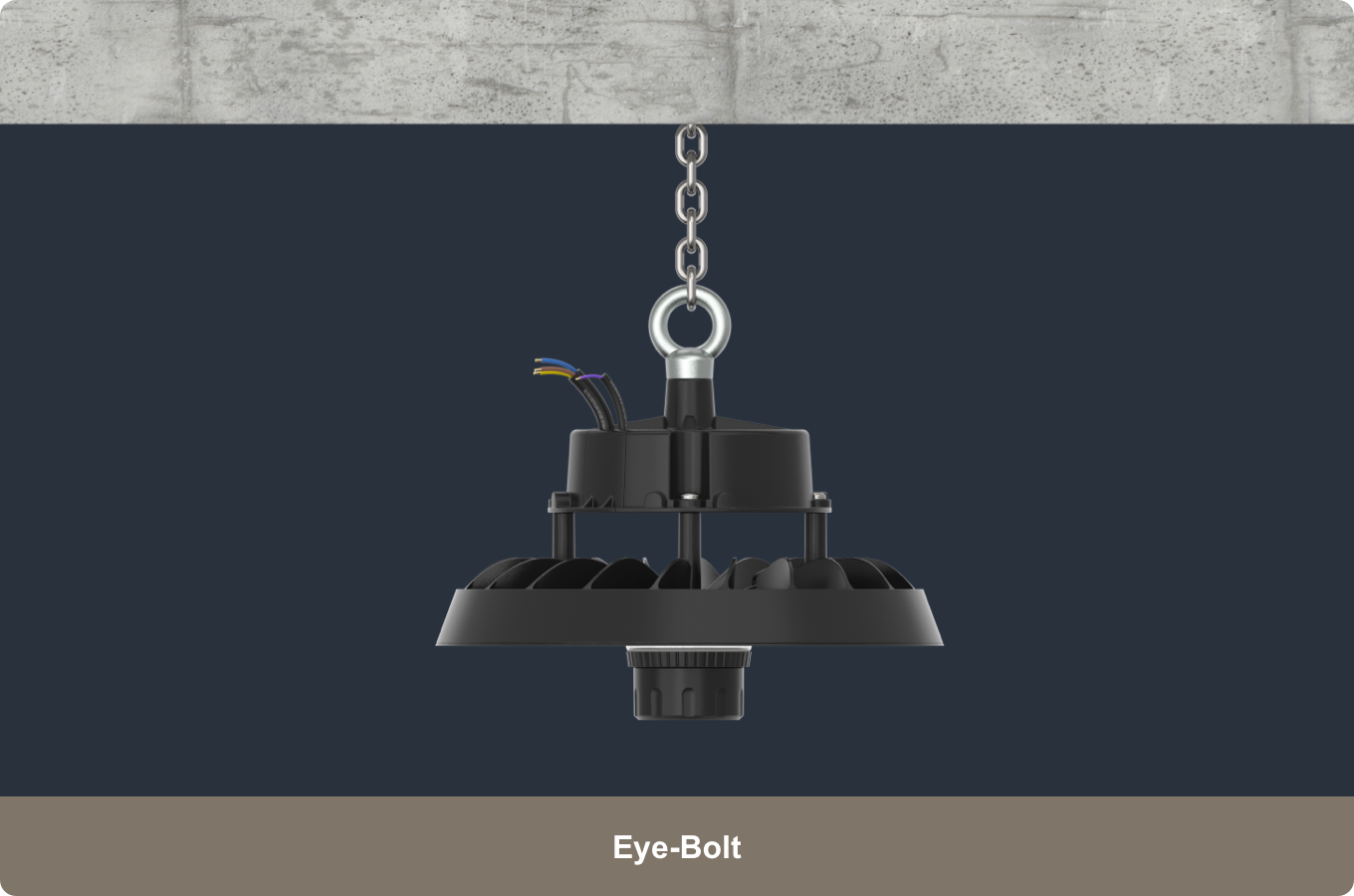

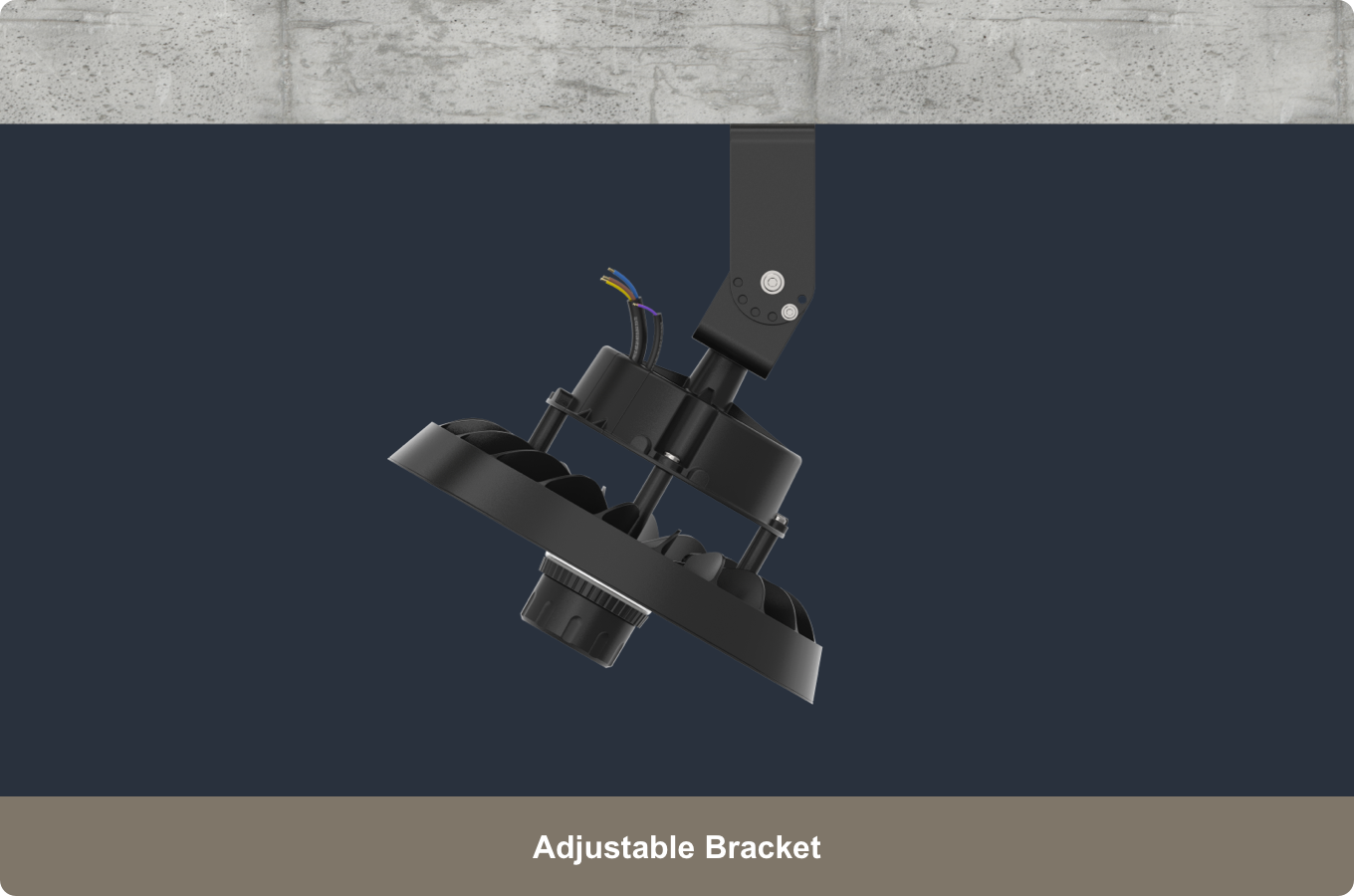

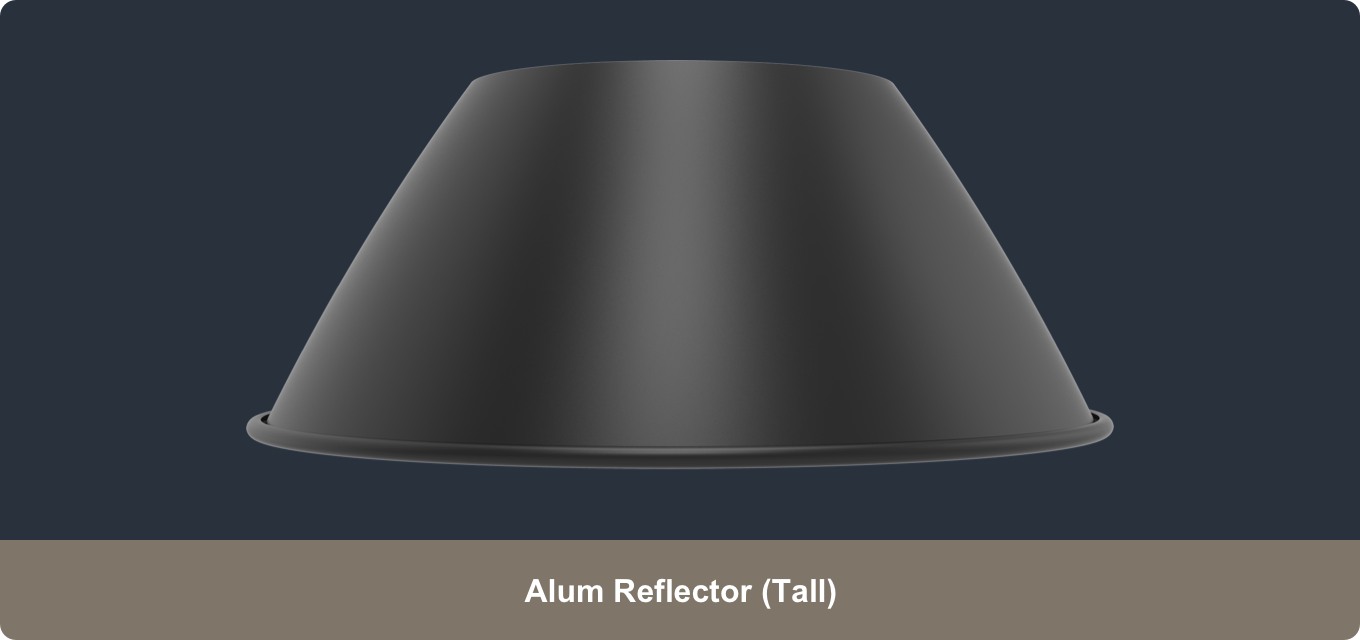

Mounting Options

Tailored Illumination Solutions

Motion Sensor Options

Applications like Warehouses, Distribution Centers, Production Facilities and other Industrial Spaces with occupancy less than 50% and High Ceilings(15-45ft) are ideal environment for sensors. It helps saving energy costs by delivering Light only where you need it, when you need it.
