Industry Light

GB-HB-N SERIES

Industry Light

Durability, Efficiency and Optimal Visibility

Product Description
• 3 sizes for different wattage from 100W to 240W
• High-efficacy LEDs from Lumileds, Bridgelux, or Cree
• High-stability driver from Done (standard) / MEANWELL, MOSO, INVENTRONICS, SOSEN (available)
• High efficiency, 120LM/-150LM/W available
• High light efficiency with perfect light distribution
• Patented private mold. Integrated die-cast aluminum *
• Glare free lens,lens for 80*140°/30°/60°/90° *
• Suitable for squares, stadium, and parking lots
• 3-5 year warranty with excellent stability and longevity Optional features
• Photocell, timer dimming, DALI, and 0/1-10V dimming
• 10KV SPD

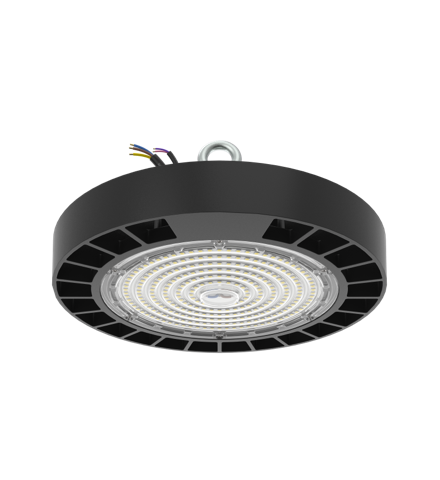

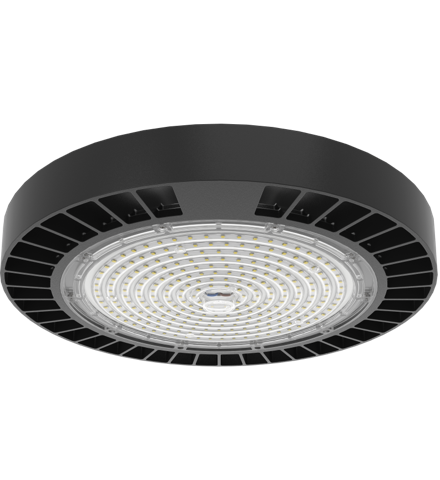

Multi-Angle Display

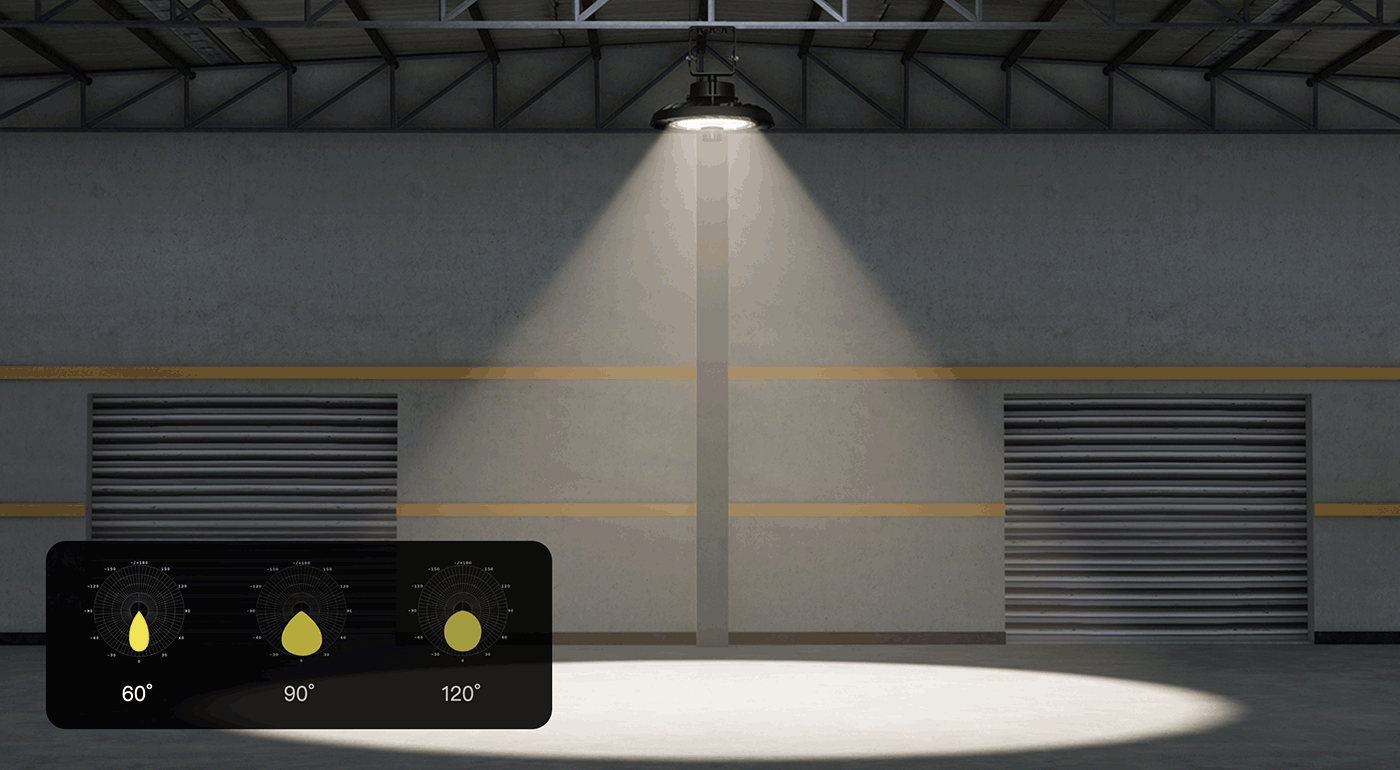

Precise Beam Angle Design. Unlike most suppliers in this industry use public lens in their UFO Shape High Bay. We design our own lenses to reach a Higher Effiency and precise beam control. It is easy to tell the difference when you have the product on hand to compare.

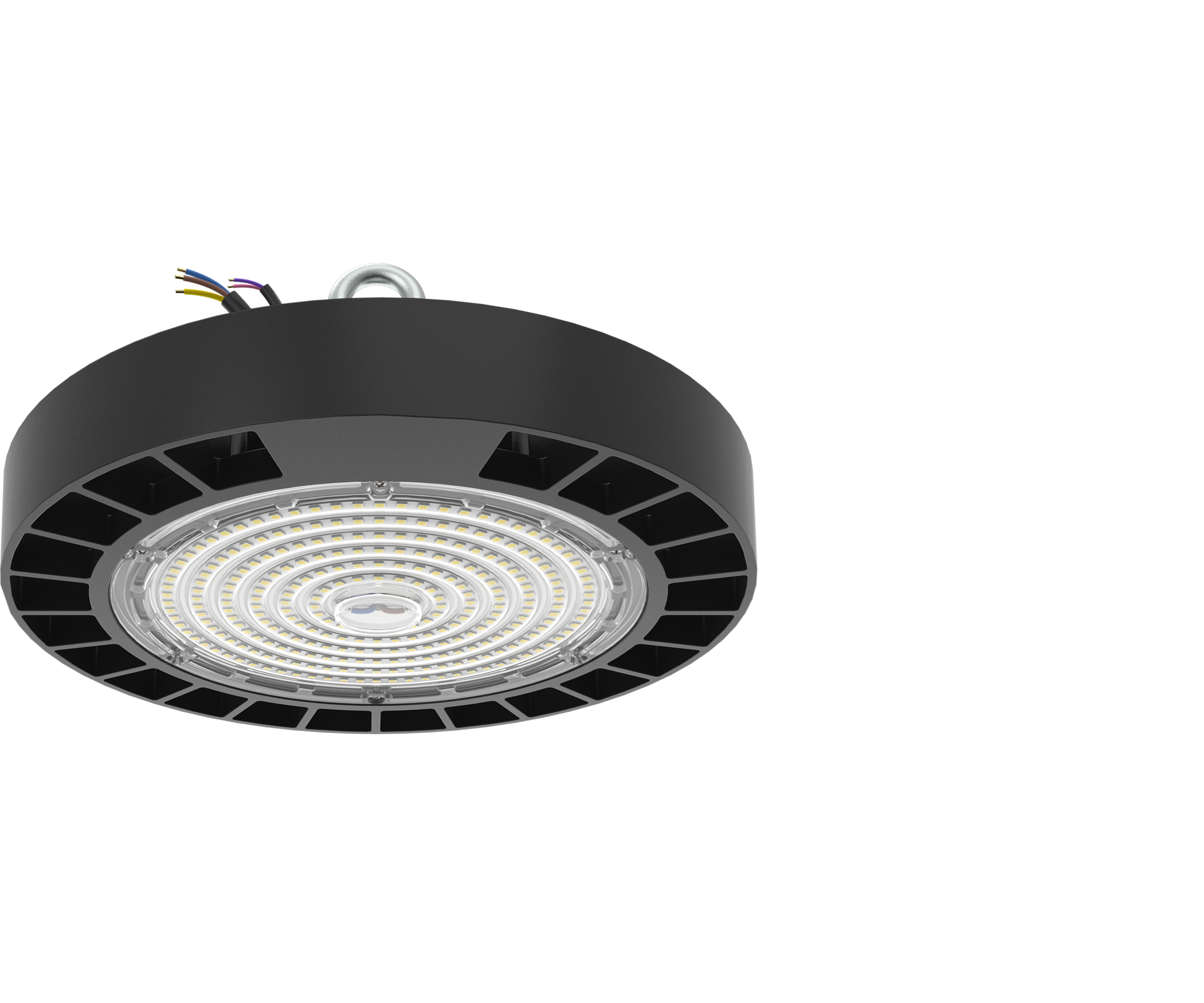

GB-HB-N Series High Bay

Model
GB-HB-N 01
GB-HB-N 02
GB-HB-N 03
GB-HB-N 04
Product Picture
Number of Modules
160
240
320
420
LED Light Power
100W
150W
200W
240W
LED ChipSMD 2835 (standard)/ Bridgelux, Cree, and Lumileds 3030 are available options
Light Efficacy170lm/w (standard) / 190lm/w, 210lm/w (option)
CRI≥ 70 or ≥ 80
Luminous Flux (3030)
17000lm
22500lm
34000lm
40800lm
Color Temperature2700K, 3000K, 4000K, 5000K, 5700K, 6500K
LED Light LifeUp to 100,000hrs LM70,Ta 25℃
DriverSOSEN (standard) / Philips, Lifud (option)
Driver IsolationClass I EU
Frequency50 / 60Hz
Power Factor≥0.95 cos
Control DimmingPlug and Play Zhaga Microwave Sensor/1-10V dimming
Body Parts MaterialADC12 (standard)
OpticPolycarbonate
Beam Angel60° / 90° / 120°
Optional Configuration6KVA standard/ 10KVA SPD (option)
Operation VoltageAC 85-265V
Operating Temperature-35℃~50℃ / 10% ~ 95% (humidity)
Color Stability3 or 5 MacAdam steps
Warranty5 years

Packing Information

ModelLight SizePackage SizeWeight
GB-HB-N 01ø257*111mmL310*W310*H170mm2.6kg
GB-HB-N 02ø298*112mmL360*W360*H175mm3.1kg
GB-HB-N 03ø353*117mmL400*W400*H180mm4.0kg
GB-HB-N 04ø353*117mmL400*W400*H180mm4.0kg

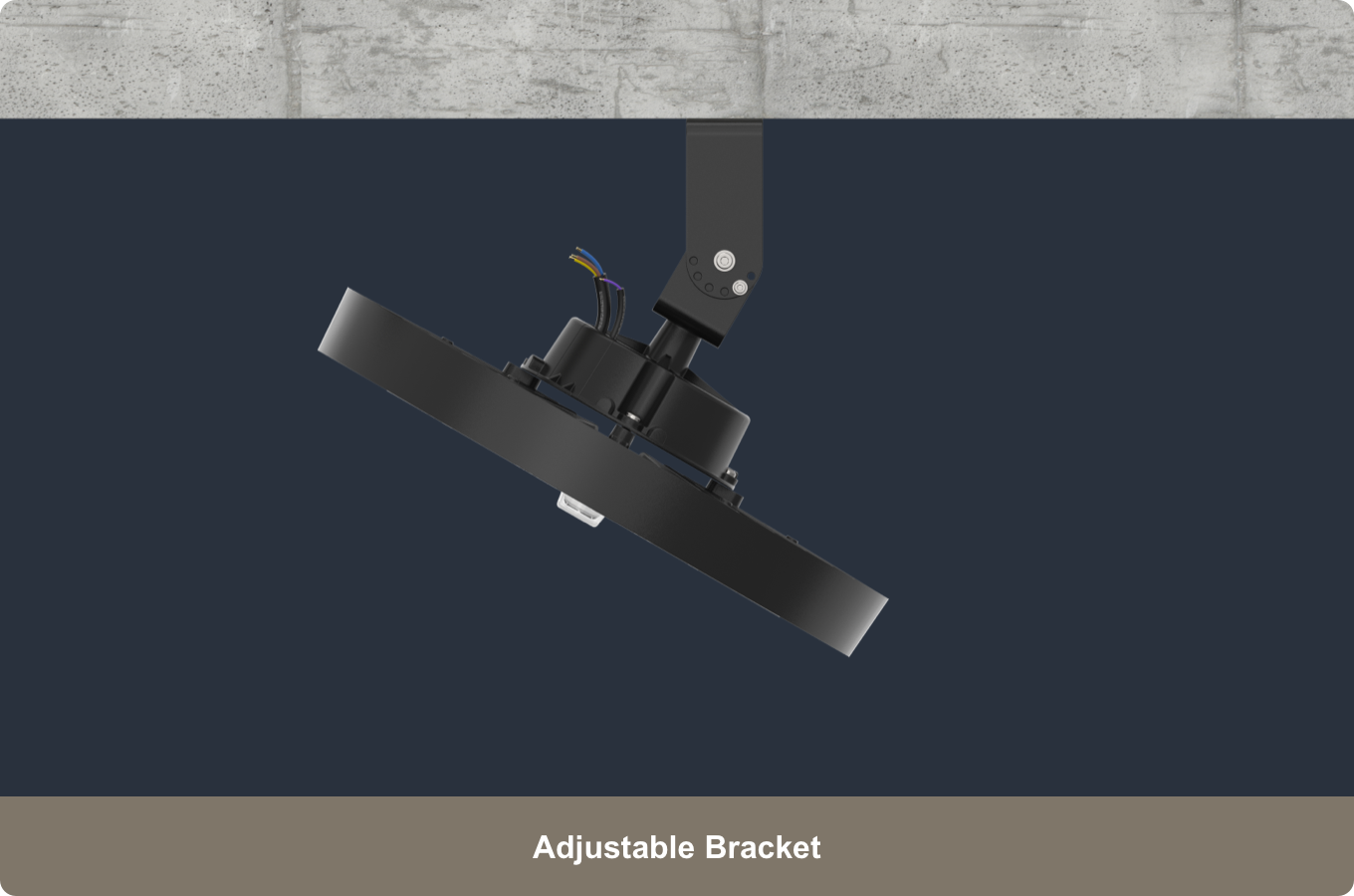

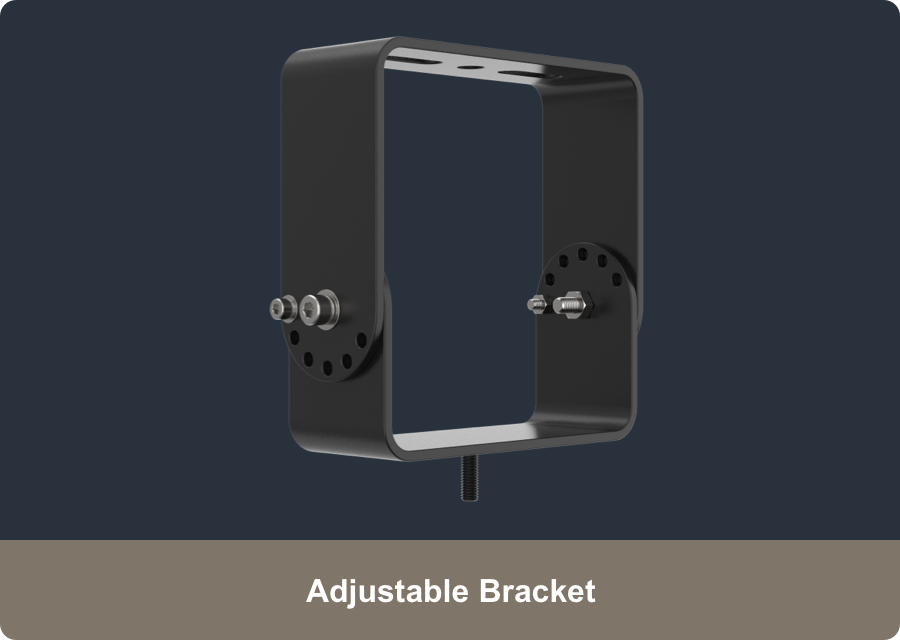

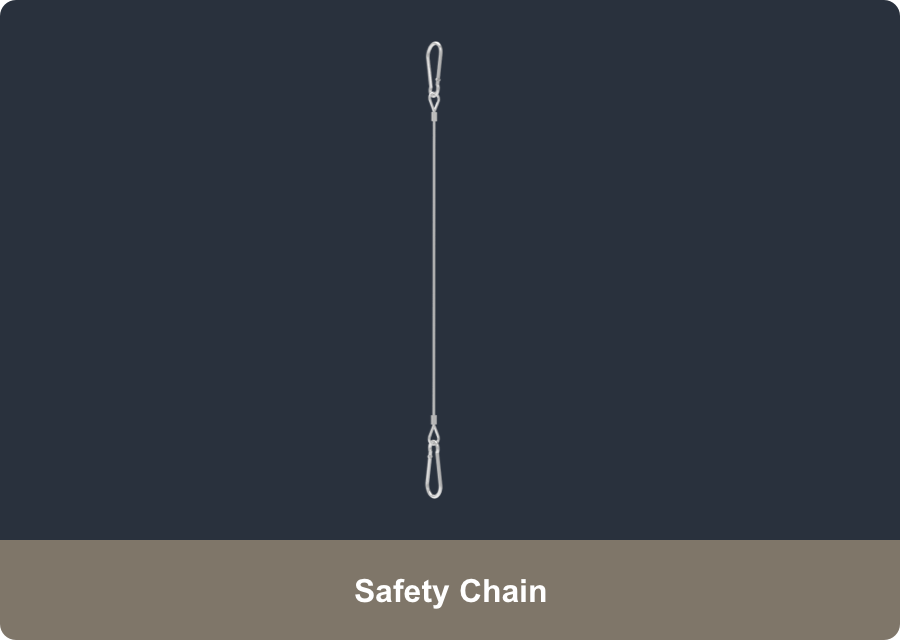

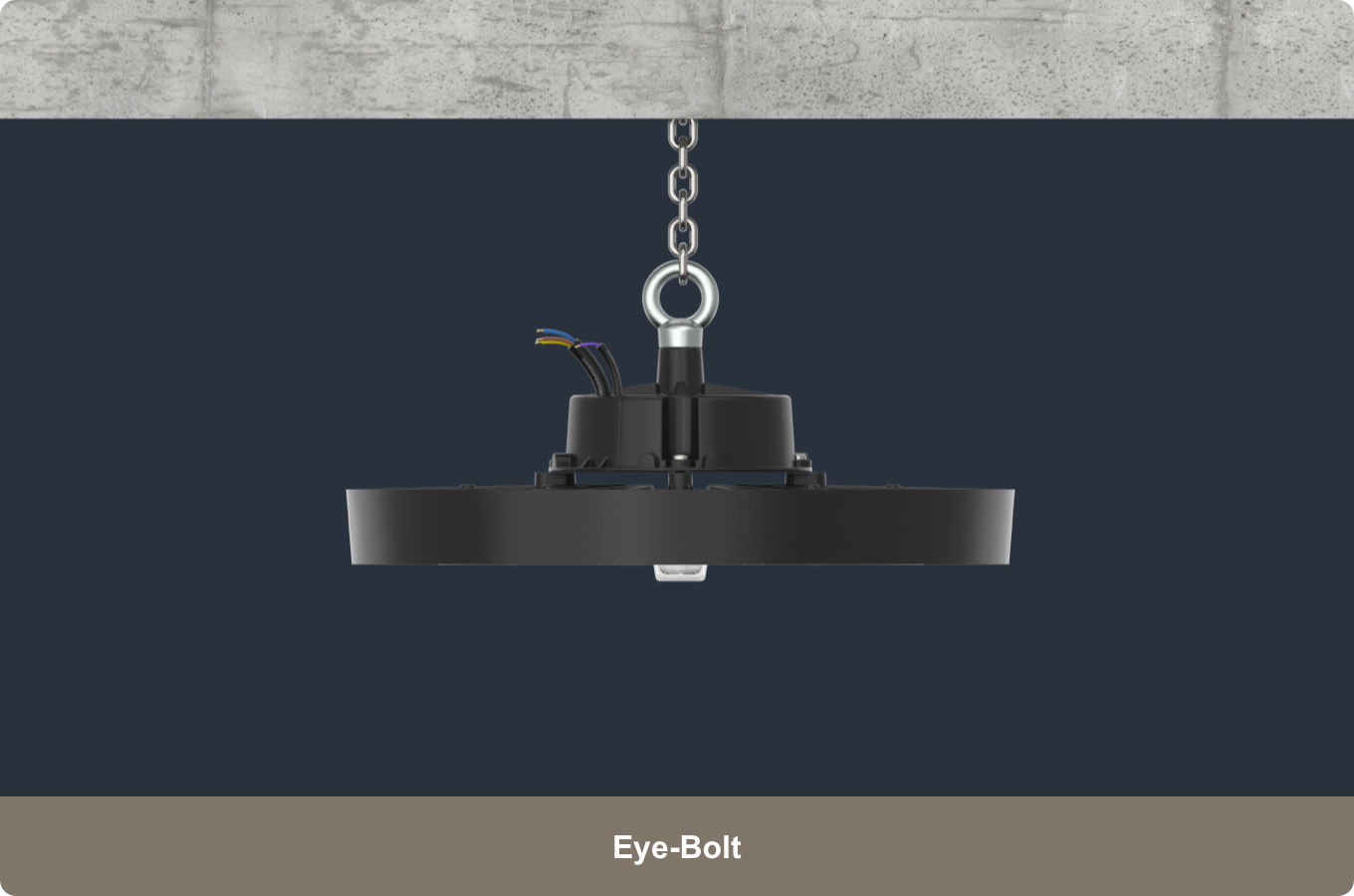

Mounting Options

Tailored Illumination Solutions

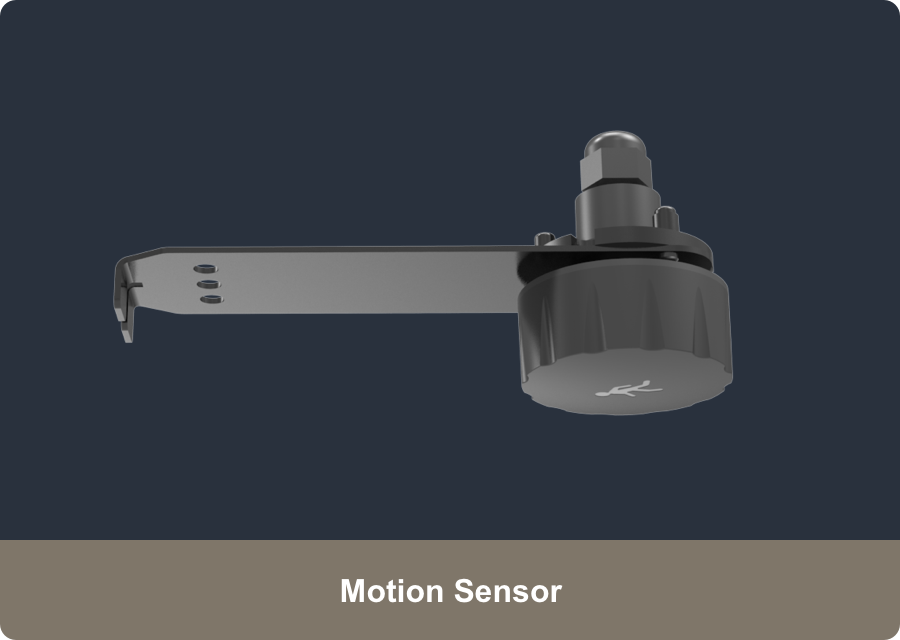

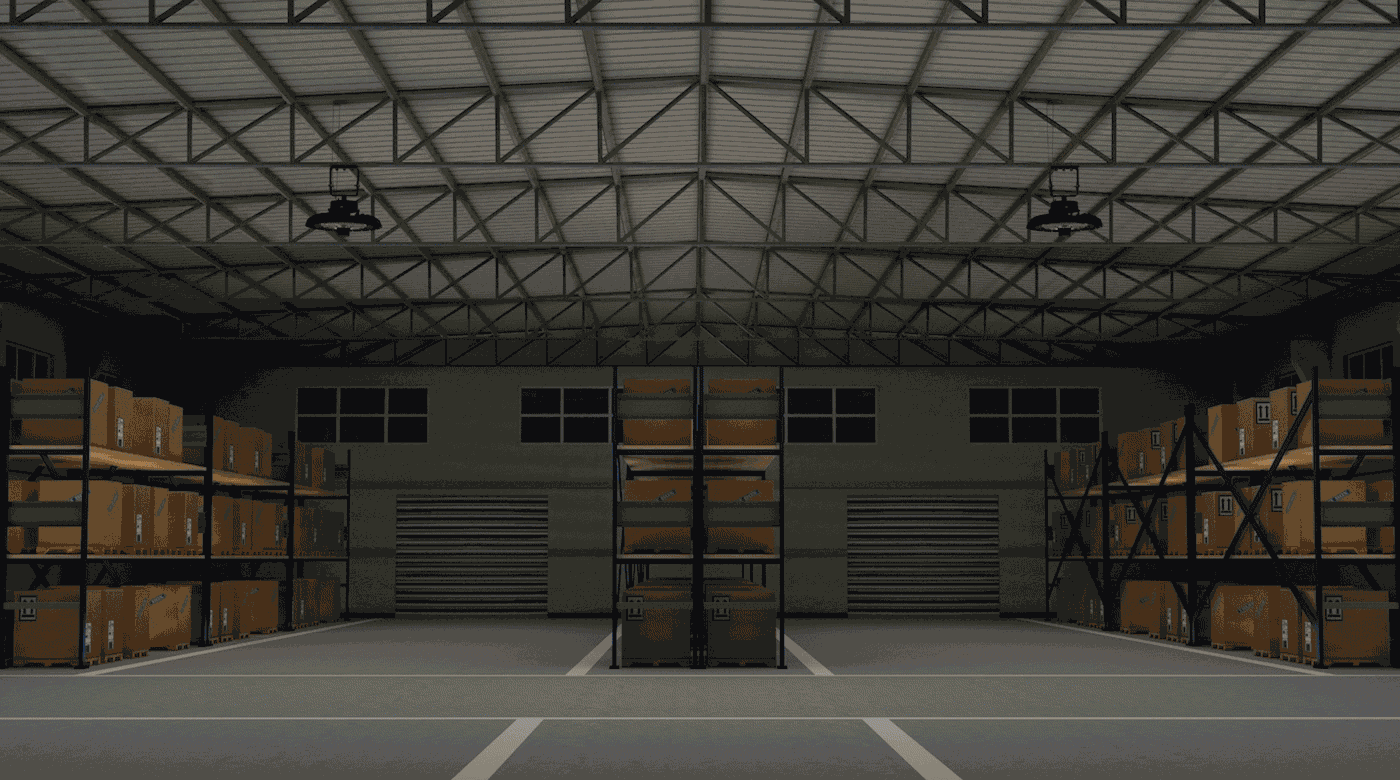

Motion Sensor Options

Applications like Warehouses, Distribution Centers, Production Facilities and other Industrial Spaces with occupancy less than 50% and High Ceilings(15-45ft) are ideal environment for sensors. It helps saving energy costs by delivering Light only where you need it, when you need it.
