Flood light

GB-FLX SERIES

Flood light

Innovative design, excellent heat dissipation and long service life.

Product Description

• 3 sizes for different wattage from 100W to 240W
• High-efficacy LEDs from Lumileds, Bridgelux, or Cree
• High-stability driver from Done (standard) / MEANWELL, MOSO, INVENTRONICS, SOSEN (available)
• High efficiency, 120LM/-150LM/W available
• High light efficiency with perfect light distribution
• Patented private mold. Integrated die-cast aluminum *
• Glare free lens,lens for 80*140°/30°/60°/90° *
• Suitable for squares, stadium, and parking lots
• 3-5 year warranty with excellent stability and longevity Optional features
• Photocell, timer dimming, DALI, and 0/1-10V dimming
• 10KV SPD

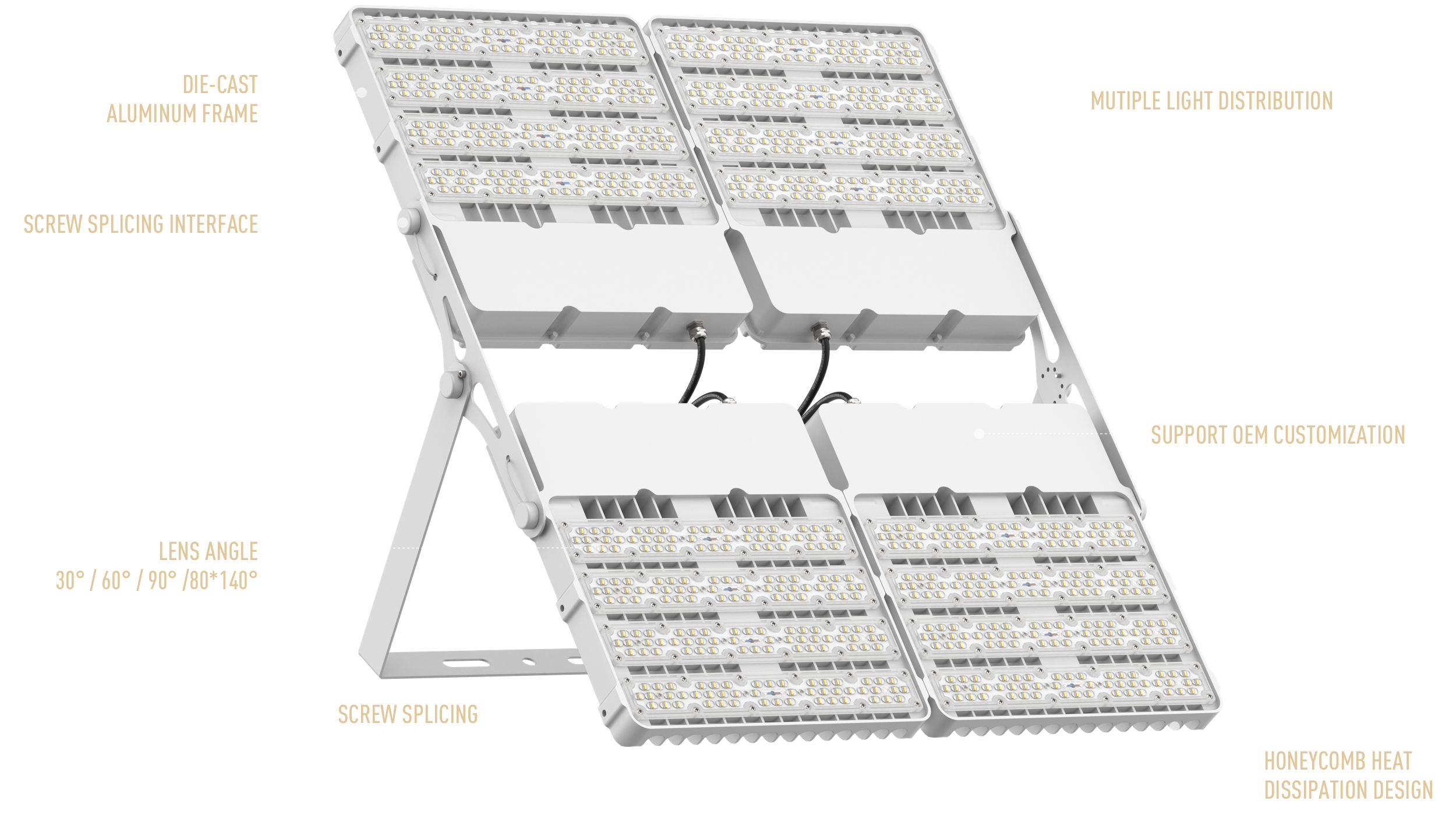

Exploded view, perspective view

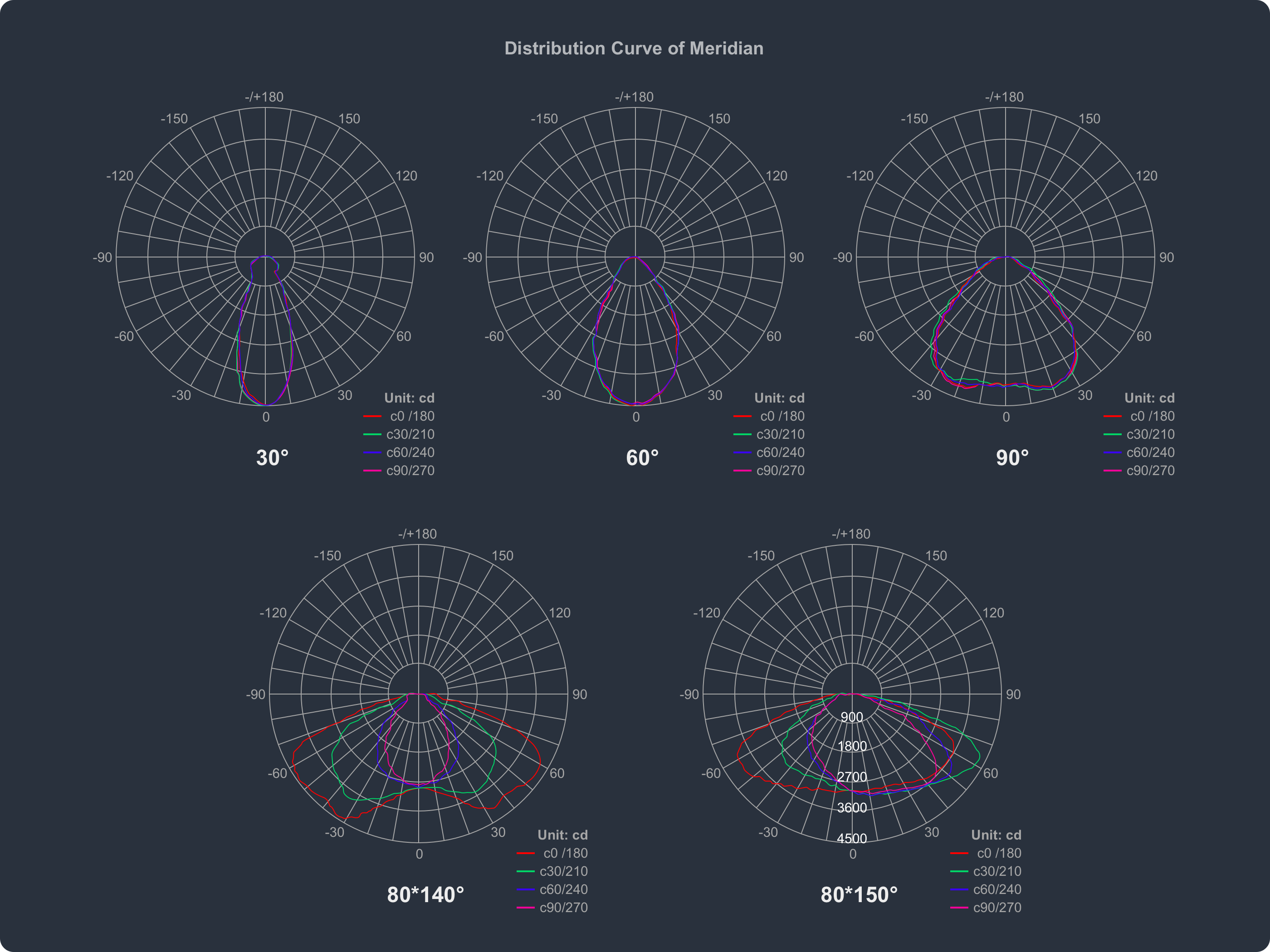

Luminous Intensity Distribution

Technical information

Model	GB-FLX 02 GB-FLX 03 GB-FLX 04

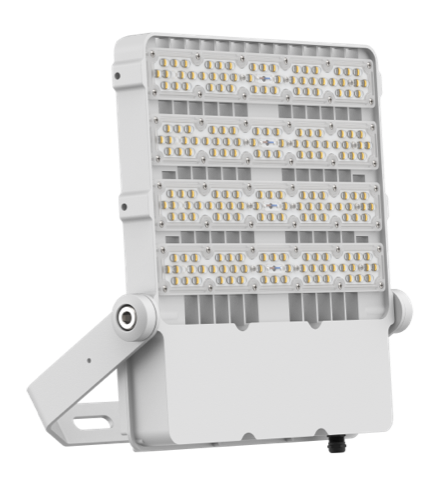

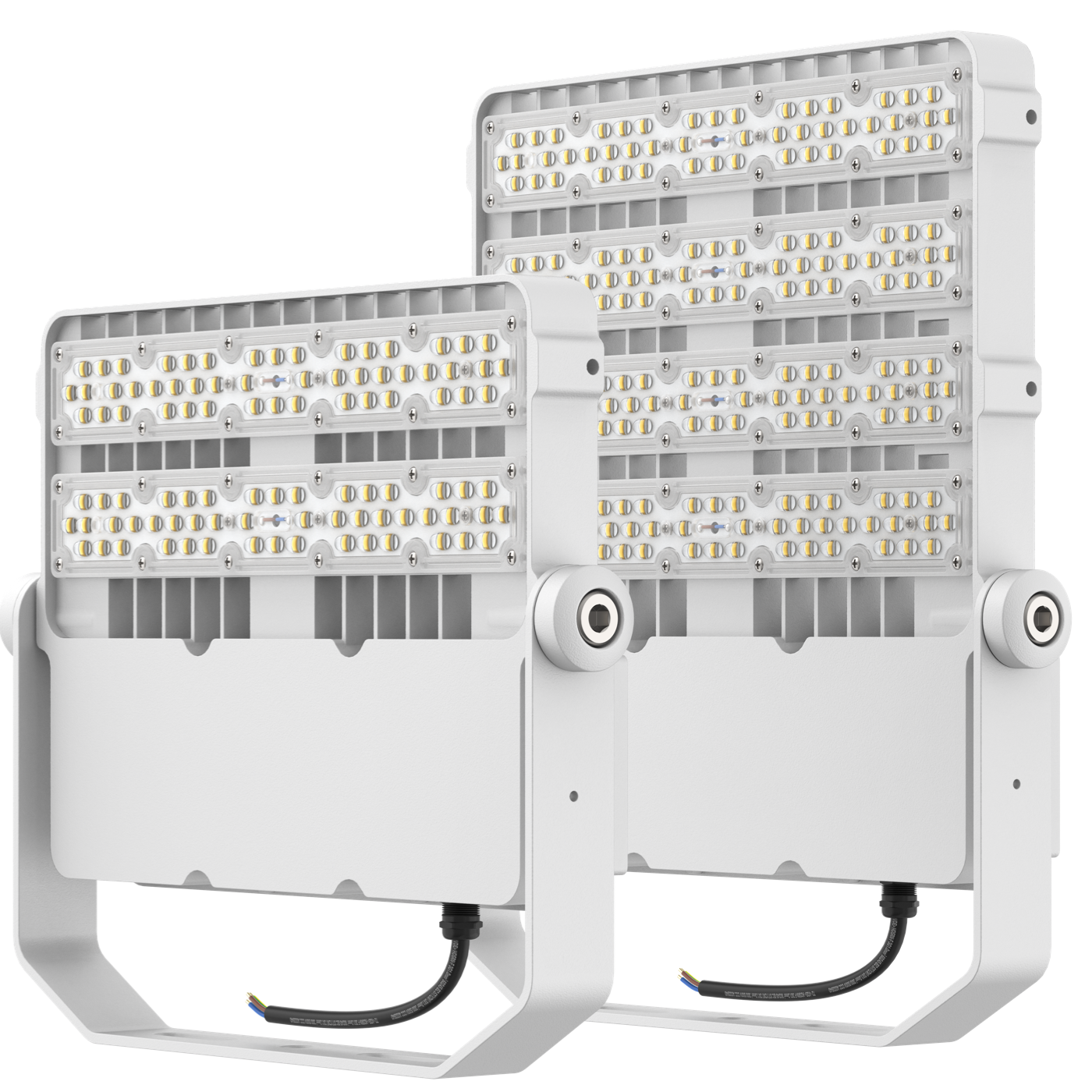

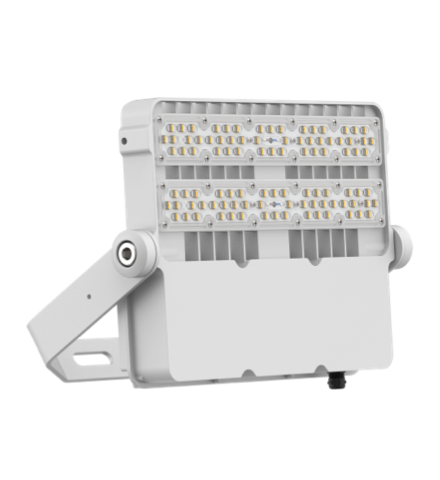

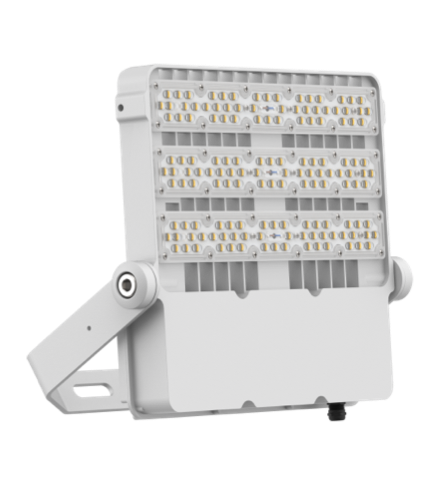

Product Picture
Number of Modules	132 pcs 198 pcs 264 pcs 264 pcs
LED Light Power	100W 150W 200W 240W
LED Chip	Lumileds 3030 (standard), Bridgelux, Cree, and Osram are available options
Light Efficacy	130lm/w (standard)
CRI	≥ 70 or ≥ 80
Luminous Flux (3030)	12000lm 18000lm 24000lm 31200lm
Color Temperature	2700K, 3000K, 4000K, 5000K, 5700K, 6500K
LED Light Life	Up to 100,000hrs LM70,Ta 25℃
Driver	Done (standard), Mean well, MOSO, Inventronics, Philips, SOSEN (option)
Driver Isolation	Class I or Class II
Frequency	50 / 60Hz
Power Factor	≥0.95 cos
Control Dimming	DALI / 1-10V / Timing / PWM
Body Parts Material	ADC12 (standard) / LM6 (option)
Optic	PC (standard) / PMMA (option)
Beam Angel	80*140° / 30° / 60° / 90°
Optional Configuration	10KV / 20KV SPD
Operation Voltage	AC 85-265V
Operating Temperature	-35℃~50℃ / 10% ~ 95% (humidity)
Color Stability	3 or 5 MacAdam steps
Warranty	3 years (standard) / 5 years (option)

Packing Information

Model	Light Size	Package Size	Weight
GB-FLX 02	36524560mm
GB-FLX 03	36530060mm
GB-FLX 04	36535560mm
