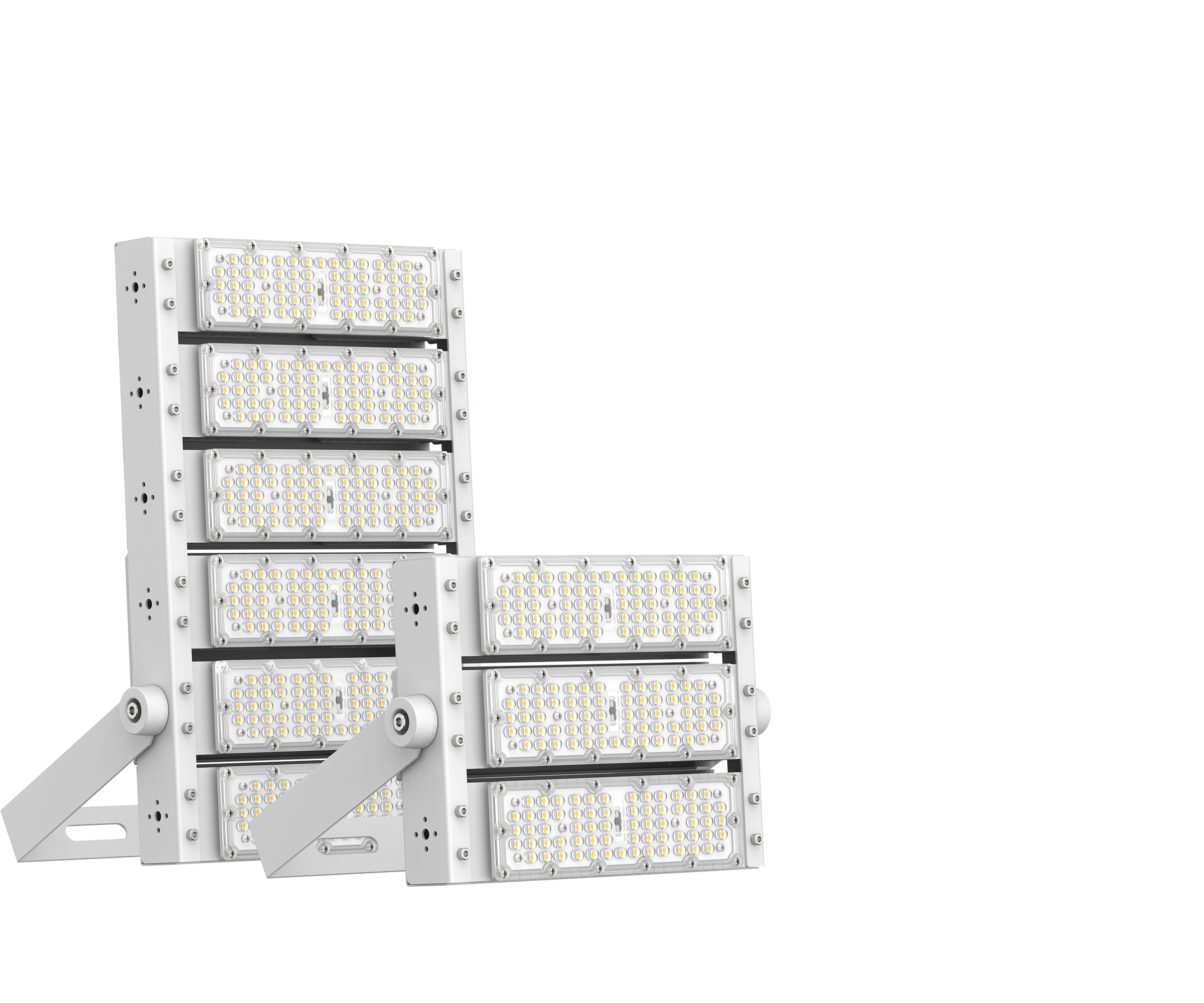

Flood light

GB-FLS SERIES

Flood light

Efficient light distribution module, better protection level

Product Description
• 5 sizes for different wattage from 30W to 300W
• High-efficacy LEDs from Lumileds, Bridgelux, or Cree
• High-stability driver from Done (standard) / MEANWELL, MOSO, INVENTRONICS, SOSEN (available)
• Super luminaire efficiency up to 120 lm/w
• High light efficiency with perfect light distribution
• LED modular design, easy to replace and maintain *
• Hot dipped galvanized steel frame, economical and durable *
• Economical and efficient lighting selection *
• Anti-fall protector, high safety *
• Suitable for squares, stadium, and parking lots
• 3-5 year warranty with excellent stability and longevity Optional features
• Photocell, timer dimming, DALI, and 0/1-10V dimming
• 10KV SPD

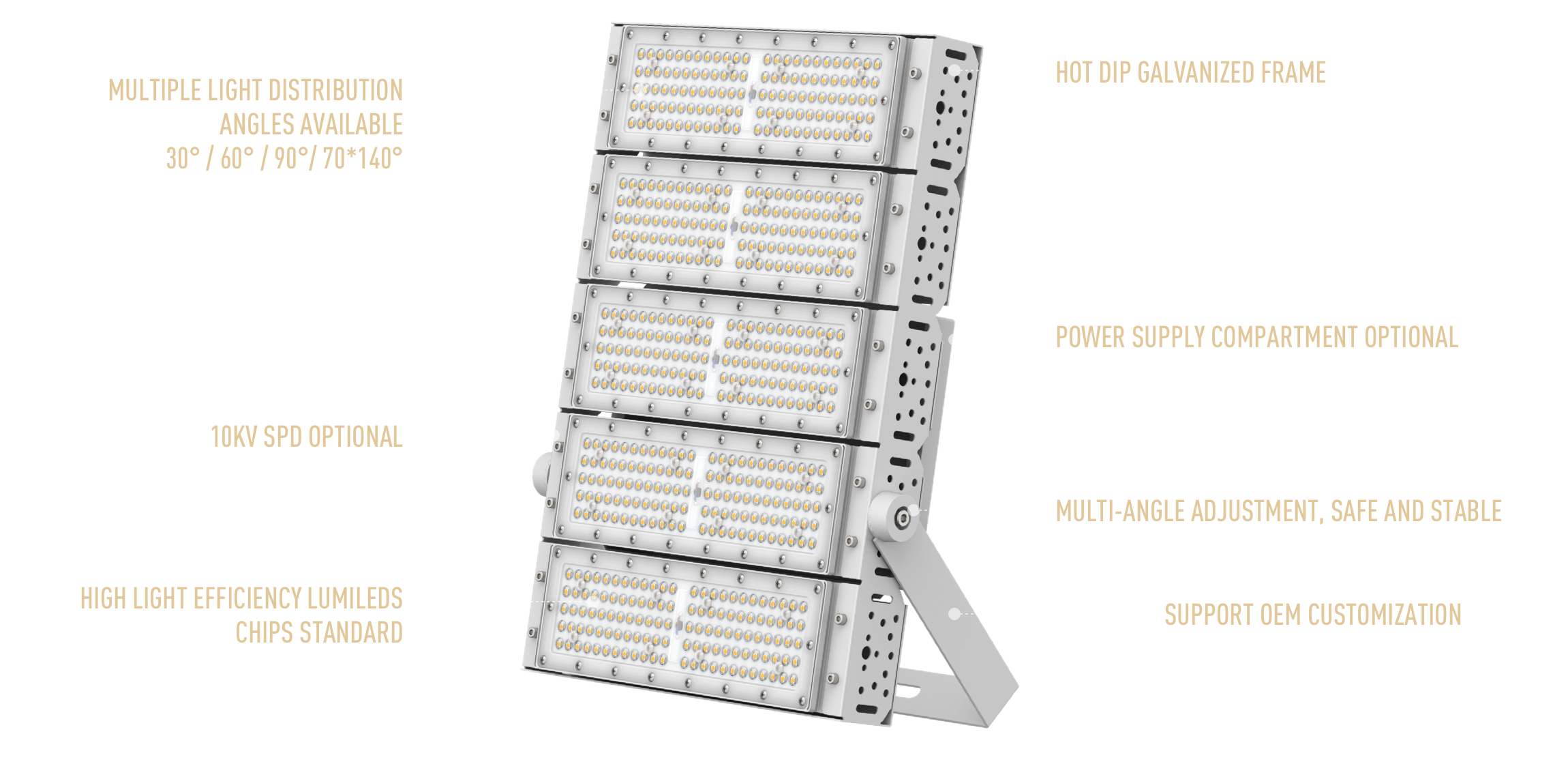

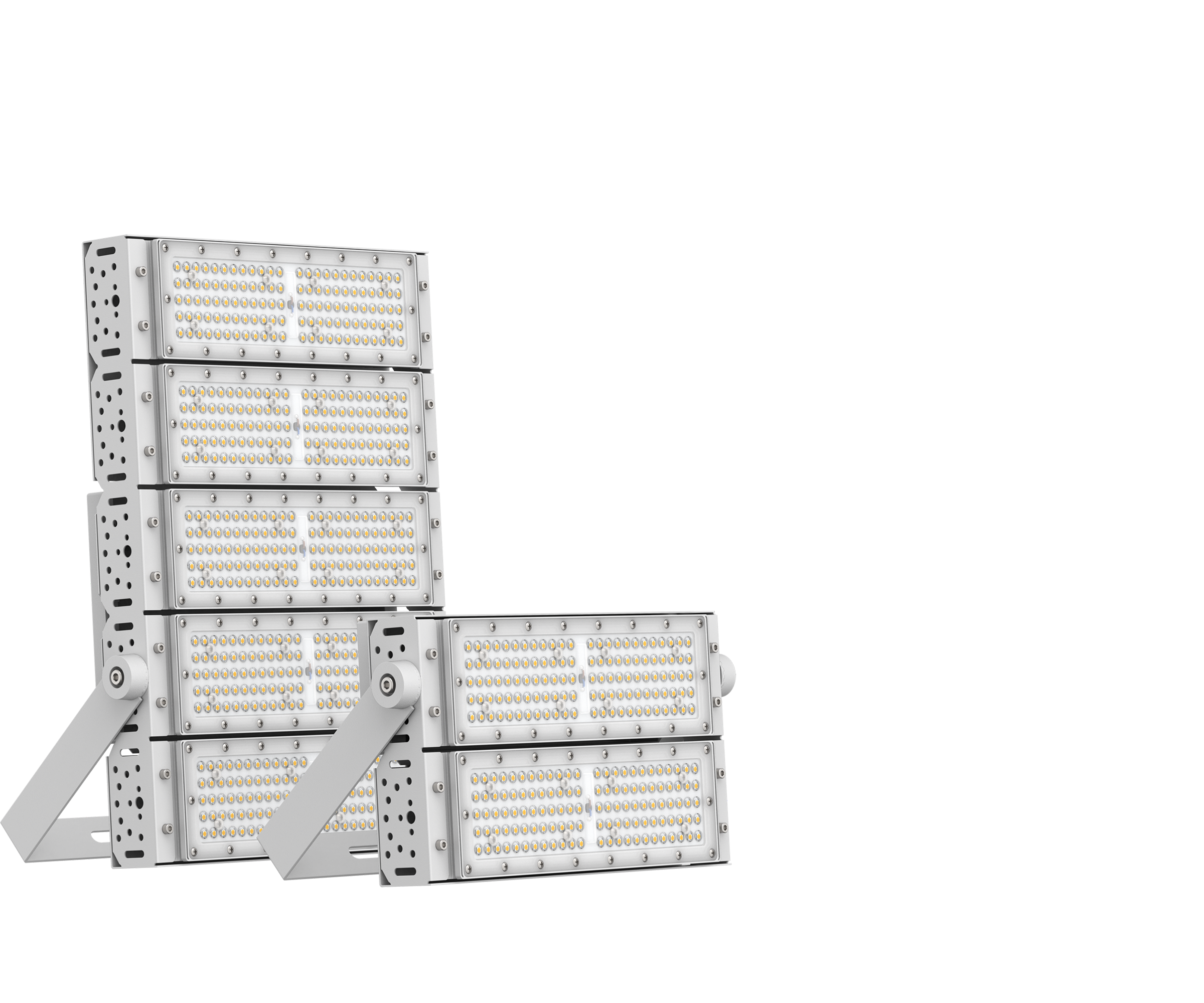

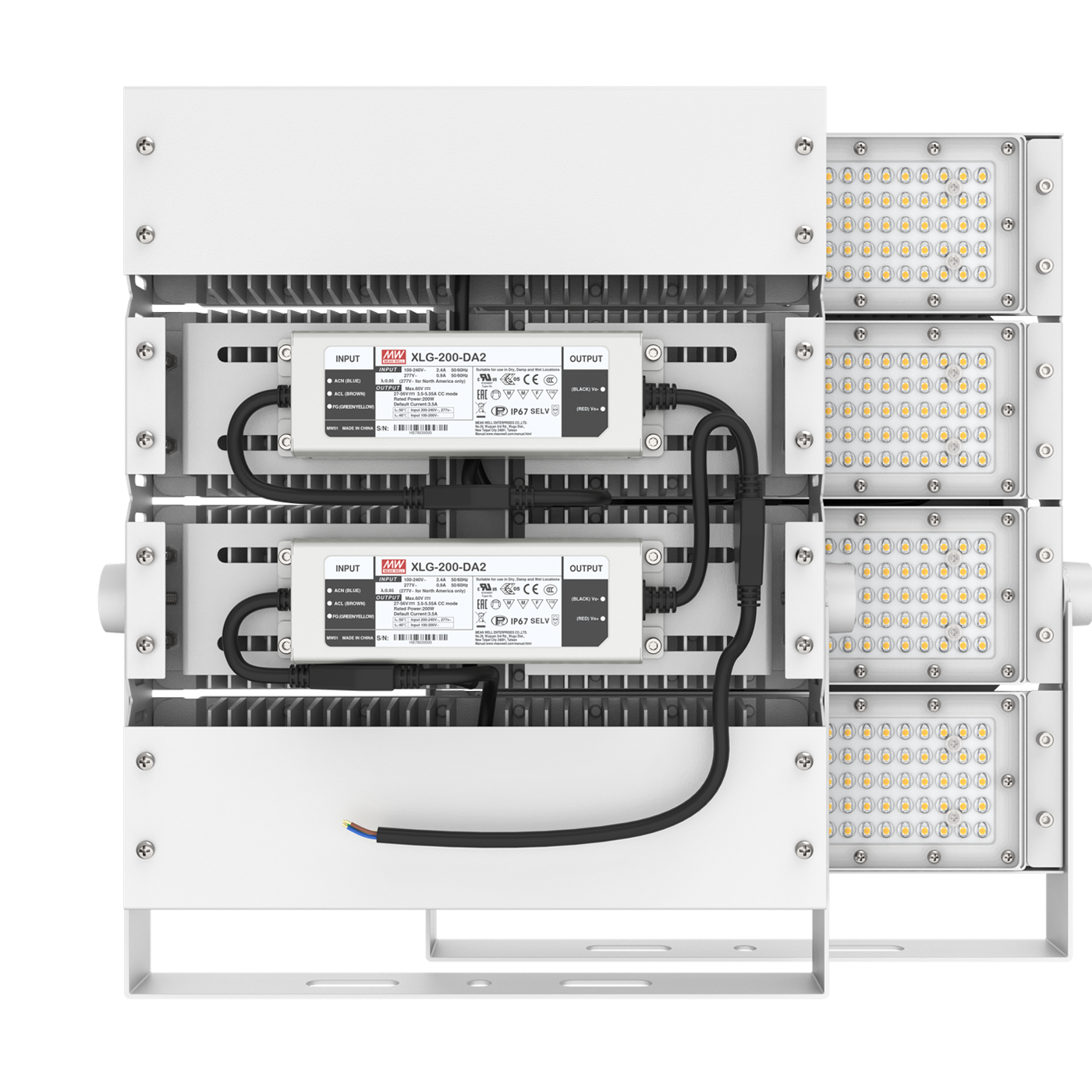

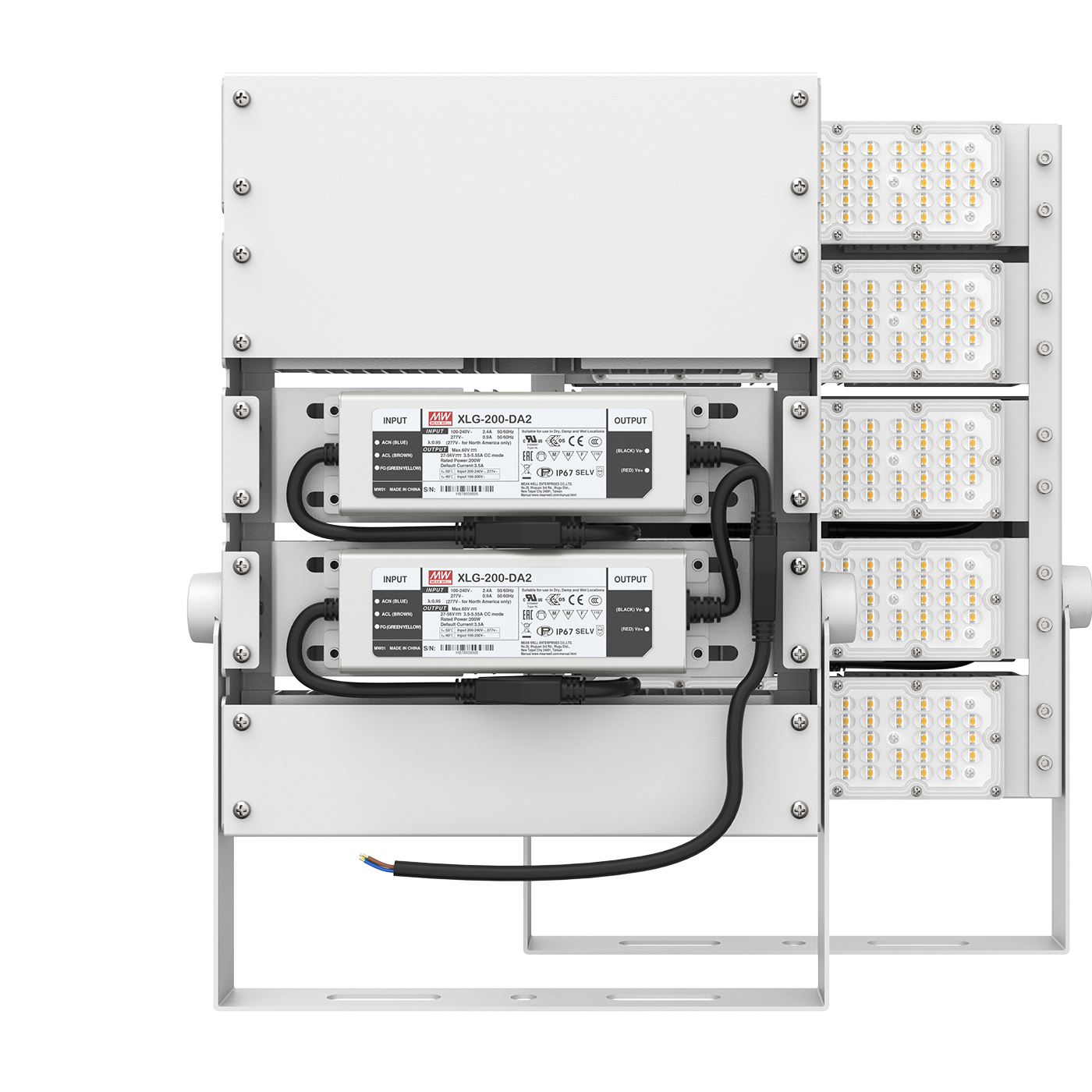

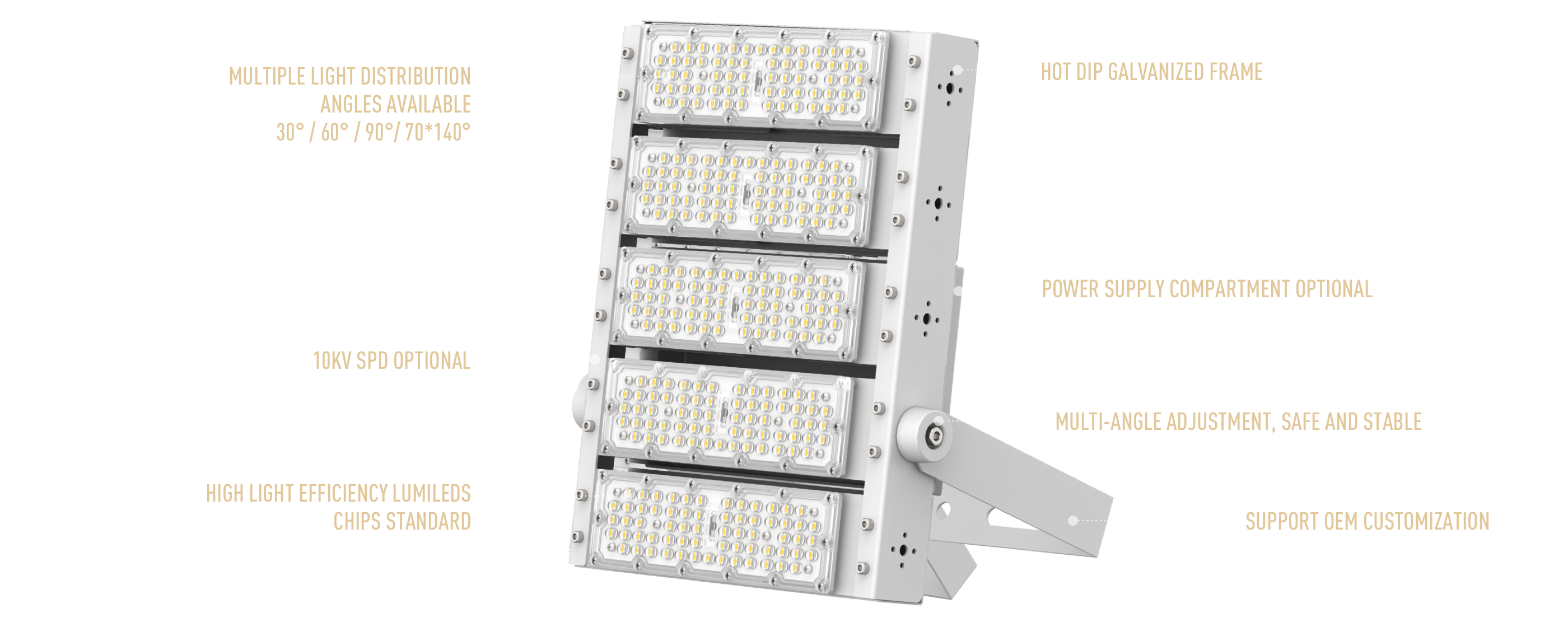

Exploded view, perspective view

Technical information

Model
GB-FL S01
GB-FL S02
GB-FL S03
GB-FL S04
GB-FL S05

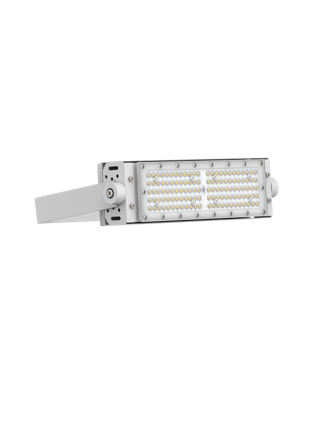

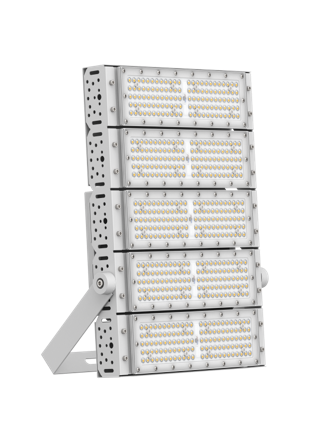

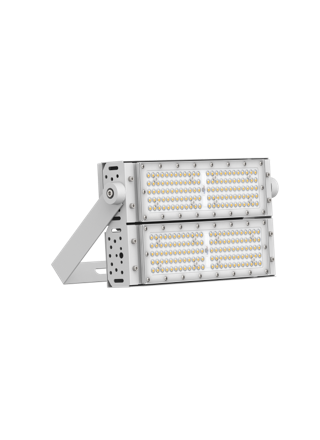

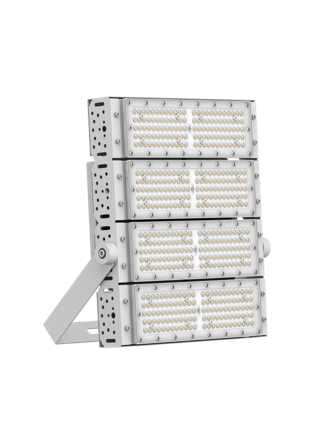

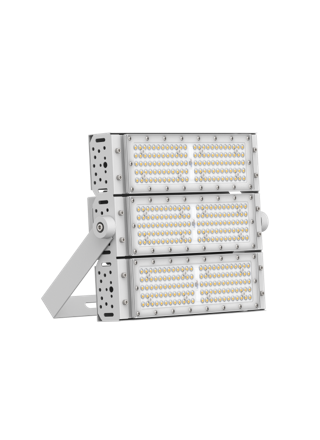

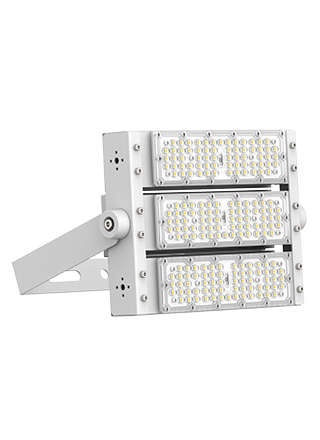

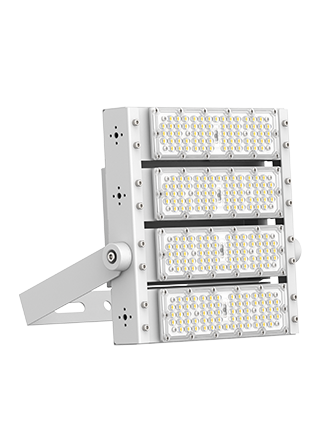

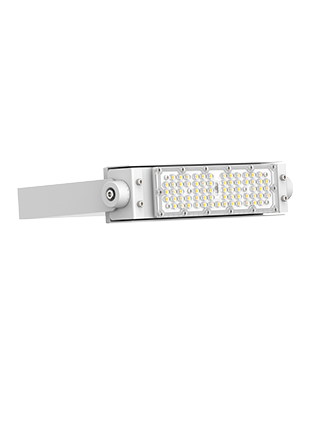

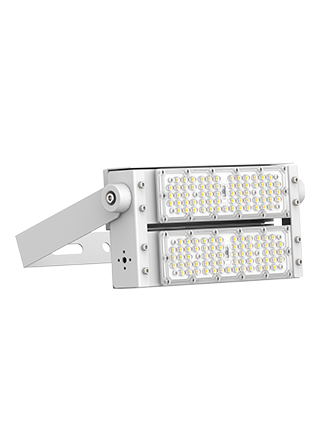

Product Picture
Number of Modules
1
2
3
4
5
LED Light Power
40w / 50w / 60w
80w / 100W / 120w
150w / 180w
200w / 240w
250W / 300W
LED ChipLumileds 3030 (standard), Bridgelux, Cree, and Osram are available options
Light Efficacy110-130lm/w; 140-160lm/w (option)
CRI≥ 70 or ≥ 80
Luminous Flux (3030)
4800lm / 6000lm / 7200lm
9600lm / 12000lm / 14400lm
18000lm / 23400lm
24000lm / 31200lm
30000lm / 39000lm
Color Temperature2700K, 3000K, 4000K, 5000K, 5700K, 6500K
LED Light LifeUp to 100,000hrs LM70,Ta 25℃
DriverDone (standard), Mean well, MOSO, Inventronics, Philips, SOSEN (option)
Driver IsolationClass I or Class II
Frequency50 / 60Hz
Power Factor≥0.95 cos
Control DimmingDALI / 1-10V / Timing / PWM
Body Parts MaterialADC12 (standard) / LM6 (option)
OpticPC (standard) / PMMA (option)
Beam Angel70*140° / 30° / 60° / 90°
Optional Configuration10KV / 20KV SPD
Operation VoltageAC 90-305V or AC 220-240V
Operating Temperature-35℃~50℃ / 10% ~ 95% (humidity)
Color Stability3 or 5 MacAdam steps
Warranty3 years (standard) / 5 years (option)

Packing Information

ModelLight SizePackage SizeWeight
GB-FL S0175*360*120mm
GB-FL S02170*360*120mm
GB-FL S03250*360*120mm
GB-FL S04330*360*120mm
GB-FL S05410*360*120mm
