Flood light

GB-FL08 SERIES

Flood light

Perfect Thermal Management For Long-term Performance

Product Description
• 5 sizes for different wattage from 250W to 1250W
• High-efficacy 3030/5050 LED chips from XUYU.
• High-stability driver from Done (standard) / MEANWELL, MOSO, INVENTRONICS, SOSEN (available)
• Super luminaire efficiency up to 150 lm/w
• Wide choice of optics to suit more applications (asymmetrical and symmetrical)  *
• The single module matches the reflector to reduce light pollution *
• Power & CCT Adjustable by Remote *
• Get more energy saving with a smart microwave sensor *
• Suitable for squares, stadium, and parking lots
• 5 year warranty with excellent stability and longevity

Optional features
• 0-10V/ DALI2.0/ Instant lighting control
• SPD: 6KV-Line-Line, 6KV-Line-Earth

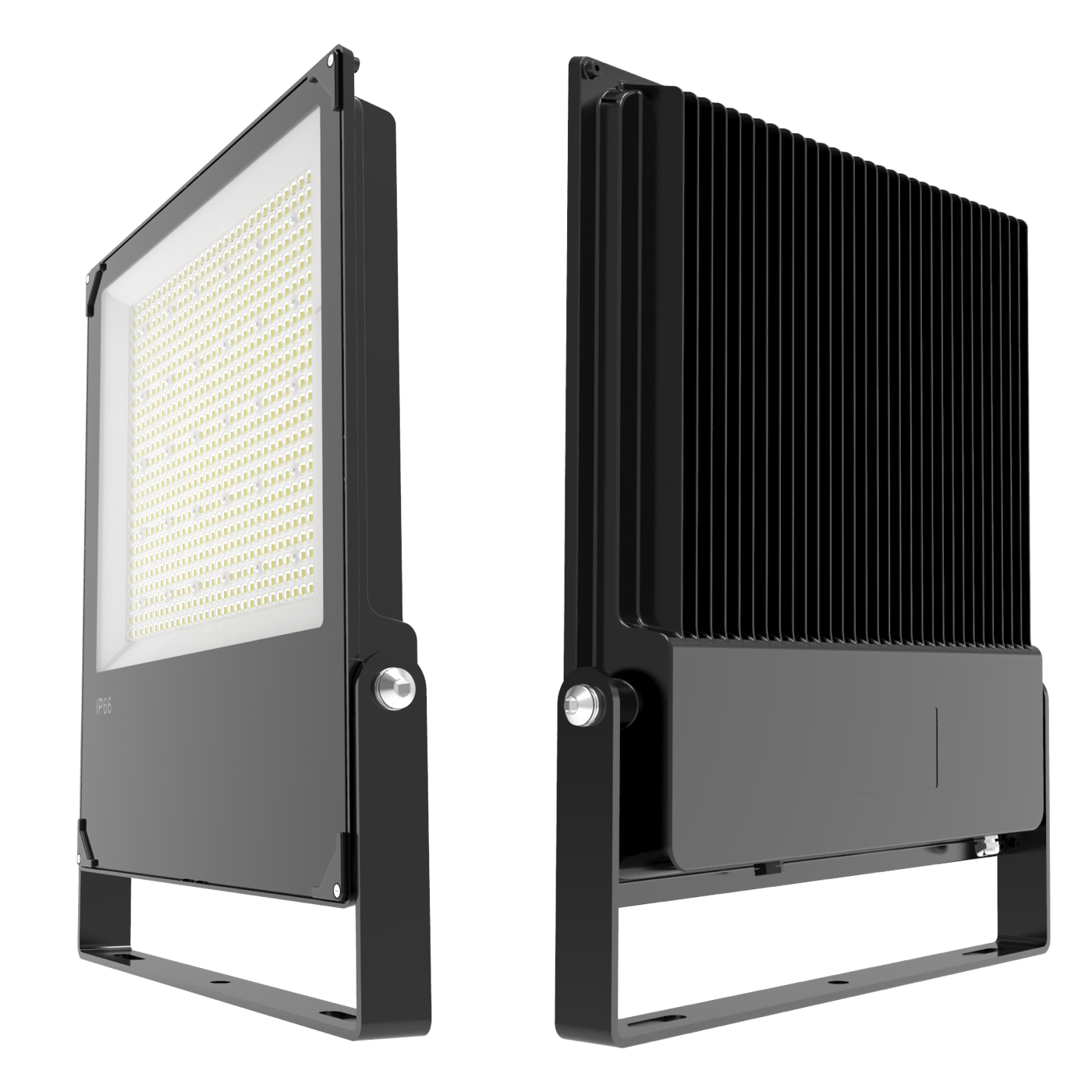

Exploded view, perspective view

Multi-Angle Display

30°/ 60°/ 90° lens are available.

Multi-Angle Display

Asymmetrical Light Distribution helps to focus the Light on the required area. Choose our professional asymmetrical optical lens with excellent back Light control.

Technical information

Model
GB-FL08-100W
GB-FL08-150W
GB-FL08-200W
GB-FL08-240W
GB-FL08-300W
GB-FL08-400W
GB-FL08-480W
Product Picture
Number of Modules
120
180
240
400
400
720
720
LED Light Power
100W
150W
200W
240W
300W
400W
480W
LED ChipSMD3030
Light Efficacy140lm/w (standard)
CRIRa70
Luminous Flux (3030)
14000lm
21000lm
28000lm
33600lm
42000lm
56000lm
67200lm
Color Temperature3000K/ 4000K/ 5000K/ 5700K/ 6500K
LED Light LifeUp to 100,000hrs LM70, Ta 25℃
DriverSosen (standard), Mean well, MOSO, Inventronics, Philips (option)
Driver IsolationClass I EU
Power Factor0.9
Control Dimming0-10V/ DALI/ Instant lighting control
Body Parts MaterialADC12 (standard) / LM6 (option)
OpticPC (standard)/ PMMA (option)
Beam Angel30° / 60° / 90° / 120°            / T2 / T3 / T4
Surge protection options (kV)6KV-Line-Line, 6KV-Line-Earth
Operation VoltageAC 120-277V, 50 / 60Hz
Operating Temperature-30℃~50℃ / 10% ~ 95% (humidity)
Color Stability3 or 5 MacAdam steps
Color Stability5 years

Packing Information

ModelLight SizePackage SizeWeight20GP40HQ
GB-FL04-100W361*328*55mmL400*W375*H110mm / 1pcs4.0kg5.4kg5.4kg
GB-FL04-150W361*406*57mmL455*W400*H110mm / 1pcs5.1kg15.2kg15.2kg
GB-FL04-200W363*468*58mmL525*W400*H110mm / 1pcs20.3kg5.4kg5.4kg
GB-FL04-300W423*542*71mmL615*W465*H135mm / 1pcs24.5kg15.2kg15.2kg
GB-FL04-400W423*542*71mmL615*W465*H135mm / 1pcs30.9kg5.4kg5.4kg
GB-FL04-500W521*656*83mmL735*W575*H145mm / 1pcs24.5kg15.2kg15.2kg
GB-FL04-600W521*656*83mmL735*W575*H145mm / 1pcs30.9kg5.4kg5.4kg
