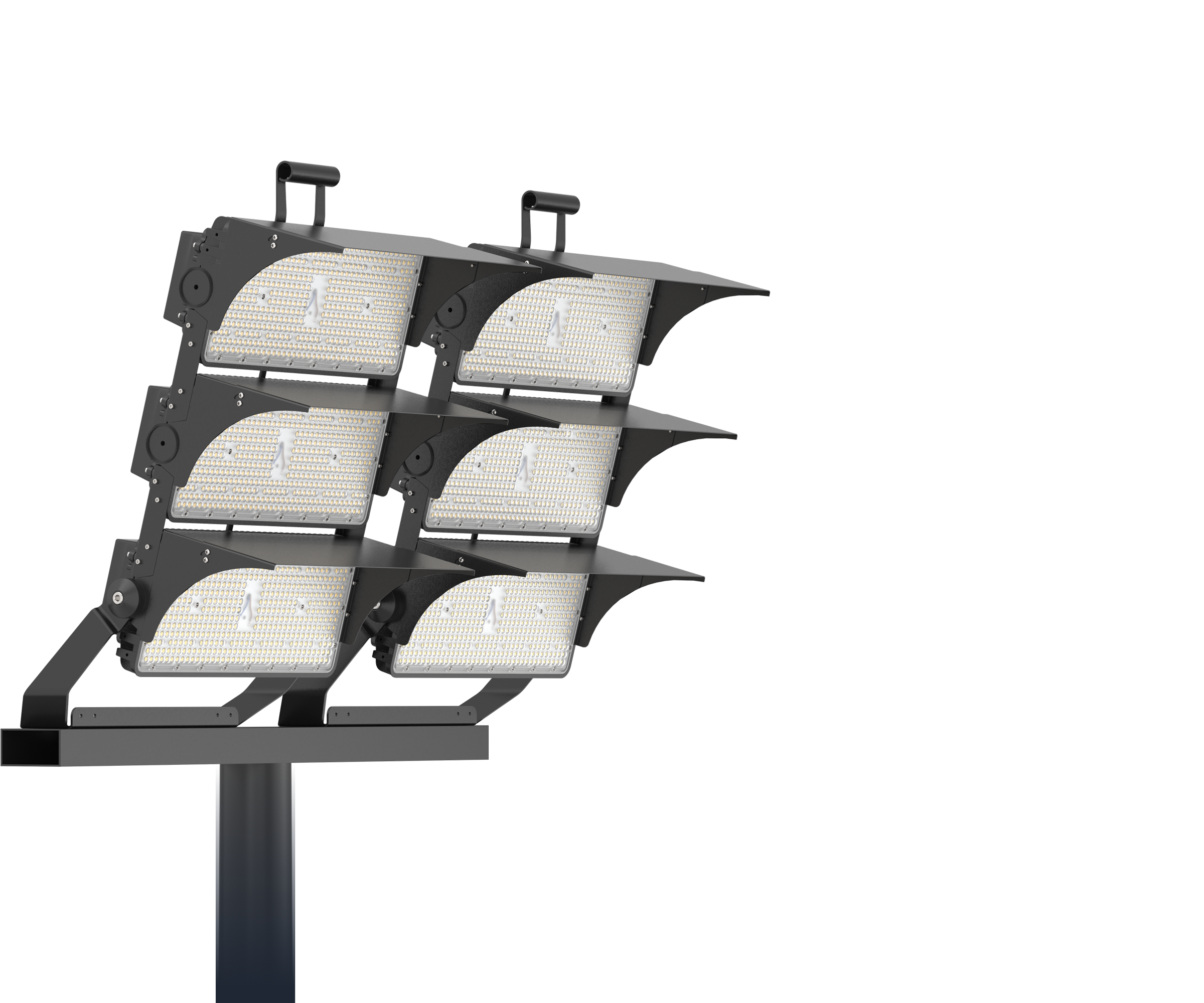

Flood light

GB-FL06 SERIES

Flood light

Innovative design, excellent heat dissipation and long service life

Product Description

• Easy to install and stock, improve the universality of modules, plug and light between modules.
• Three power distribution modes are provided, namely, split power supply box and integrated
power supply box, which can support power supply by distribution box.
• There are two requirements for the hood, one is that the extended hood can adjust the angle,
and the other is not adjustable.· Convenient for users to install and provide optional handles.
• Customized private mode lens accurately controls the angle of light shape, effectively reducing
polluted light.

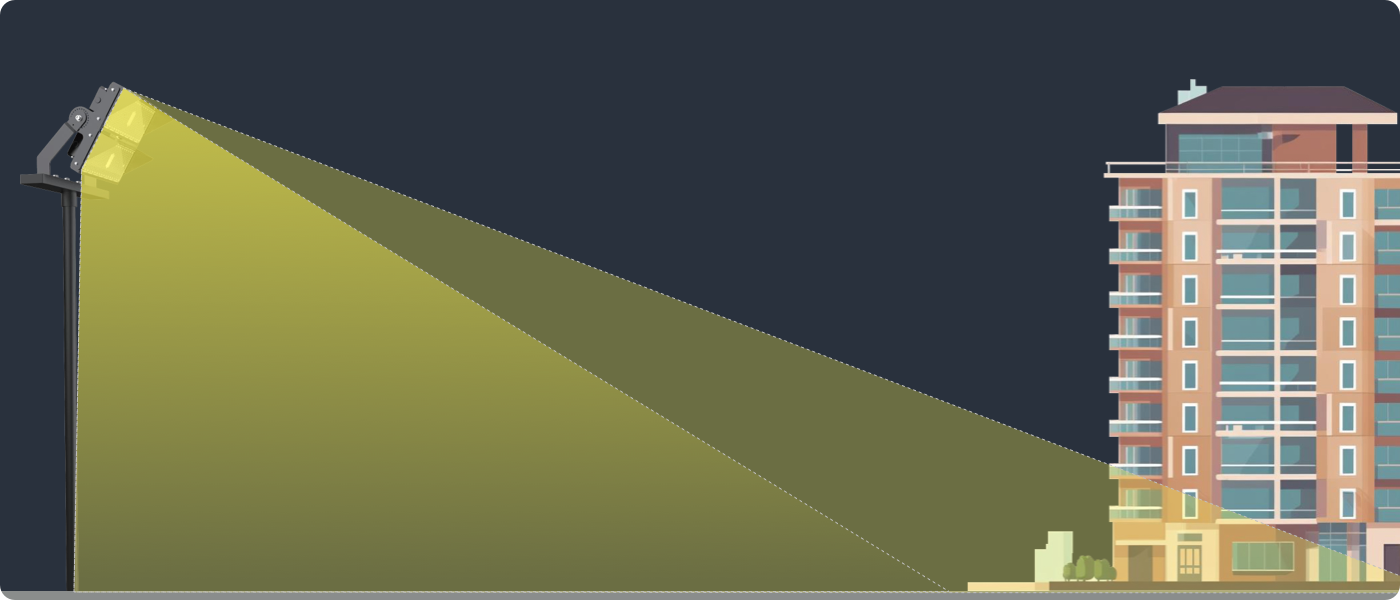

Light Pollution Control

Your neighbors with never like useless glare in or around their homes. The night sky will be beautiful with twinkle stars and no light spiling. Withspecial visor and optical lens design. GOLDENLUX FL05 is the one to make all this happen.

Technical information

Model	GB-FL06 500W GB-FL06 1000W GB-FL06 1500W

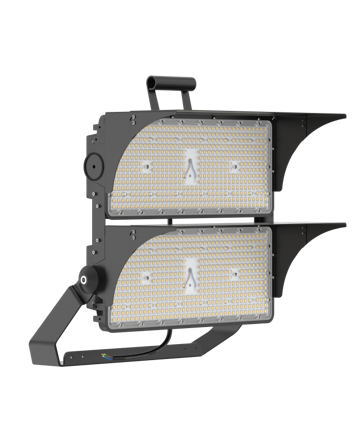

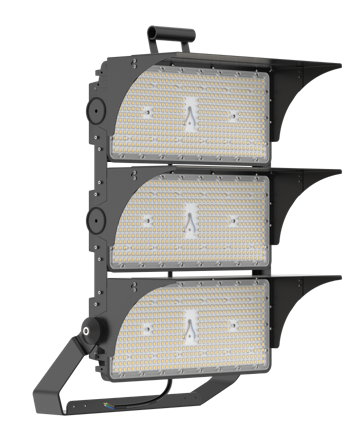

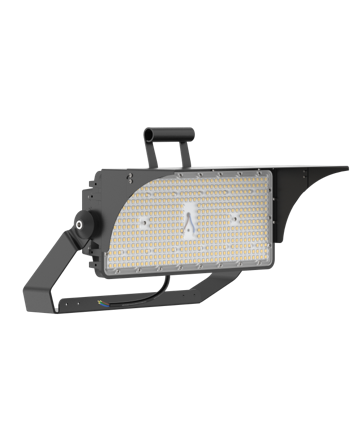

Product Picture
Number of Modules	132 pcs 198 pcs 264 pcs
LED Light Power	100W 150W 200W
LED Chip	Lumileds 3030 (standard), Bridgelux, Cree, and Osram are available options
Light Efficacy	130lm/w (standard)
CRI	≥ 70 or ≥ 80
Luminous Flux (3030)	12000lm 18000lm 31200lm
Color Temperature	2700K, 3000K, 4000K, 5000K, 5700K, 6500K
LED Light Life	Up to 100,000hrs LM70,Ta 25℃
Driver	Done (standard), Mean well, MOSO, Inventronics, Philips, SOSEN (option)
Driver Isolation	Class I or Class II
Frequency	50 / 60Hz
Power Factor	≥0.95 cos
Control Dimming	DALI / 1-10V / Timing / PWM
Body Parts Material	ADC12 (standard) / LM6 (option)
Optic	PC (standard) / PMMA (option)

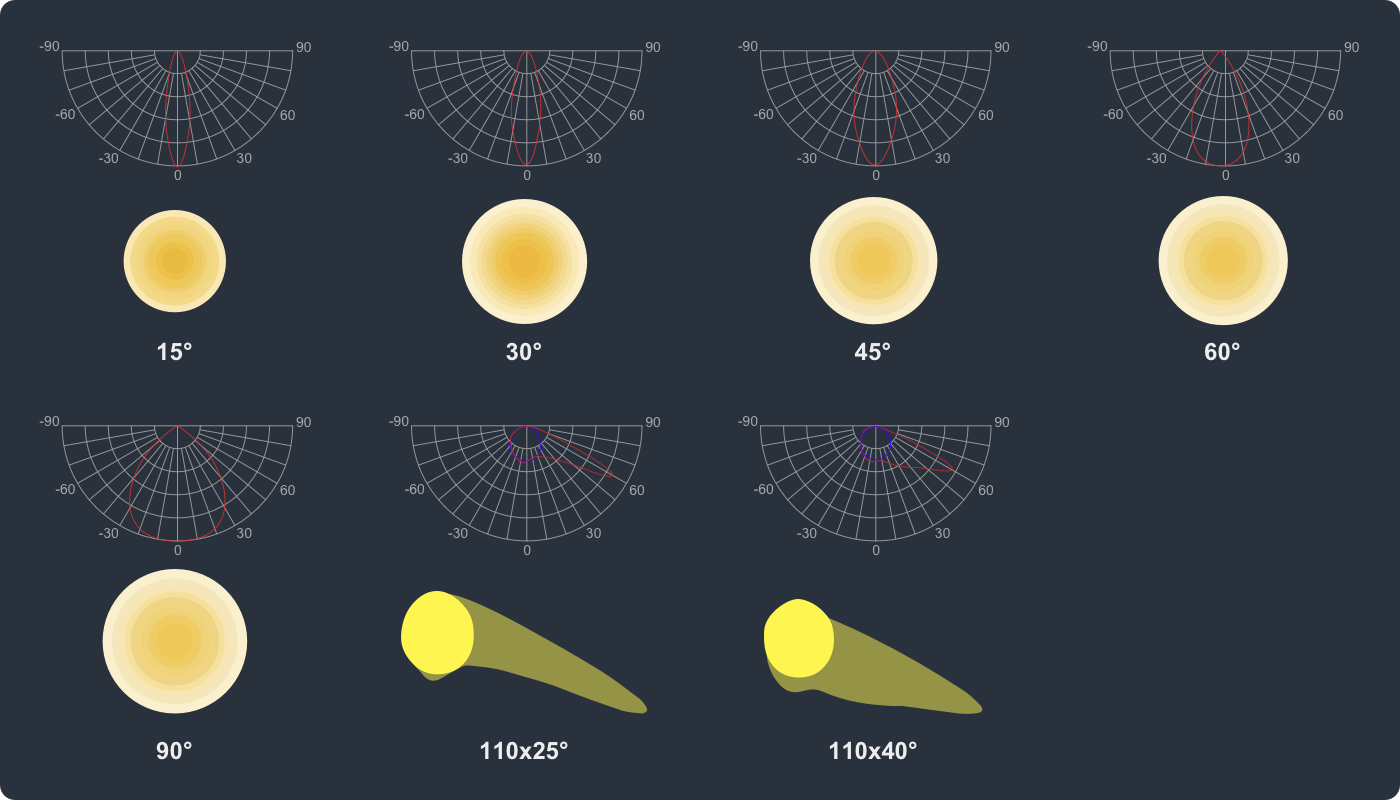

Beam Angel	80*140° / 30° / 60° / 90°
Optional Configuration	10KV / 20KV SPD
Operation Voltage	AC 85-265V
Operating Temperature	-35℃~50℃ / 10% ~ 95% (humidity)
Color Stability	3 or 5 MacAdam steps
Warranty	3 years (standard) / 5 years (option)

Packing Information

Model	Light Size	Package Size	Weight	20GP	40HQ
GB-FL06 500W	L710W535H260mm	1PCS/CTN	10.5kg	275pcs	715pcs
GB-FL06 1000W	L835W720H270mm	1PCS/CTN	20.5kg	150pcs	390pcs
GB-FL06 1500W	L1085W720H270mm	1PCS/CTN	29.0kg	115pcs	305pcs
