Flood light

GB-FL05 SERIES

Flood light

Cost-effiective Stadium Light

Product Description
• 5 sizes for different wattage from 250W to 1250W
• High-efficacy 3030/5050 LED chips from XUYU.
• High-stability driver from Done (standard) / MEANWELL, MOSO, INVENTRONICS, SOSEN (available)
• Super luminaire efficiency up to 170 lm/w
• Professional symmetrical and asymmetrical light distribution *
• Modular design offers the advantage of product flexibility for high-power applications *
• Optional reflector to reduce light pollution and optimize glare control *
• Cost-effective and efficient to maximise energy and maintenance savings *
• Suitable for squares, stadium, and parking lots
• 3-5 year warranty with excellent stability and longevity Optional features
• 0-10V/ DALI2.0/ Instant lighting control

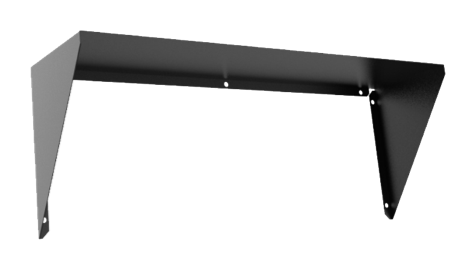

• Reflector

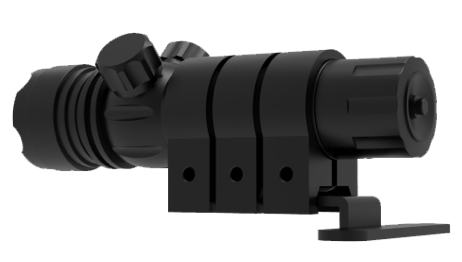

• Laser aiming device

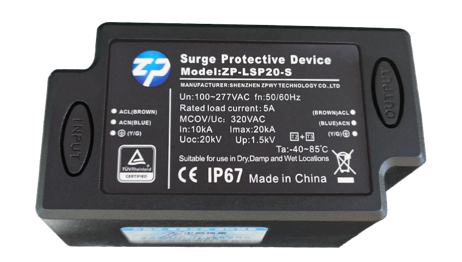

• SPD: 20KV Line-Line, 20KV Line-Earth

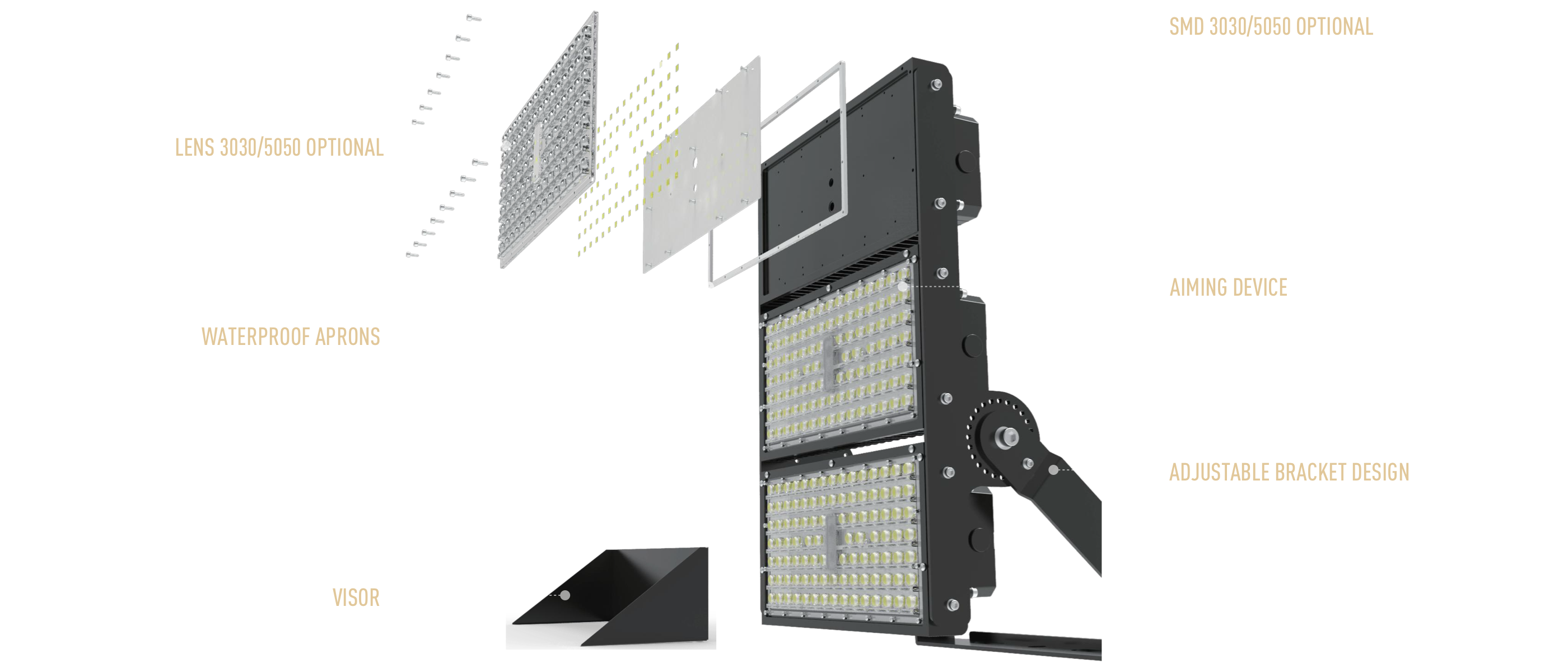

Exploded view, perspective view

Light Pollution Control

Your neighbors with never like useless glare in or around their homes. The night sky will be beautiful with twinkle stars and no light spiling. Withspecial visor and optical lens design. GOLDENLUX FL05 is the one to make all this happen.

Technical information

Model
GB-FL0501
GB-FL0502
GB-FL0503
GB-FL0504
GB-FL0505

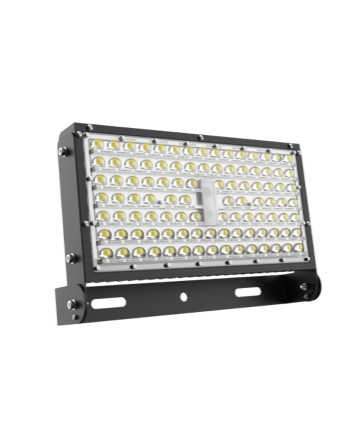

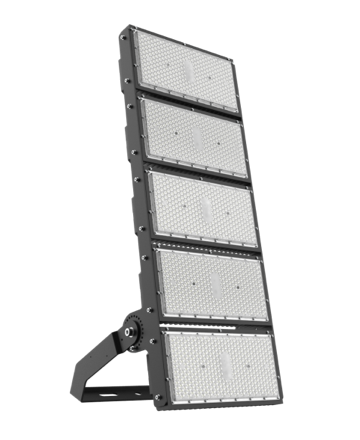

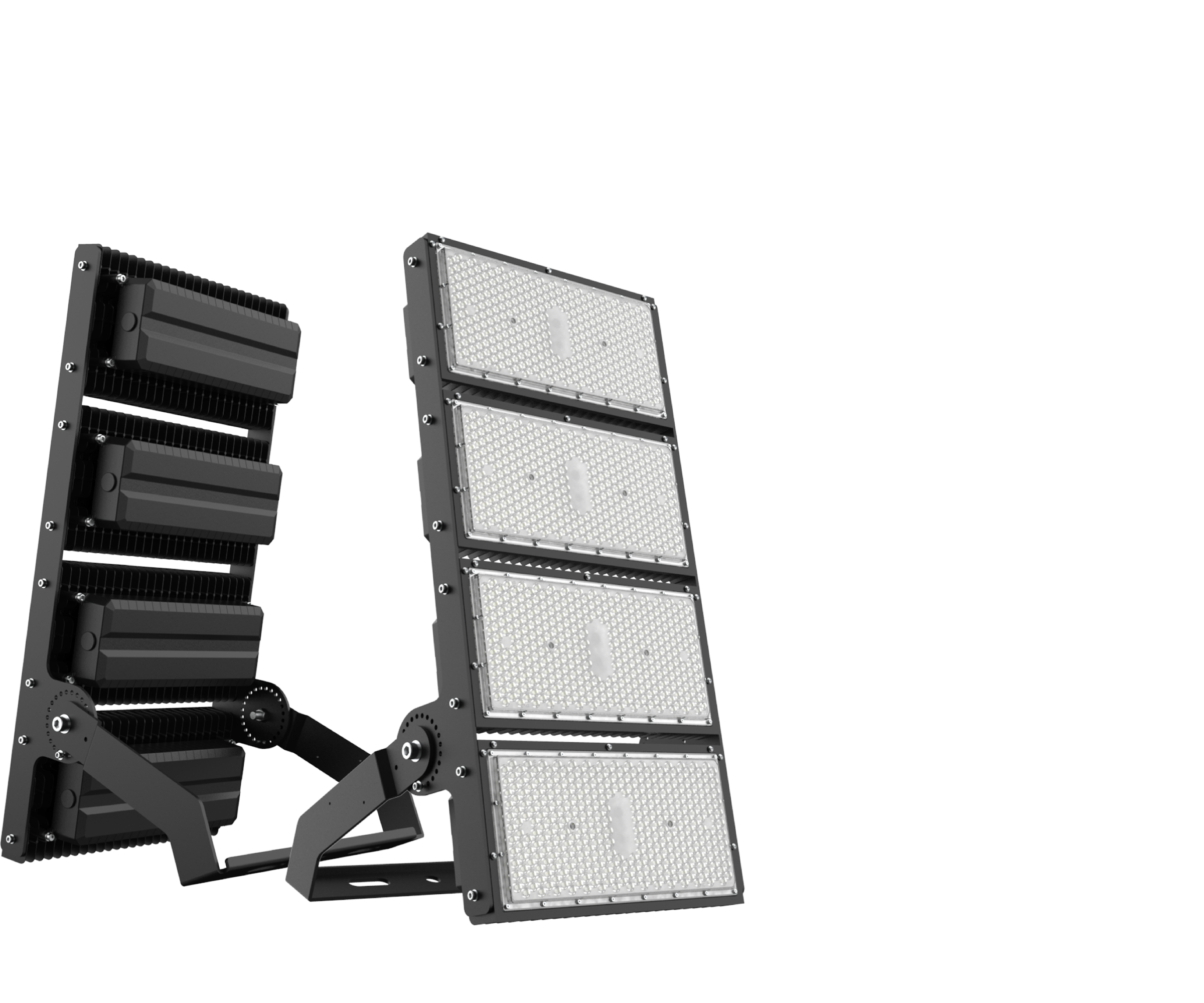

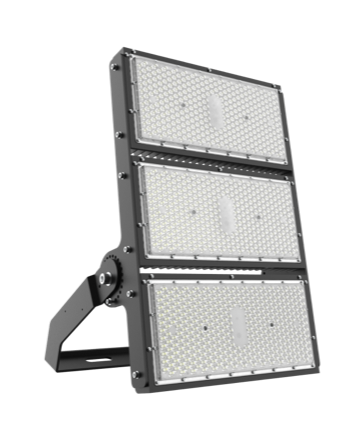

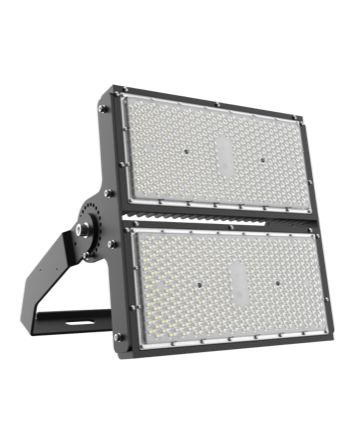

Product Picture
Number of Modules
1
2
3

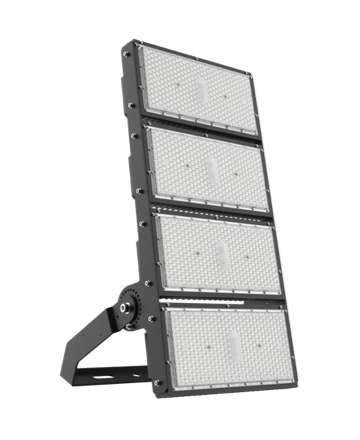

4
5
LED Light Power
250W
500W
750W
1000W
1250W
LED ChipSMD3030 / 5050
Light Efficacy150lm/w (standard); 170lm/w (option)
CRI≥ 70 or ≥ 80
Luminous Flux (3030)
37500lm
75000lm
112500lm
150000lm
187500lm
Color Temperature3000K/ 4000K/ 5000K/ 5700K/ 6500K
LED Light LifeUp to 100,000hrs LM70,Ta 25℃
DriverSosen (standard), Mean well, MOSO, Inventronics, Philips (option)
Driver IsolationClass I EU
Frequency50 / 60Hz
Power Factor≥0.95 cos
Control Dimming0-10V/ DALI/ Instant lighting control
Body Parts MaterialADC12 (standard) / LM6 (option)
OpticPC (standard) / PMMA (option)
Beam Angel15° / 30° / 45° / 60° / 90°         110X25° / 110X40°
Accessories Optional
Reflector
Laser aiming device
20KV SPD
Optional Configuration20KV Line-Line, 20KV Line-Earth
Operation VoltageAC 120-277V
Operating Temperature-30℃~50℃ / 10% ~ 95% (humidity)
Color Stability3 or 5 MacAdam steps
Color Stability5 years

Packing Information

ModelLight SizePackage SizeWeight
GB-FL0501405*276*117mmL500*W300*H185mm5.4kg
GB-FL0502464*512*159mmL620*W545*H225mm15.2kg
GB-FL0503464*719*159mmL825*W545*H225mm20.3kg
GB-FL0504464*926*159mmL1035*W545*H225mm24.5kg
GB-FL0505464*1133*159mmL1240*W545*H225mm30.9kg
