Flood light

GB-FL04 SERIES

Flood light

Perfect Thermal Management For Long-term Performance

Product Description

• 5 sizes for different wattage from 250W to 1250W
• High-efficacy 3030/5050 LED chips from XUYU.
• High-stability driver from Done (standard) / MEANWELL, MOSO, INVENTRONICS, SOSEN (available)
• Super luminaire efficiency up to 170 lm/w
• Professional symmetrical and asymmetrical light distribution *
• Modular design offers the advantage of product flexibility for high-power applications *
• Optional reflector to reduce light pollution and optimize glare control *
• Cost-effective and efficient to maximise energy and maintenance savings *
• Suitable for squares, stadium, and parking lots
• 3-5 year warranty with excellent stability and longevity Optional features
• 0-10V/ DALI2.0/ Instant lighting control
• Reflector
• Laser aiming device
• SPD: 20KV Line-Line, 20KV Line-Earth

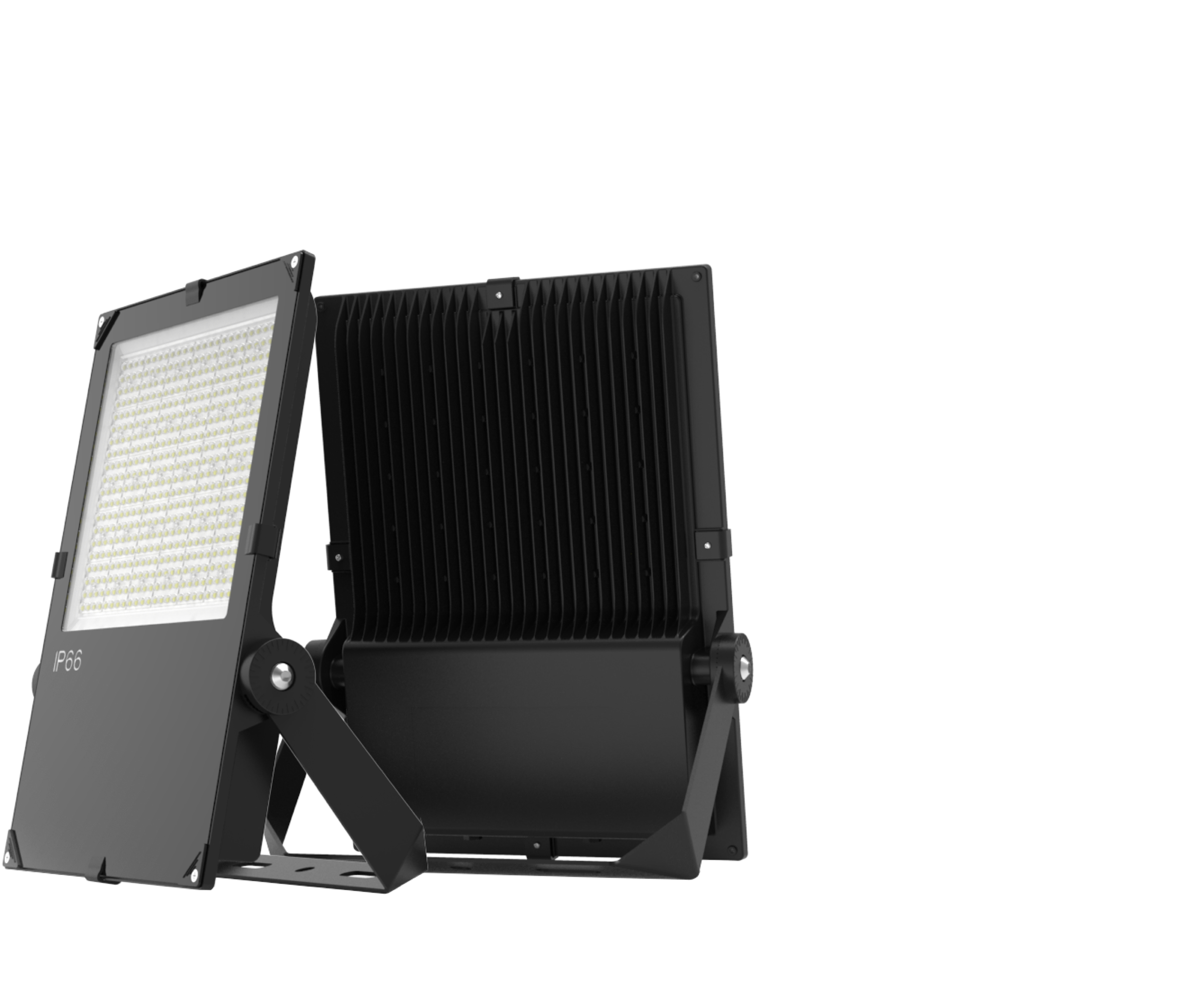

Exploded view, perspective view

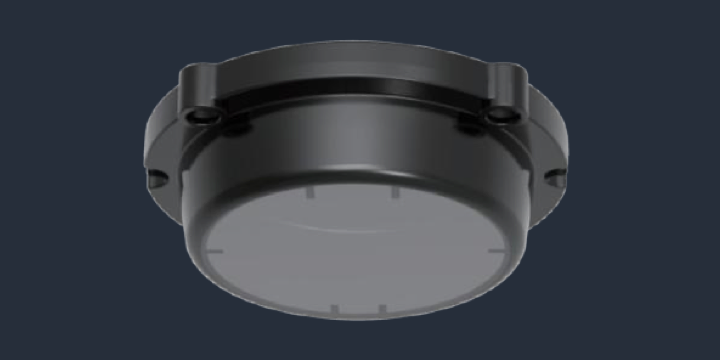

Can Be Equipped With Sensors

Get more energy saving with a smart microwave sensor. The sensor switches on the flood light when the motion is detected. It will also dim the lamp to low brightness or turn it off when detection area is vacated for a certain time.

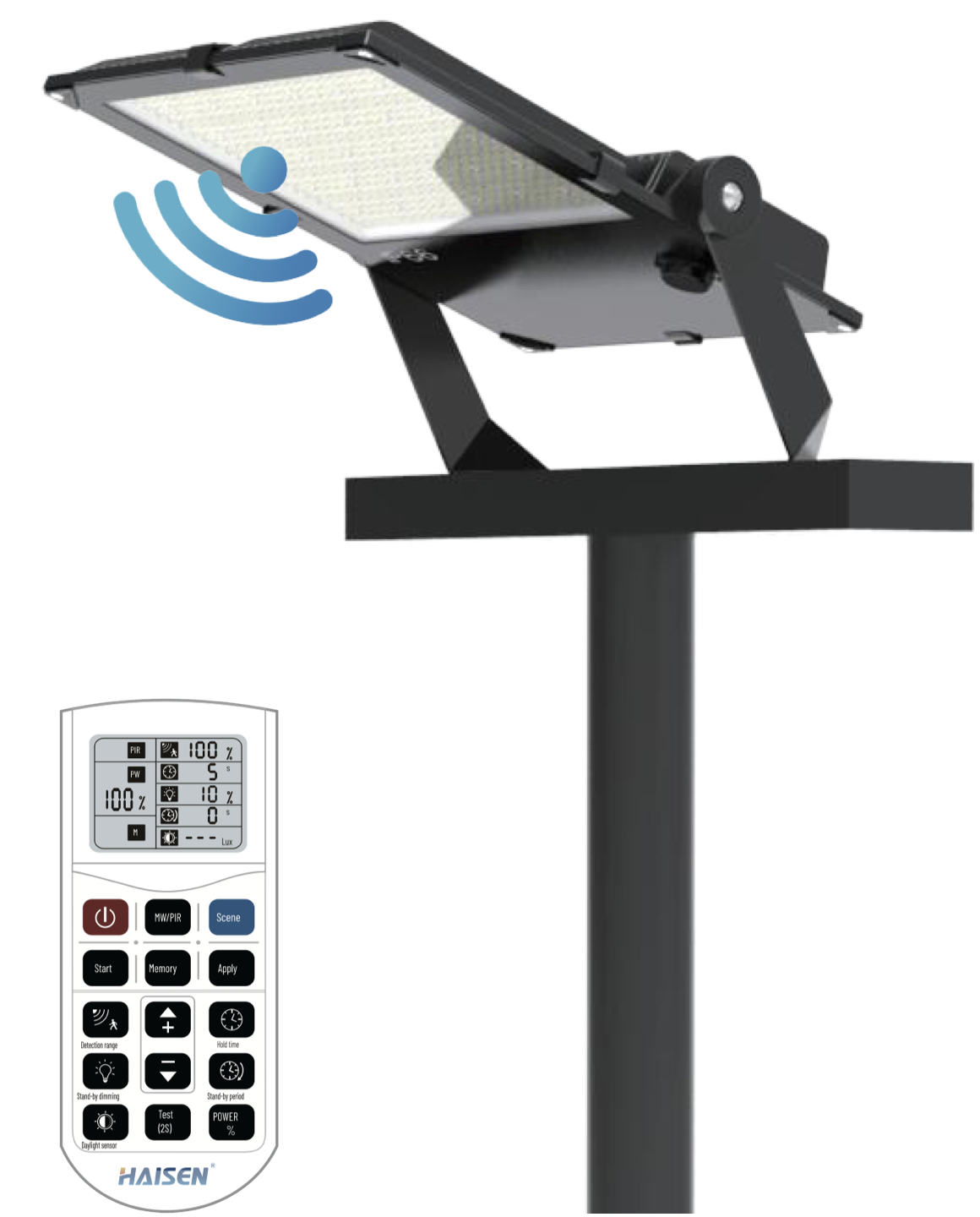

Remote-Controlled

Step into smart lighting with our Intelligent UFO High Bay Light. Whether microwave or infrared sensor, your choice. Adjust brightness, color, and timers seamlessly through the remote control. Illuminate instantly with sensor control. Manage groups of lights effortlessly.

Multi-Angle Display

15°/ 30°/ 45°/ 60°/ 90°/ 120° lens are available.

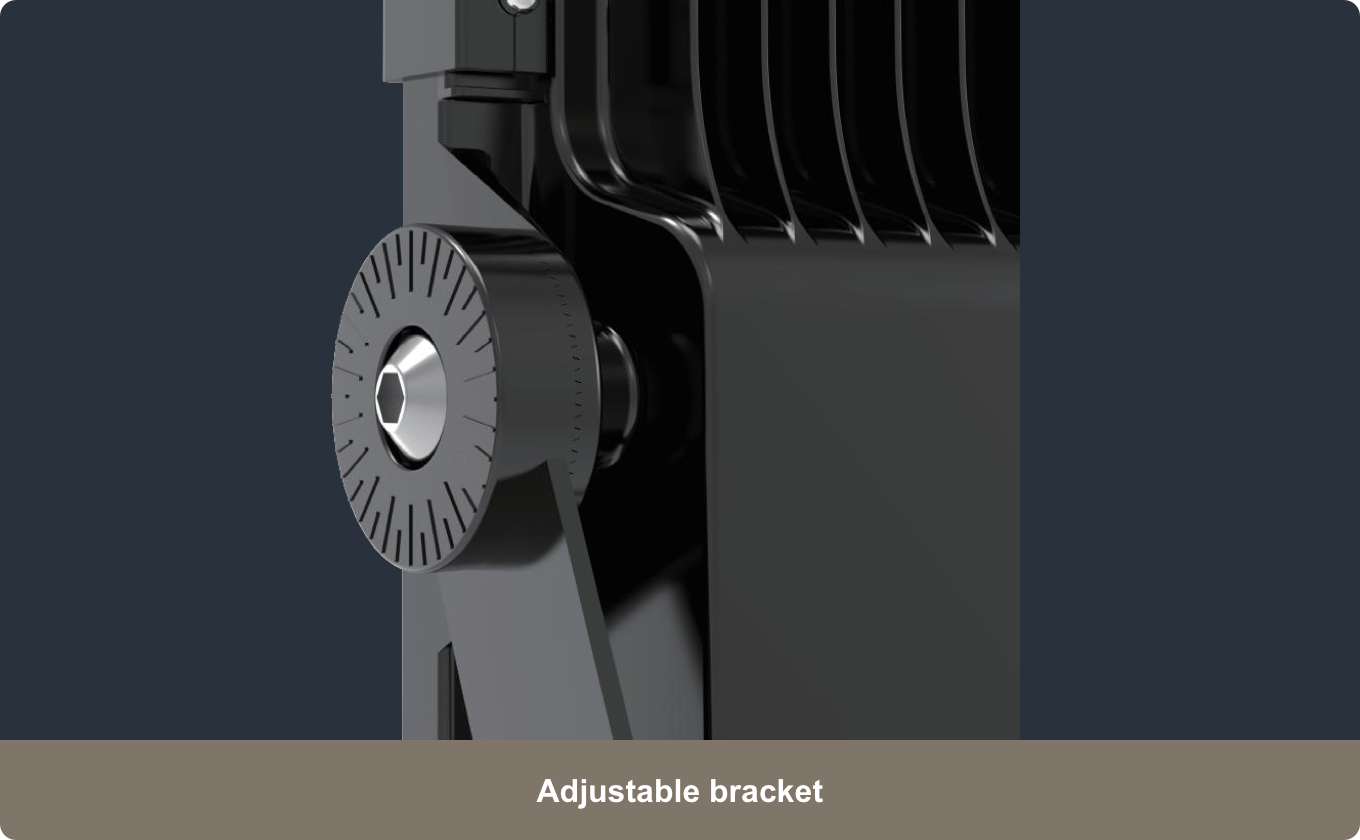

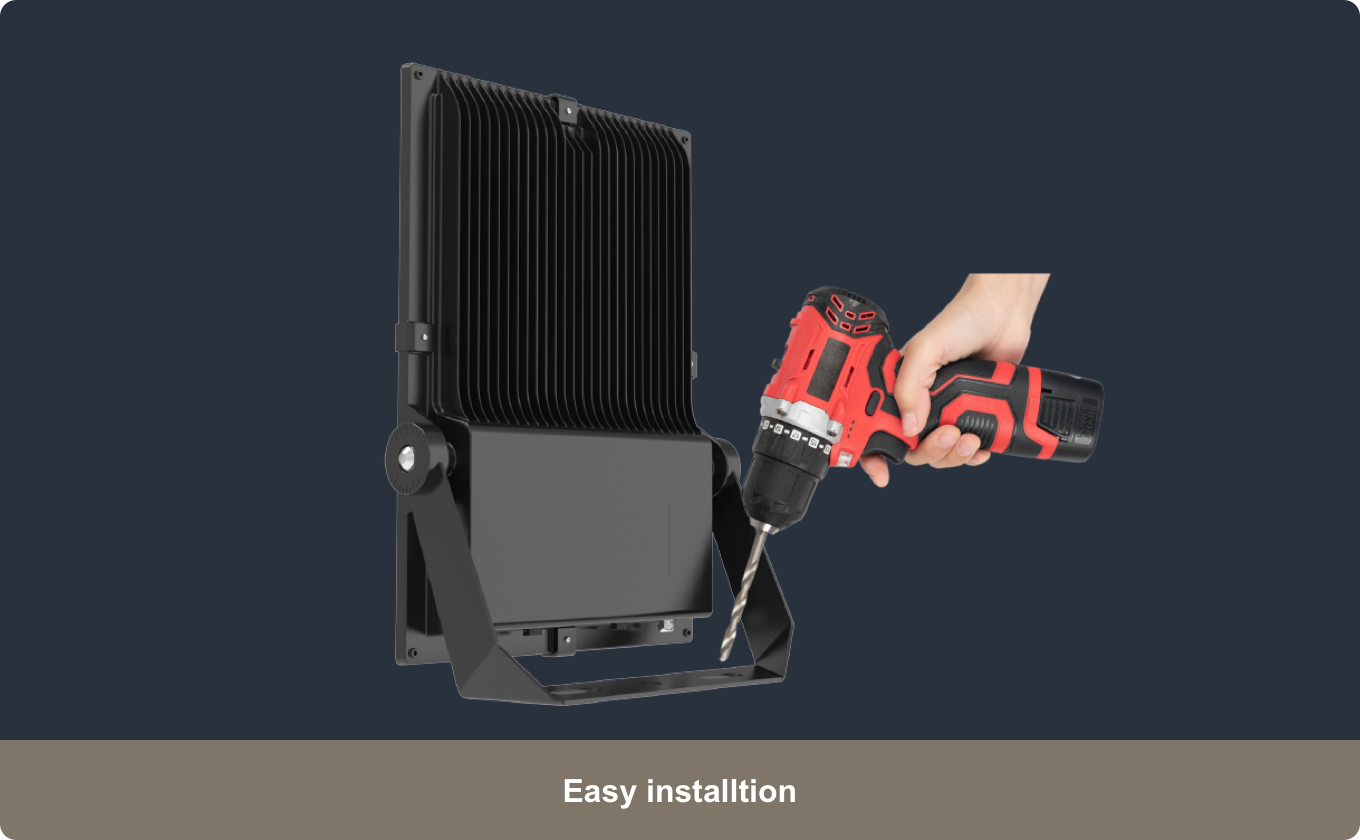

User-friendly Bracket Design

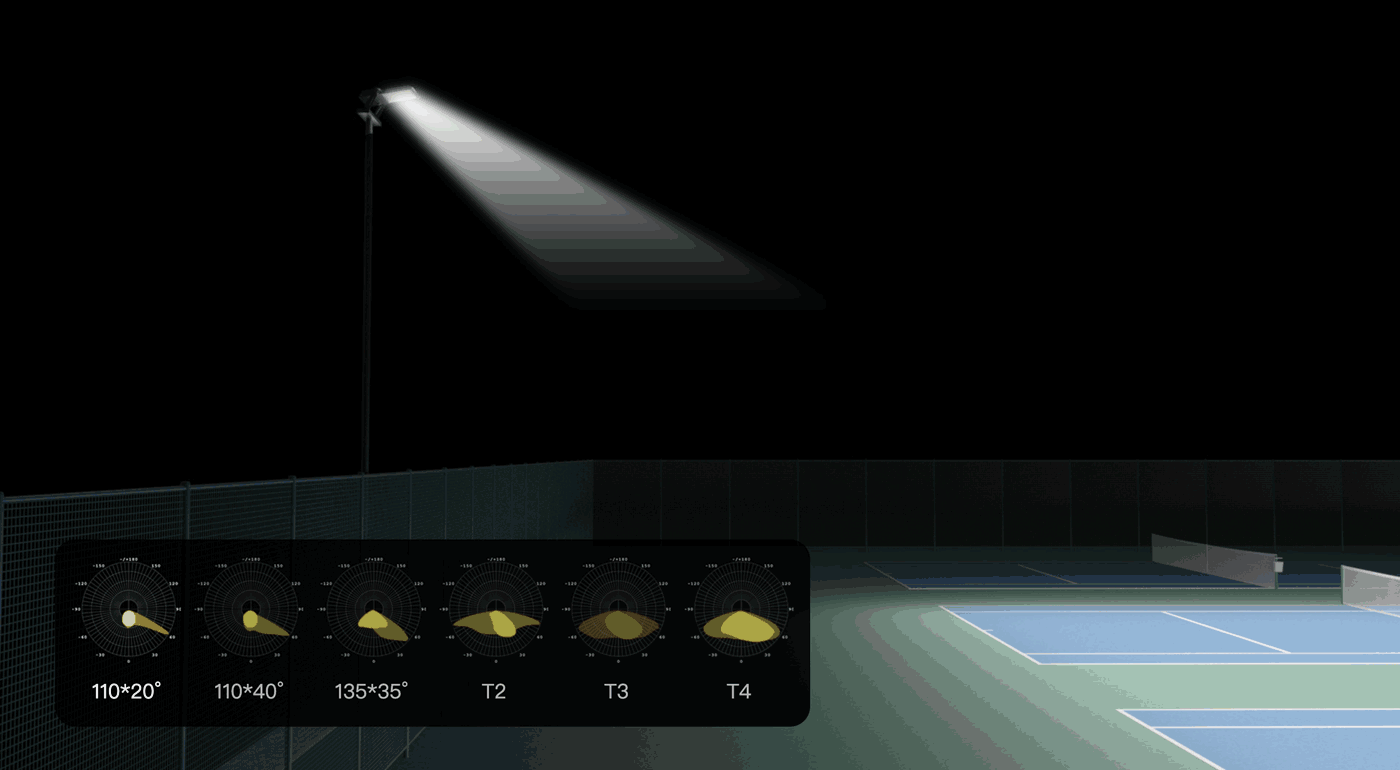

Asymmetrical Light Distribution helps to focus the Light on the required area. Choose our professional asymmetrical optical lens with excellent back Light control.

Multi-Angle Display

Bending Brackets can be quickly installed using tools, saving installation time and costs.

Technical information

Model	GB-FL04-100W GB-FL04-150W GB-FL04-200W GB-FL04-300W GB-FL04-400W GB-FL04-500W GB-FL04-600W

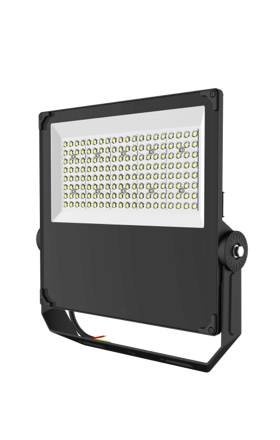

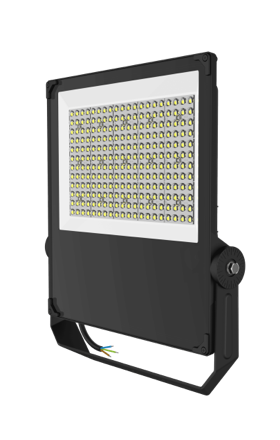

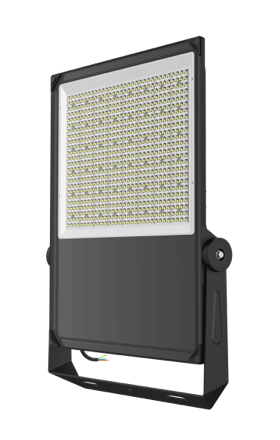

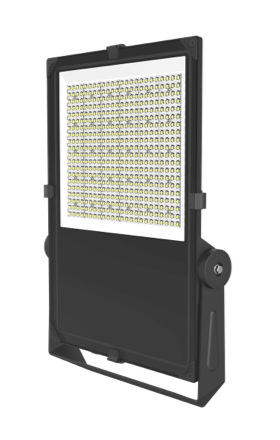

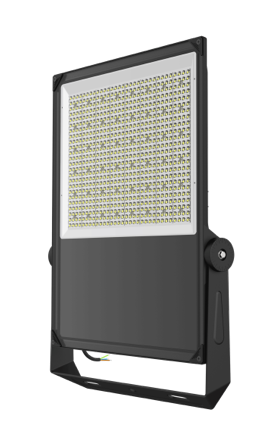

Product Picture
Number of Modules	160 240W 320W 480W 480W 768 768
LED Light Power	100W 150W 200W 300W 400W 500W 600W
LED Chip	SMD3030 / 5050
Light Efficacy	150lm/w (standard)
CRI	Ra70
Luminous Flux (3030)	15000lm 22500lm 30000lm 45000lm 60000lm 70000lm 90000lm
Color Temperature	3000K/ 4000K/ 5000K/ 5700K/ 6500K
LED Light Life	Up to 100,000hrs LM70,Ta 25℃
Driver	Sosen (standard), Mean well, MOSO, Inventronics, Philips (option)
Driver Isolation	Class I EU
Frequency	50 / 60Hz
Power Factor	0.9
Control Dimming	0-10V/ DALI/ Instant lighting control
Body Parts Material	ADC12 (standard) / LM6 (option)
Optic	PC (standard) / PMMA (option)
Beam Angel	15° / 30° / 45° / 60° / 90° / 120° TYPE2 / TYPE3 / TYPE4 110X20° / 110X40° / 135X60°
Accessories Optional	Zhaga+PIR Sensor Zhaga+Montion Sensor Zhaga+Bluetooth Sensor (TUYA)
Optional Configuration	6KV-Line-Line, 6KV-Line-Earth
Operation Voltage	AC 120-277V, 50 / 60Hz
Operating Temperature	-30℃~50℃ / 10% ~ 95% (humidity)
Color Stability	3 or 5 MacAdam steps
Color Stability	5 years

Packing Information

Model	Light Size	Package Size	Weight	20GP	40HQ
GB-FL04-100W	36132855mm	L400W375H110mm / 1pcs	4.0kg	2097pcs	4742pcs
GB-FL04-150W	36140657mm	L455W400H110mm / 1pcs	5.1kg	1704pcs	3902pcs
GB-FL04-200W	36346858mm	L525W400H110mm / 1pcs	6.0kg	1485pcs	3408pcs
GB-FL04-300W	42354271mm	L615W465H135mm / 1pcs	11.2kg	784pcs	1835pcs
GB-FL04-400W	42354271mm	L615W465H135mm / 1pcs	11.2kg	784pcs	1835pcs
GB-FL04-500W	52165683mm	L735W575H145mm / 1pcs	17.4kg	453pcs	1059pcs
GB-FL04-600W	52165683mm	L735W575H145mm / 1pcs	17.4kg	453pcs	1059pcs
