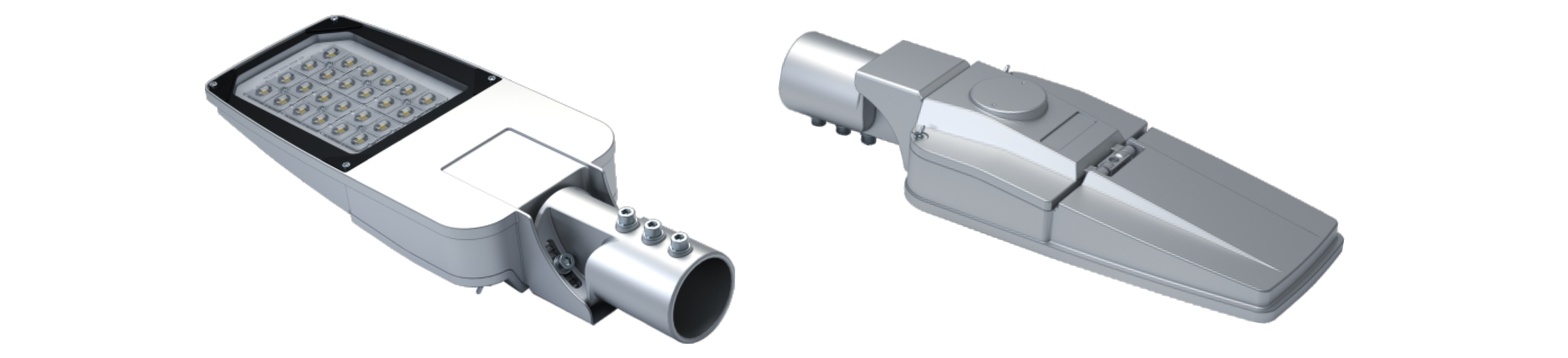

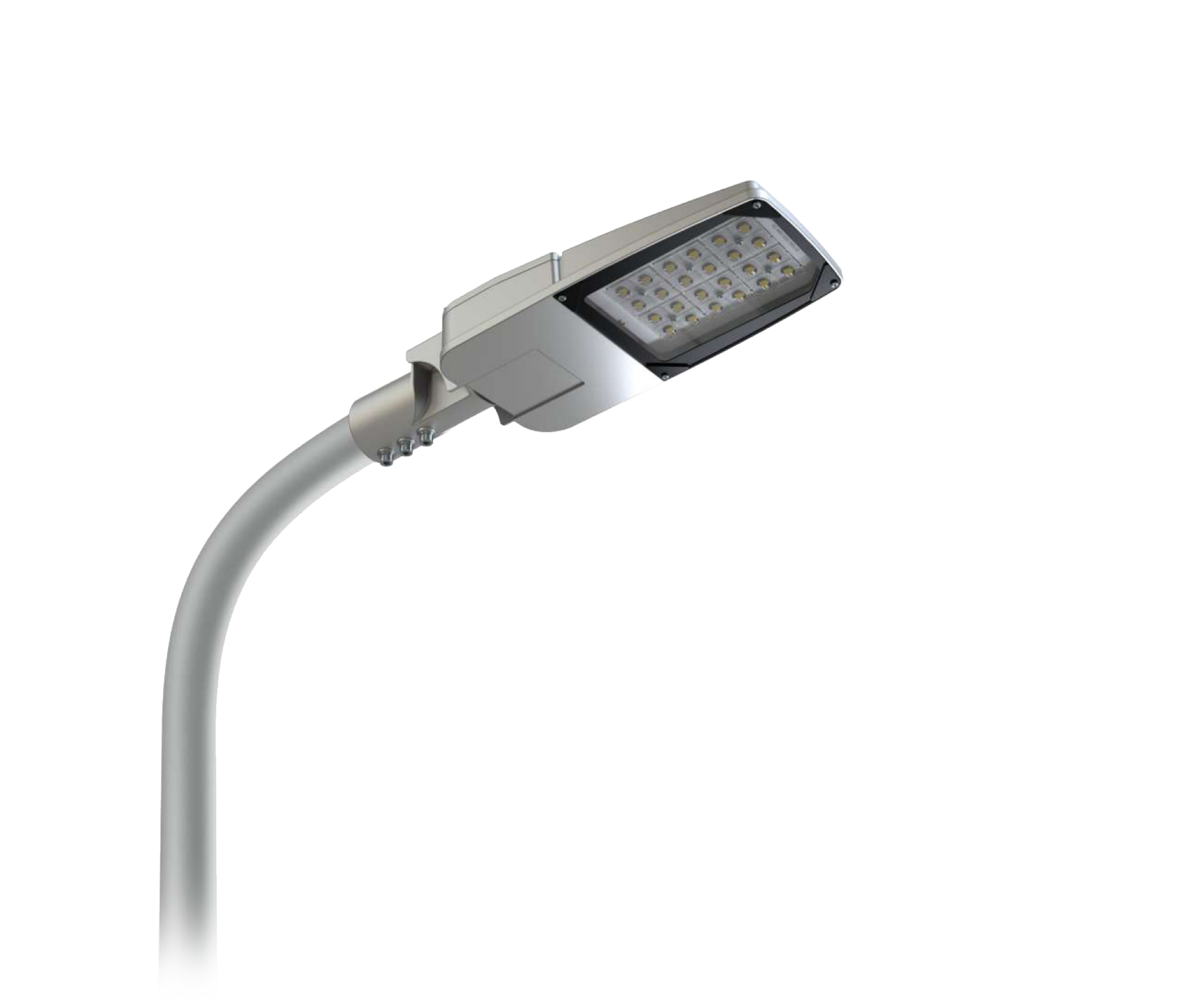

street light

GB-71 series

AC street light

Using high quality LED chips, the light efficiency is more than 150lm/W

Product Description
• 4 sizes are available which support 30-320 watts
• ADC12 die casting aluminum body
• Super white tempered glass, adopt modular light distribution lens and all types beam angles
• UV-resistance and anti-corrsion coating, it can be used in coastal areas
• Using high quality LED chips, the light efficiency is more than 150lm/W
• Tool-free replaceable
• Mounting pole is Ф60mm or Ф76mm, the angle can be adjusted
• Protective grades are IP66/IK10

Product parameters

Model
GB-71-40W
GB-71-60W
GB-71-100W
GB-71-120W
GB-71-150W
GB-71-180W
GB-71-200W
GB-71-240W
GB-71-320W
Power
40W
60W
100W
120W
150W
180W
200W
240W
320W
SPD10KV
LUMINOUS FLUX130-140lm/w
LEDLumileds LUXEON 3030
LED  Quantity
64PCS
96PCS
144PCS
160PCS
180PCS
240PCS
240PCS
320PCS
448PCS
CCT3000K-5700K
CRI70
POWER SUPPLYInventronics
Input VoltageAC85-305V
Protective GradeIP66/1K10

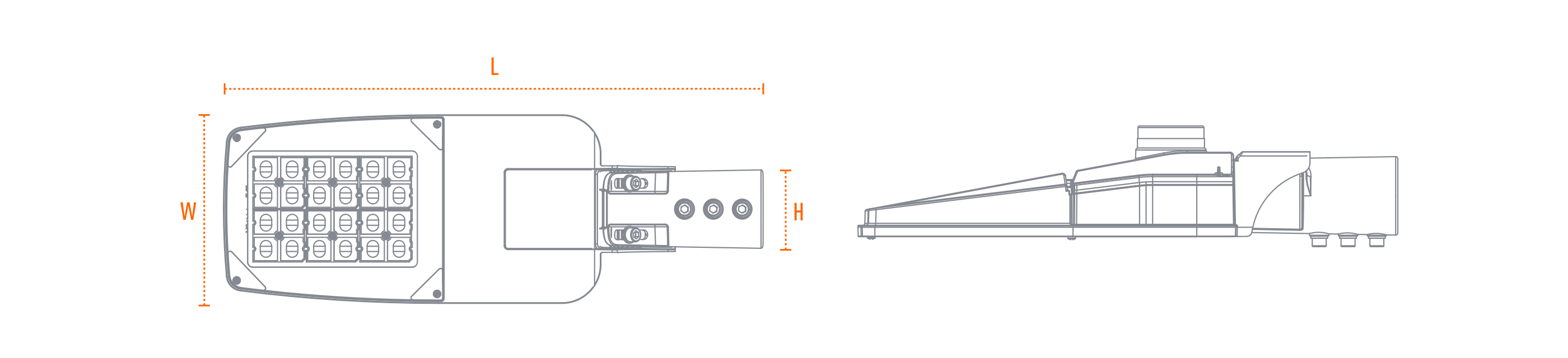

Product Size

Model
length
width
height
GB-71A-40W
515mm
180mm
115mm
GB-71A-60W
515mm
180mm
115mm
GB-71A-100W
630mm
205mm
115mm
GB-71A-120W
630mm
205mm
115mm
GB-71A-150W
640mm
265mm
115mm
GB-71A-180W
640mm
265mm
115mm
GB-71A-200W
810mm
300mm
115mm
GB-71A-240W
810mm
300mm
115mm
GB-71A-320W
810mm
300mm
115mm

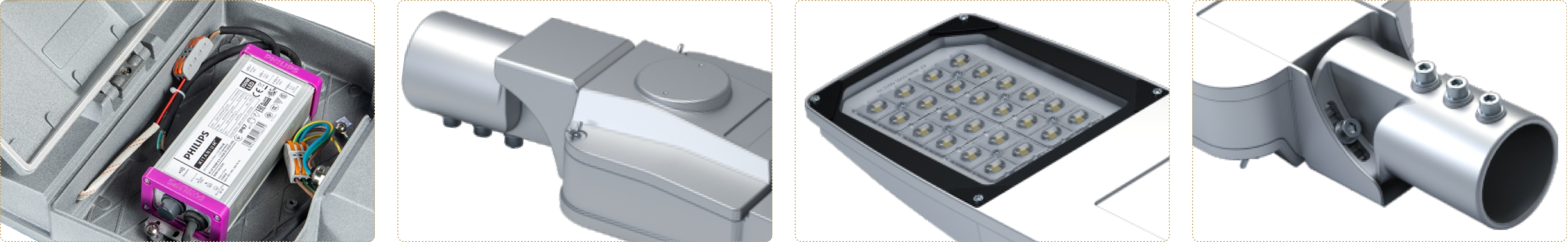

Product Details

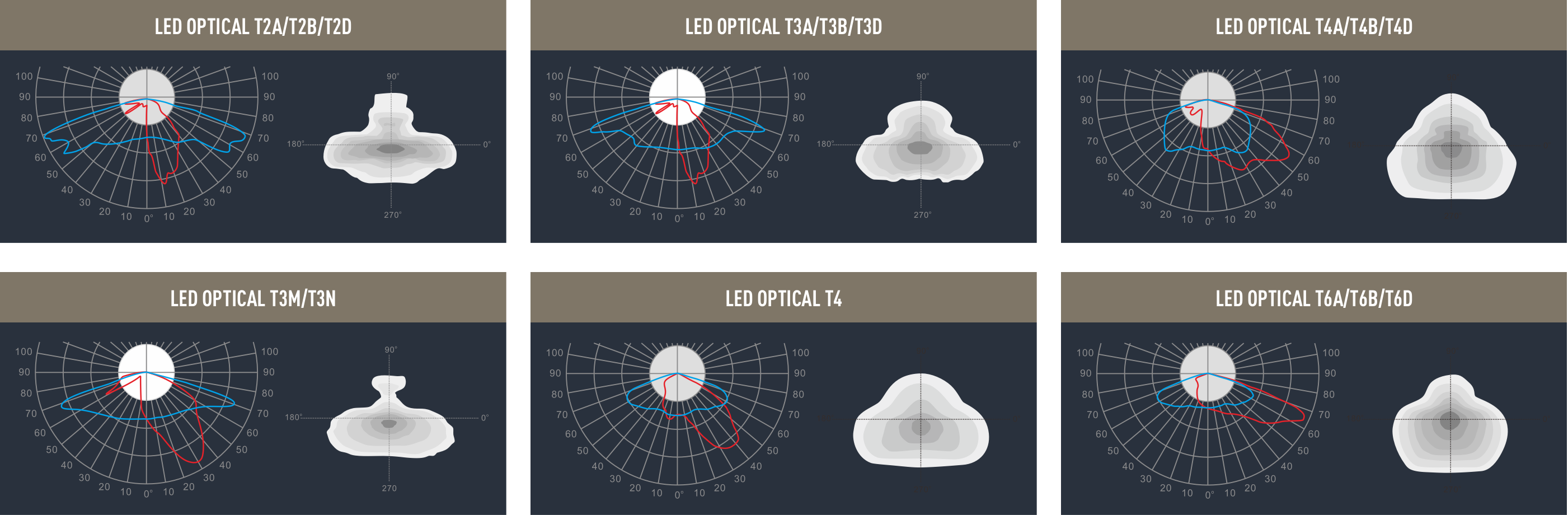

Optical Application
