street light

GB-61 series

Name: GB-G21 SERIES Garden Light
Brand: Golden Bright

AC street light

Used for outdoor lighting in any location such as roads, squares, scenic spots, etc

Product Description

• Used for outdoor lighting in any location such as roads, squares, scenic spots, etc.
• Working temperature: -30° C/+50° C.
• Easy to install and maintain.
• Using high-quality chips.
• Less light decay, durable and long-lasting.
• The sleeve adopts an adjustable angle design to meet the excellent heat dissipation requirements of different lighting angles.
• Uniform light distribution with different lens arrangements in different regions and installation areas.
• The lens adopts a bat wing light distribution design to improve the lighting effect.
• CCT: 2200K-6500K.
• Color rendering index: >70.

Product parameters

Model	GB-6101 GB-6102 GB-6103 GB-6104 GB-6105

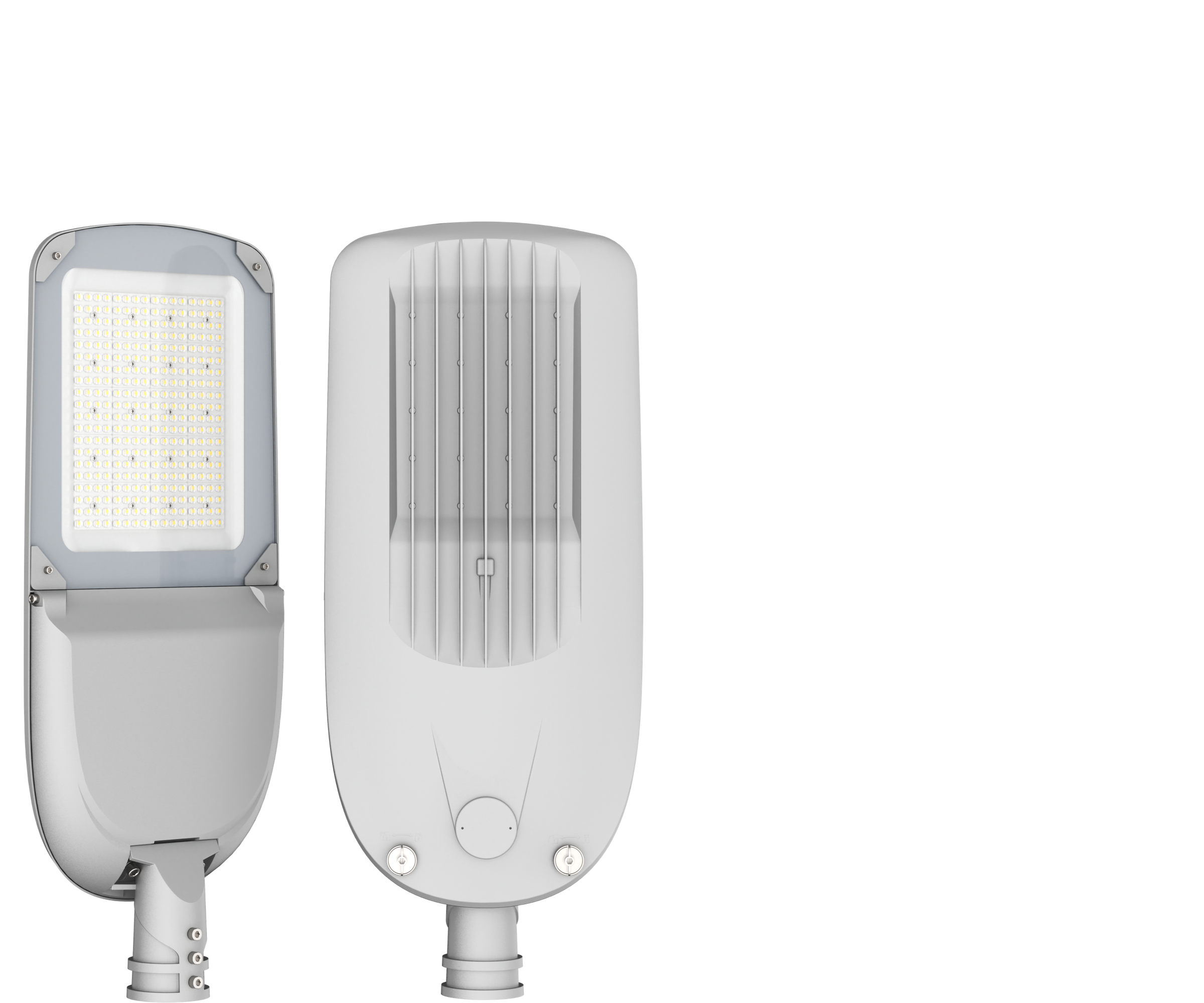

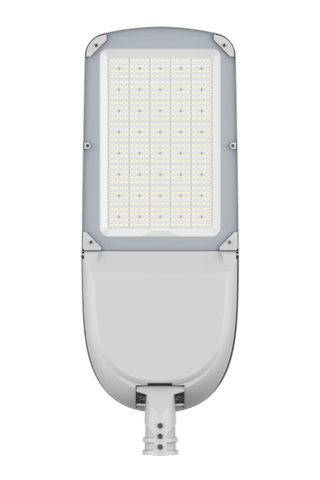

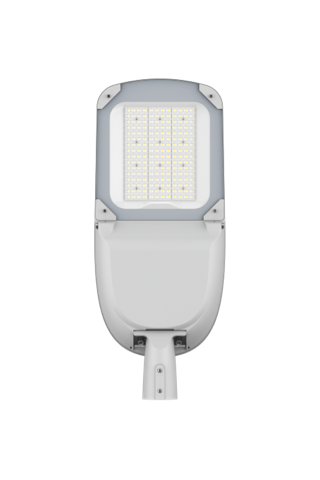

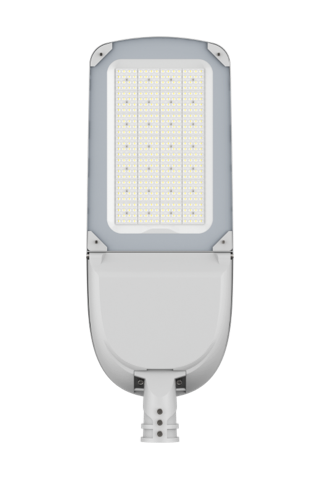

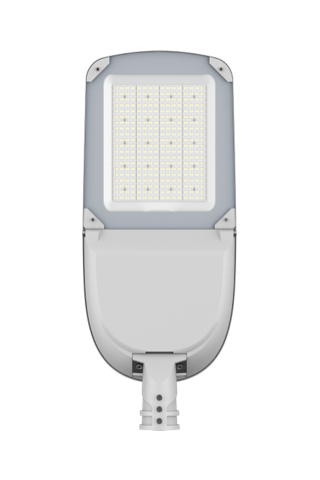

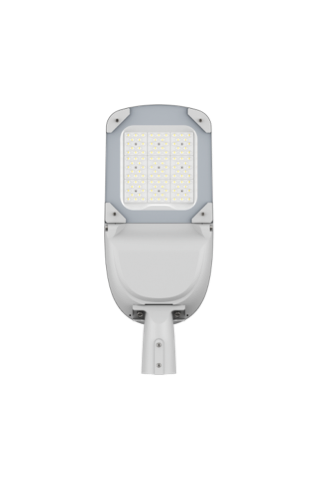

Product Picture
LED Light Power	60W 100W / 1 50W 200W 240W 300W
LED Chip	Lumileds 3030(standard), Bridgelux, Cree, and Osram are available options
Light Efficacy	140lm/w, 150~160lm/w(option)
CRI	≥ 70 or ≥ 80
Luminous Flux(3030)	8400lm 14000lm / 21000lm 28000lm 33600lm 42000lm
Color Temperature	2700K, 3000K, 4000K, 5000K, 5700K, 6500K
Driver	Sosen(standard), Mean well, MOSO, Inventronics, Philips(option)
Frequency	50 / 60Hz
Power Factor	≥0.95 cos
Control Dimming	DALI / 1-10V / Timing / PWM
Body Parts Material	ADC12 (standard) / LM6(option)
Optic	PC (standard) / PMMA(option)
Optional Configuration	10KV / 20KV SPD
Operation Voltage	AC 90～305V
Operating Temperature	-35°C~50°C / 10% ~ 95% (humidity)
Warranty	3 years (standard) / 5 years (option)

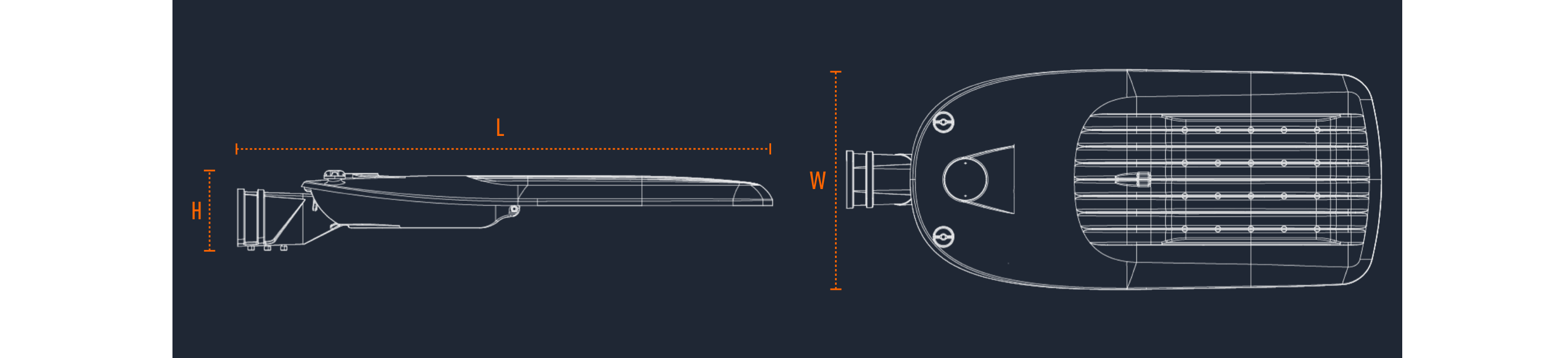

Product Size

Model	length width height
GB-6101	580mm 238mm 108mm
GB-6102	690mm 280mm 108mm
GB-6103	816mm 336mm 112mm
GB-6104	916mm 336mm 112mm
GB-6105	1016mm 390mm 118mm

Packing Information

Model	Light Size Package Size Weight
GB-6101	580238108mm 630278148mm KG
GB-6102	690280108mm 740320148mm KG
GB-6103	816336112mm 866376152mm KG
GB-6104	916336112mm 966376152mm KG
GB-6105	1016390118mm 1066430158mm KG

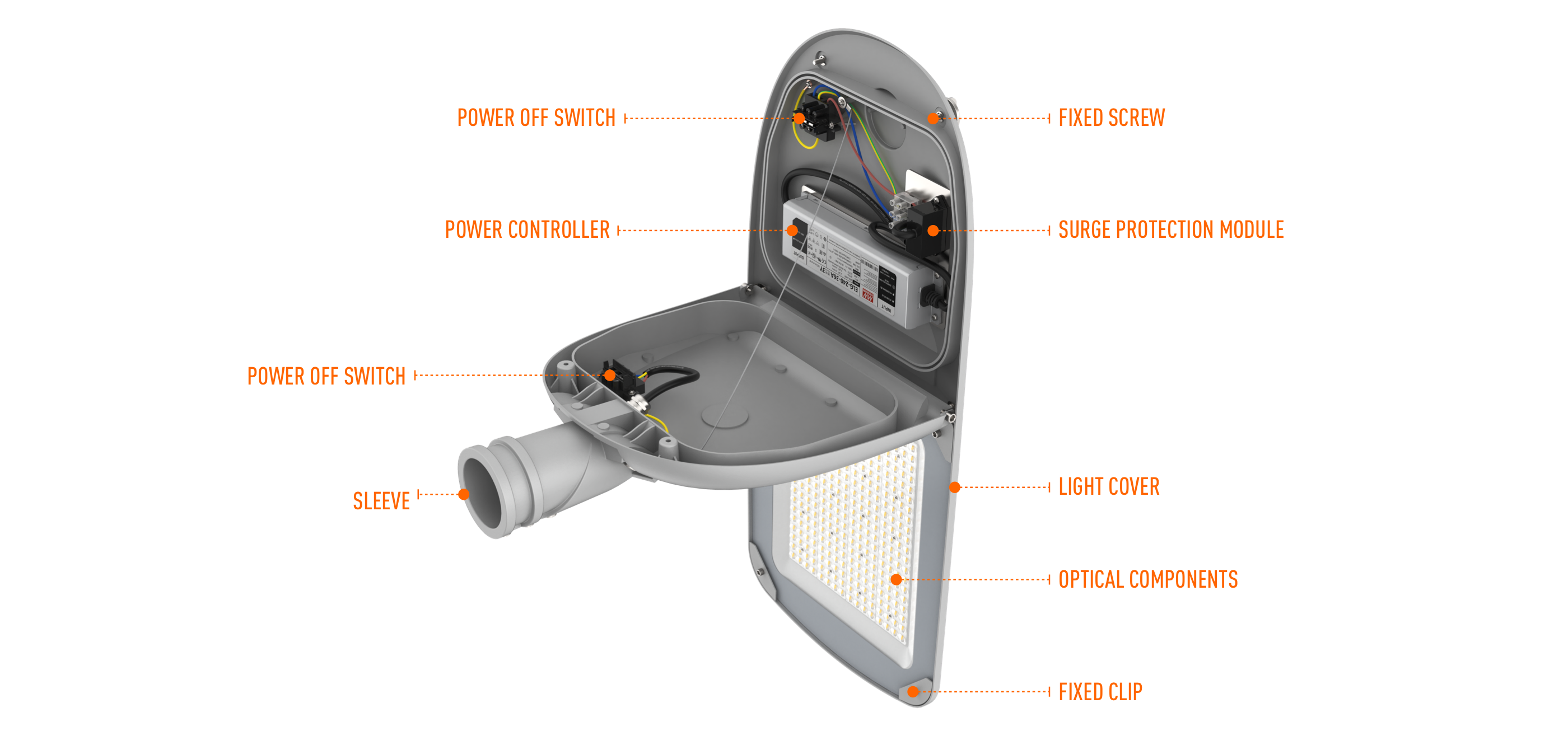

Exploded view, perspective view

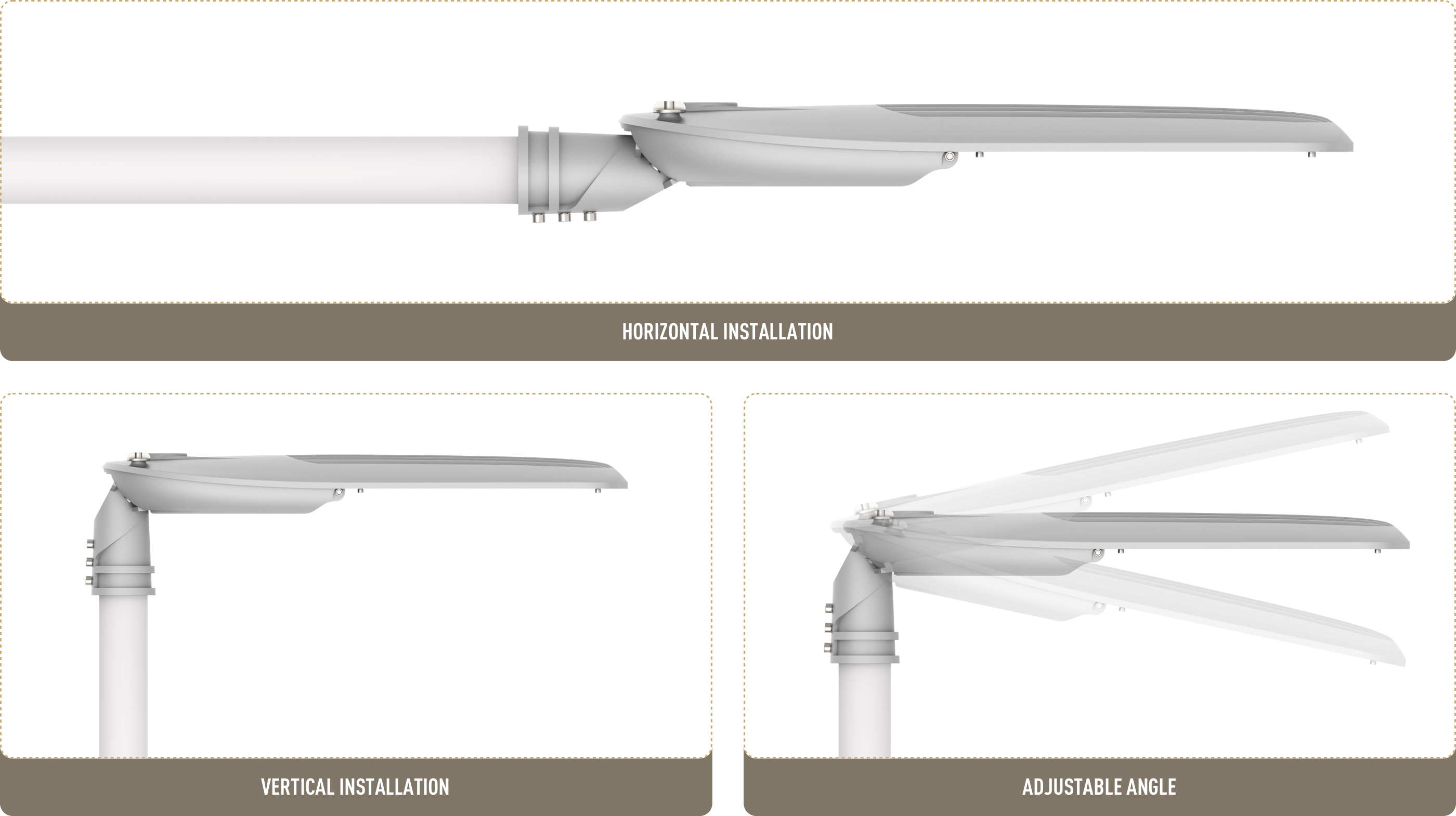

Installation Method

The luminaires are designed for both horizontal and vertical installation, with adjustable angles to accommodate varying lighting environments and meet diverse illumination requirements.

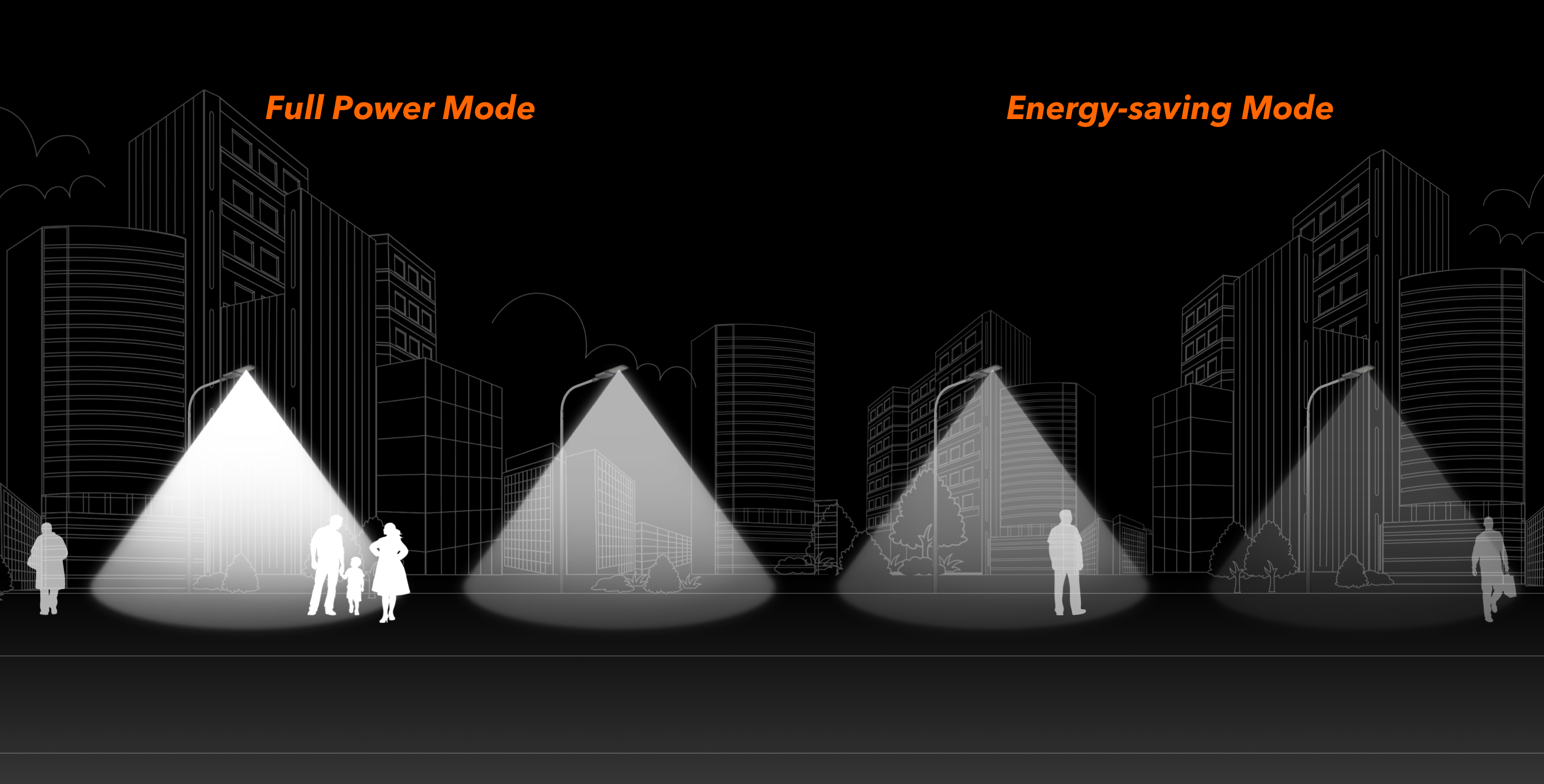

Intelligent Control System

The intelligent control system automatically adjusts output power according to preset modes, extending the luminaire's operational duration while ensuring continued functionality during prolonged rainfall.

For example
When operating at full power, the luminaire's output power specification is as follows:
Upon detecting human presence, it will reach 100% full-power brightness; when no presence is detected, it will maintain 50% brightness.

When the luminaire's battery charge is low, it will enter energy-saving mode. Upon detecting proximity, it will activate at 50% full-power brightness; when no presence is detected, brightness will be reduced to 25%.
