High-quality galvanized steel/aluminum alloy construction
· High-quality galvanized steel/aluminum alloy construction.
· Anti-corrosion, anti-aging and weather-resistant.
· In line with IECEx, ATEX and other international certification standards
· Easy installation and maintenance
· Flexible customization: optional height from 3m to 12m, various flange sizes and surface treatments.
| Item | Specification |

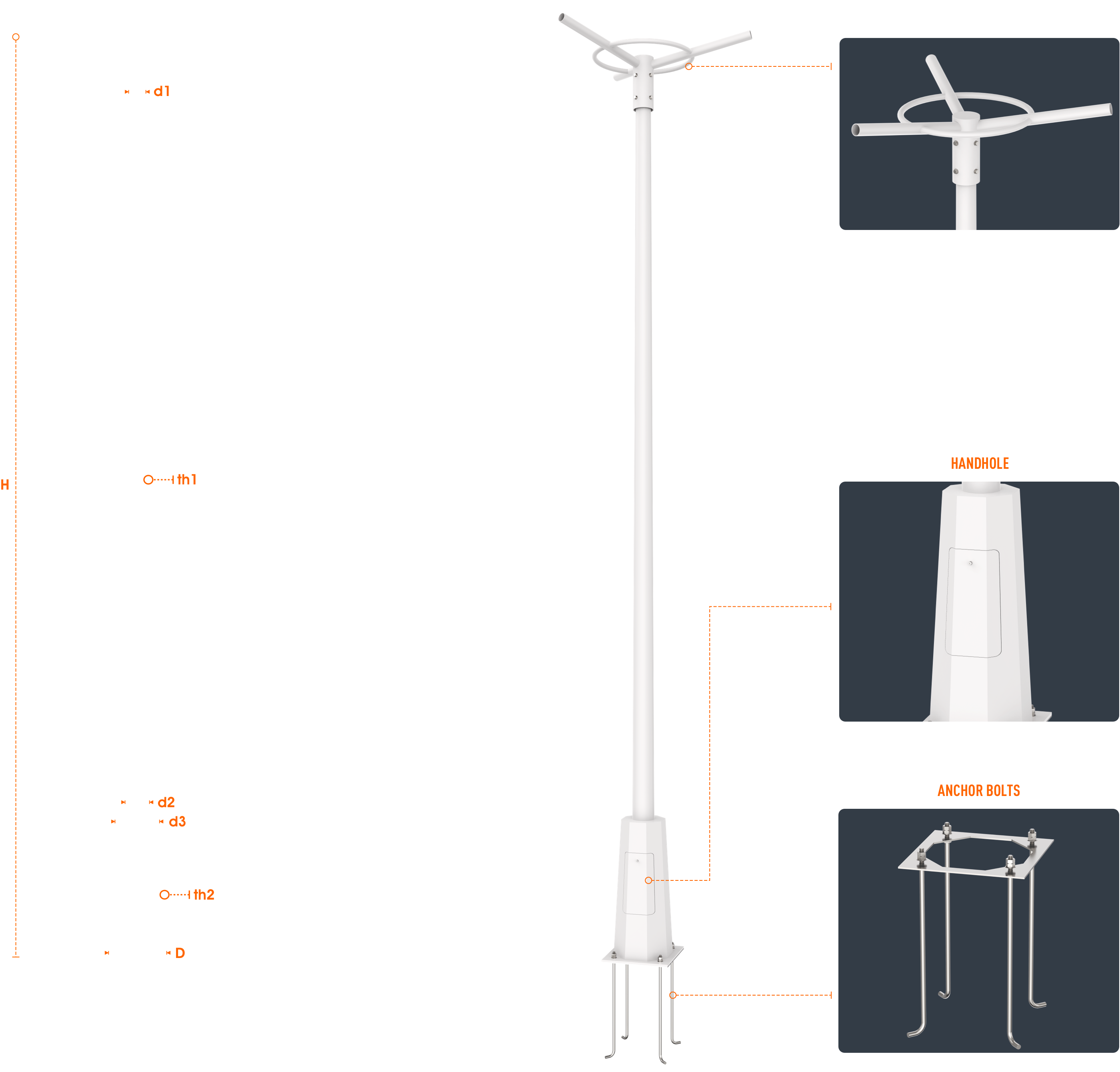

| Pole Type | Tapered / Octagonal / Polygonal explosion-proof lighting pole |
| Height | 3m, 4m, 5m, 6m, 8m, 10m, 12m, 15m (customizable) |
| Material | High-strength carbon steel Q235 / Q355; optional stainless steel 304/316L |
| Wall Thickness | 2.5mm ~ 12mm (depends on height and wind load) |
| Top Diameter | Φ60mm ~ Φ140mm |
| Base Diameter | Φ140mm ~ Φ600mm |
| Flange Plate | Thickness 10~25mm, with mounting holes |
| Surface Treatment | Hot-dip galvanized inside & outside + polyester powder coating |
| Anticorrosion Grade | WF1 / WF2 |
| Wind Resistance | 35~45m/s (Grade 10~12 typhoon) |
| Working Temperature | -40°C ~ +65°C |
