Stable. Versatile. Built for Wide-Area Illumination.

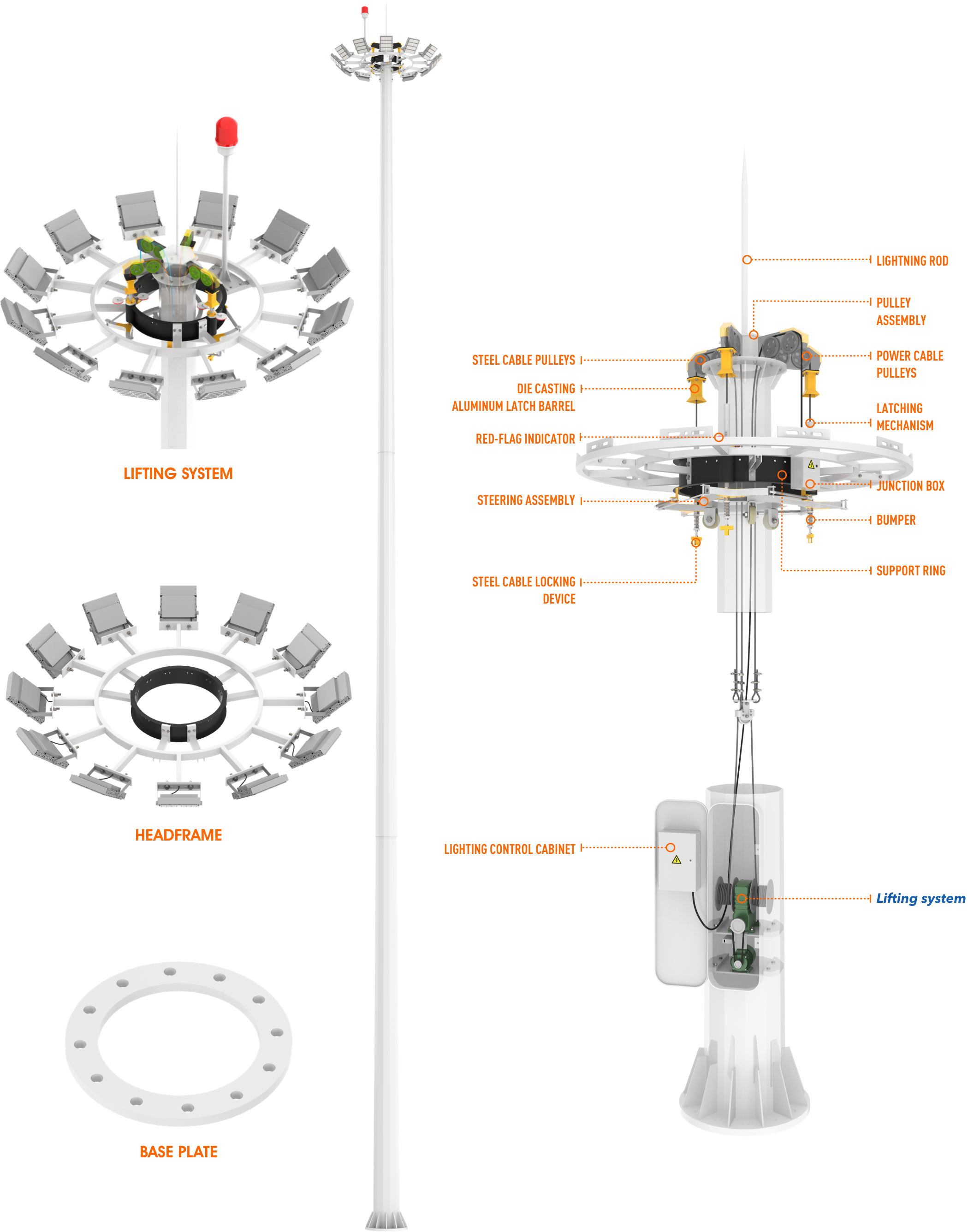

Advanced Lifting Mechanisn And Control System
The rectangular cavity at the base of the lifting pole lamp houses the electrical control system, electric motor, and other lifting components. By situating the control system inside the lamp post, potential malfunctions caused by harsh outdoor conditions during lifting and lowering operations are effectively minimized. The system is equipped with multiple circuit overload protection devices, ensuring reliable operation.
Lifting System Components
The lifting mechanism includes an electric motor, an electromagnetic brake-type worm gear reducer, a safety coupling, main and auxiliary wire ropes, a rope splitter, and a movable pulley group. This combination drives the lifting and lowering of the lamp disc. The worm gear reducer offers high self-locking capacity, compact transmission, and a large transmission ratio. To further reduce torque and enhance efficiency, a movable pulley system is integrated, achieving a lifting speed of under 0.2 meters per second.
Enhanced Electrical Conductivity
Copper-based silver plating is widely utilized as the conductive material in the system’s circuits to guarantee excellent electrical contact, enhancing overall performance.
Security Features
The lifting and lowering of the lamp panel are controlled by reversing the motor’s rotation. For enhanced security and theft prevention, the rectangular cavity is fitted with a sealed door equipped with a custom-designed lock.

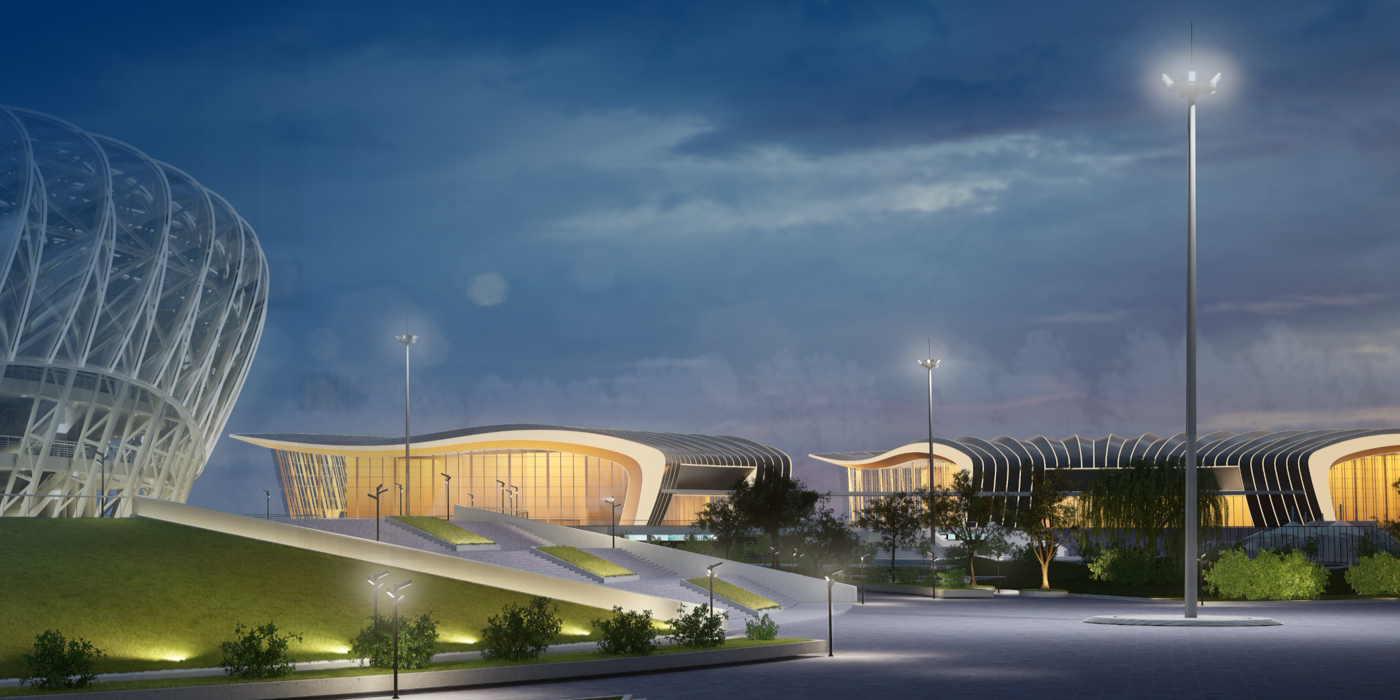

Height Advantage
The significant height of high pole lights allows them to illuminate larger areas, enhance road lighting quality, and improve nighttime driving safety.
Excellent Lighting Performance
Modular head frames allow flexible mounting of different light angles, brands, and layouts—ensuring that every lighting project meets exact photometric requirements.
Structural Stability
Designed with careful consideration of wind and earthquake resistance, high pole lights feature a stable and reliable structure, ensuring dependable operation even in harsh environments.
Aesthetic Appeal
The elegant and refined design of high pole lights seamlessly integrates with surrounding environments, enhancing the visual appeal and overall image of the city.
| Item | Specification |
| Product Name | Dodecagonal Tapered Steel High mast |
| Pole Height | 15m ~ 40m (customized according to project needs) |
| Pole Shape | Tapered Octagonal |
| Material | Q355 Hot-Dip Galvanized Steel |
| Pole Shaft Thickness | 4mm ~ 12mm |
| Hinge Mechanism | fold-down system with locking pin or internal hinge box |
| Operation Method | Manual operation with counterweight arm / winch / locking bar |
| Surface Treatment | Hot-Dip Galvanization (≥85μm), Optional Powder Coating |
| Galvanization Standard | ISO1461 / ASTM A123 |
| Wind Load Capacity | Up to 130 ~ 160 km/h (customizable) |
| Mounting Type | Base plate with anchor bolts / direct burial |
| Lighting Fixture | Compatible with LED street lights / floodlights / solar heads |
| Application Areas | Streets, parking lots, parks, bridges, coastal roads, rural areas |
| Maintenance Access | No lifting equipment needed – fold-down design enables ground-level servicing |
| Welding Standard | AWS D1.1 (Internal & External Seam Welding, Flaw Detection Certified) |
| Pole Joint | Single-section or multi-section (slip joint / flange connection) |
| Design Life | >25 years with proper maintenance |
| Certification | CE / ISO9001 / SGS |
| Operating Temperature | -40°C to +70°C |
| Warranty | 2 ~ 5 years (based on project requirements) |
