Customizable height from 3m to 30m
· Customizable height from 3m to 30m
· Materials: hot-dip galvanized steel, stainless steel, aluminum alloy
· Shapes: round, polygonal (octagonal, hexagonal), tapered, straight
· Surface treatment: galvanized, powder coating, painting in any color
· Built-in wiring holes, flanges, hand holes and reinforced base
· High wind resistance, strong durability, anti-corrosion and long service life
· Compatible with street lights, floodlights, high mast lights, landscape lights, etc.
| Item | Specification |

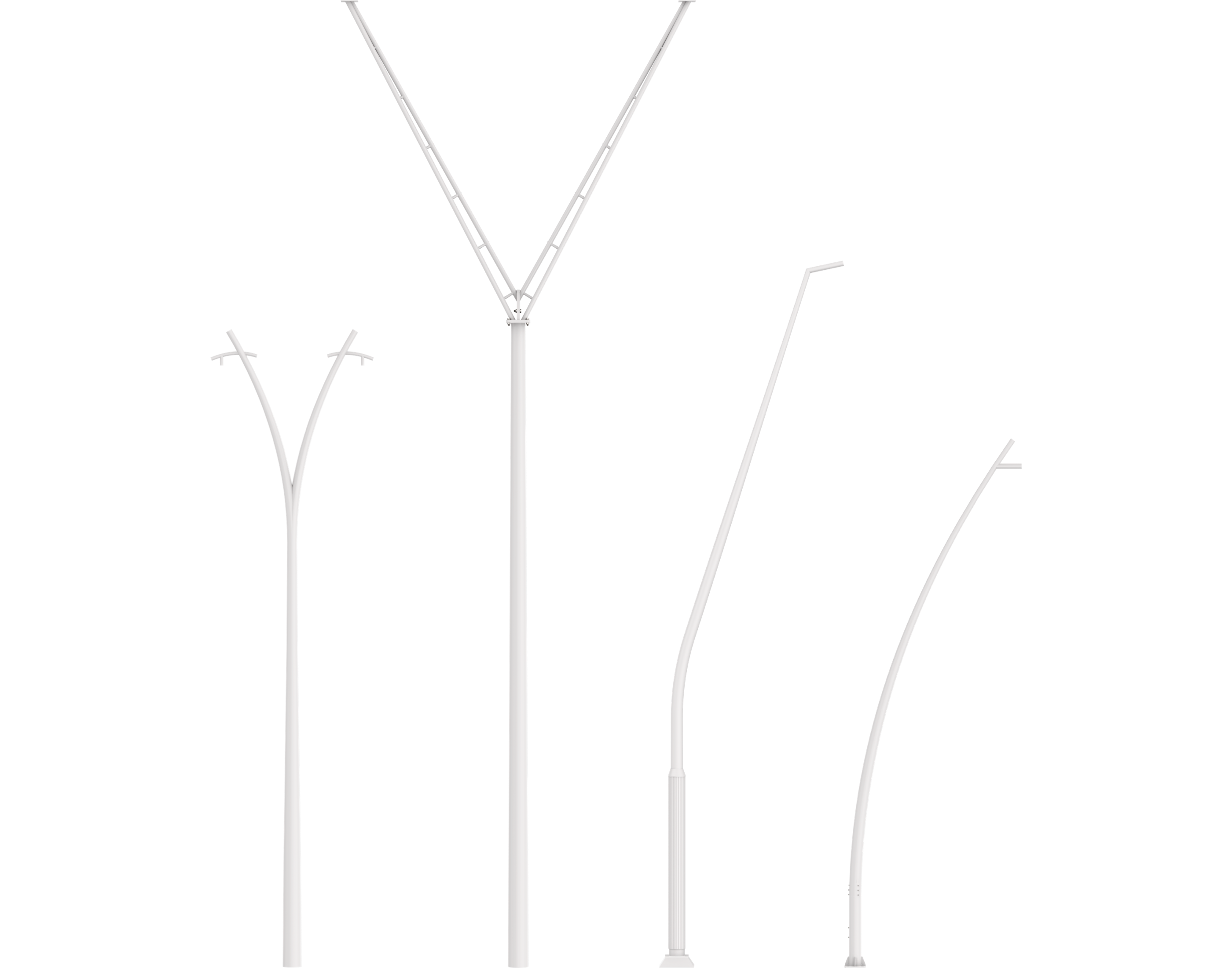

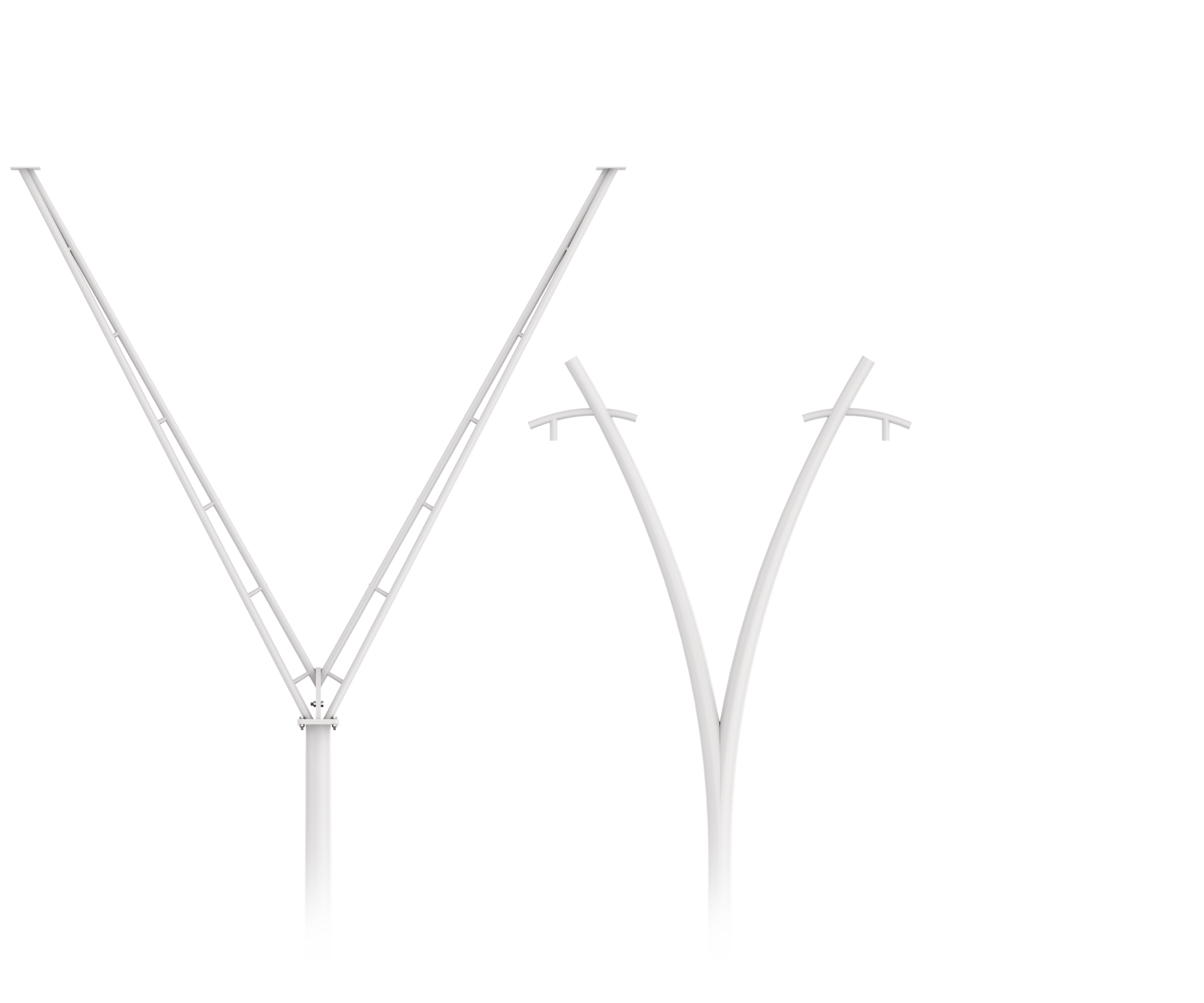

| Pole Type | Tapered round pole, polygonal (octagonal/hexagonal) pole, single arm, double arm, multiple arms, cantilever, telescopic, high-mast type. |
| Height | 3m, 4m, 5m, 6m, 8m, 10m, 12m, 15m, 18m, 20m~40m (customizable as required) |
| Material | Q235 / Q355 carbon steel, stainless steel 304/316L, aluminum alloy |
| Wall Thickness | 2.0mm ~ 12.0mm (determined by height, load and wind load) |
| Top Diameter | Φ60mm ~ Φ200mm |
| Base Diameter | Φ140mm ~ Φ800mm |
| Base Flange Thickness | 12~30mm; with pre-drilled anchor bolt holes |
| Arm Length & Style | 0.5m–3.0m; single side, double side, upward/downward bending, adjustable angle |
